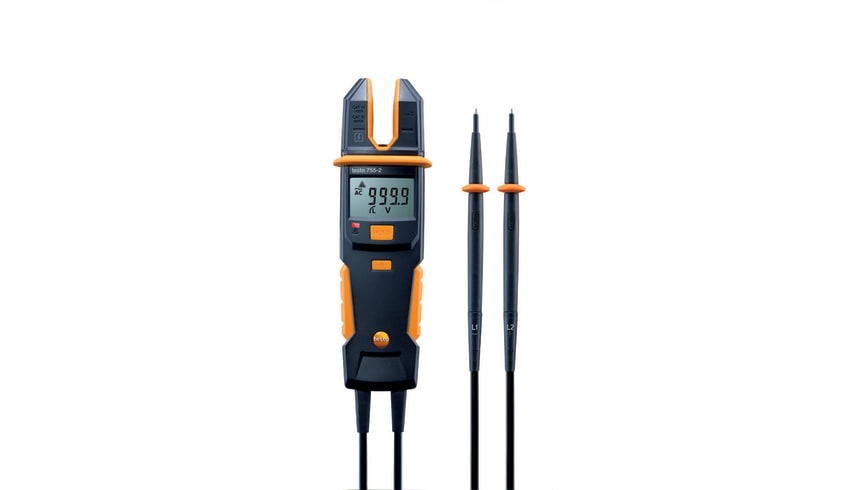

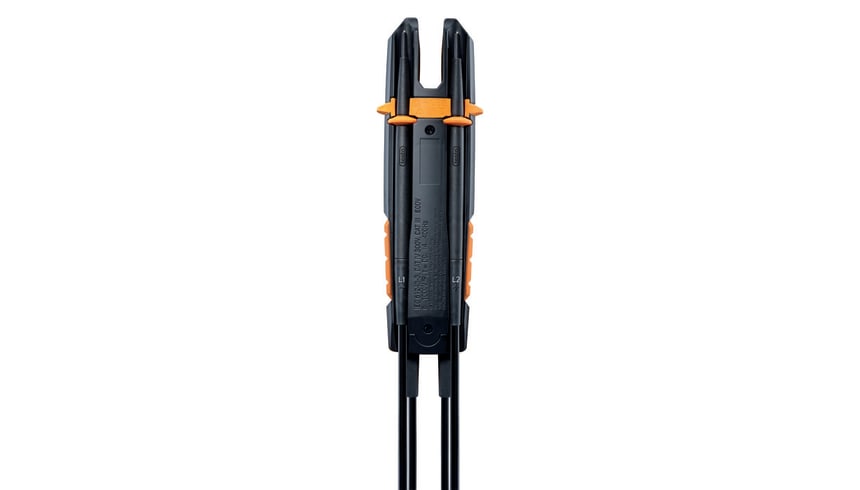

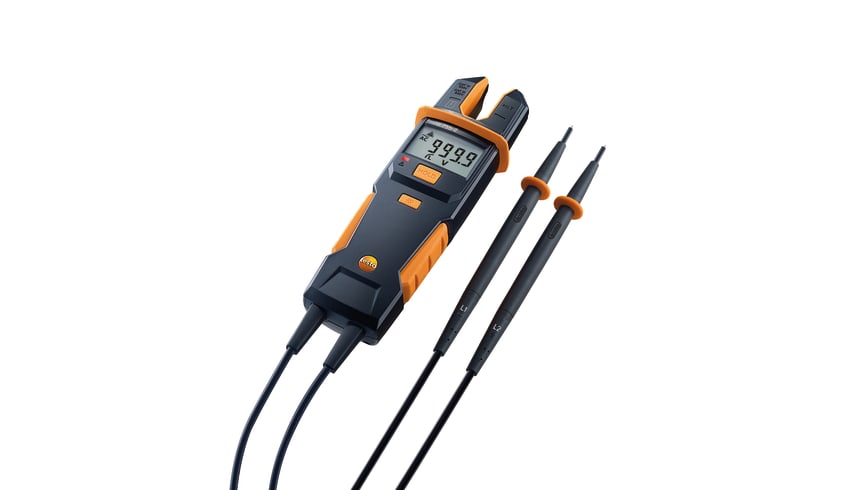

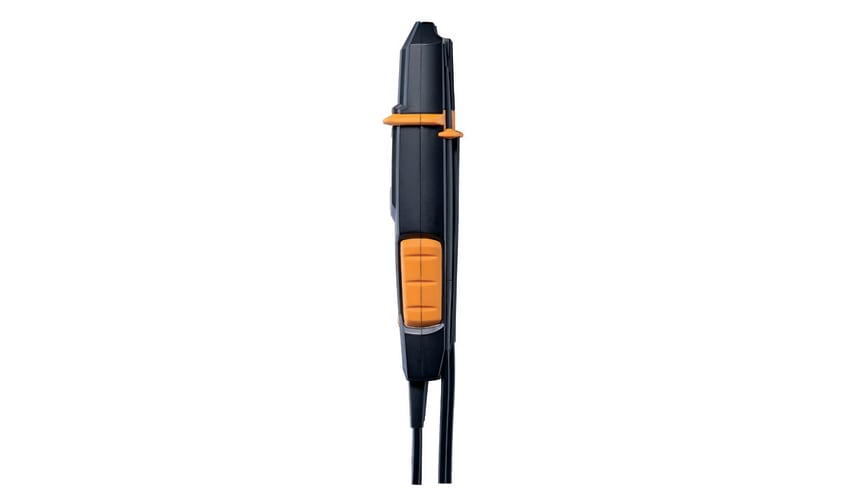

    testo 755-2 - current/voltage tester

    0590 7552
    AED 660.00
  1. Simple, reliable operation with automatic selection of measurement parameters
  2. DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
  3. Single pole voltage testing to determine quickly whether conductors are live
  4. Voltage range up to 1,000 V
    5. All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.
    With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.

    Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.

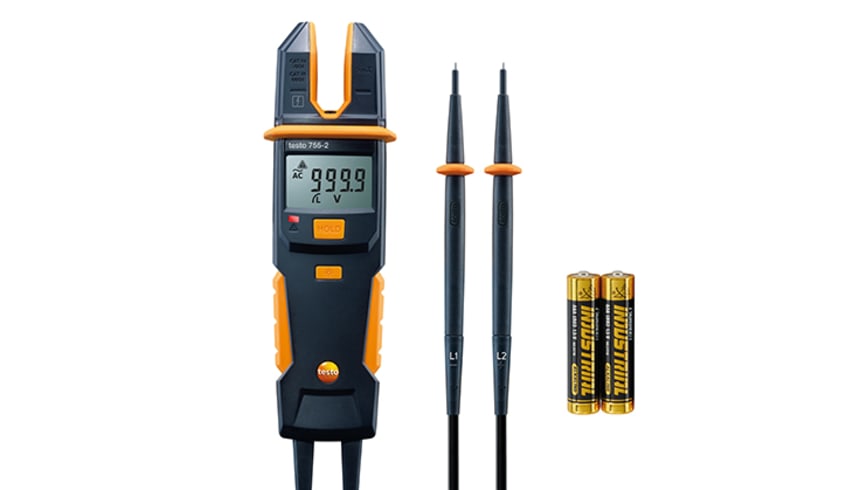

    testo 755-2 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.

    DC voltage

    Measuring range
    6 to 1000 V
    Resolution
    0.1 V
    Accuracy
    50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
    6 to 49.9 V: ± (1.5 % of mv + 5 Digits)

    AC voltage

    Measuring range
    6 to 1000 V
    Resolution
    0.1 V
    Accuracy
    50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
    6 to 49.9 V: ± (1.5 % of mv + 5 Digits)

    AC current

    Measuring range
    0.1 to 200 A
    Resolution
    0.1 A
    Accuracy
    ± (3 % of mv + 3 Digits)

    Ideal for voltage testing and current measurement

    • Automatic measurement parameter detection, voltage range up to 1000 V, automatic switch-on, exchangeable measuring tips, integrated torch for measuring point illumination

    Overview of applications

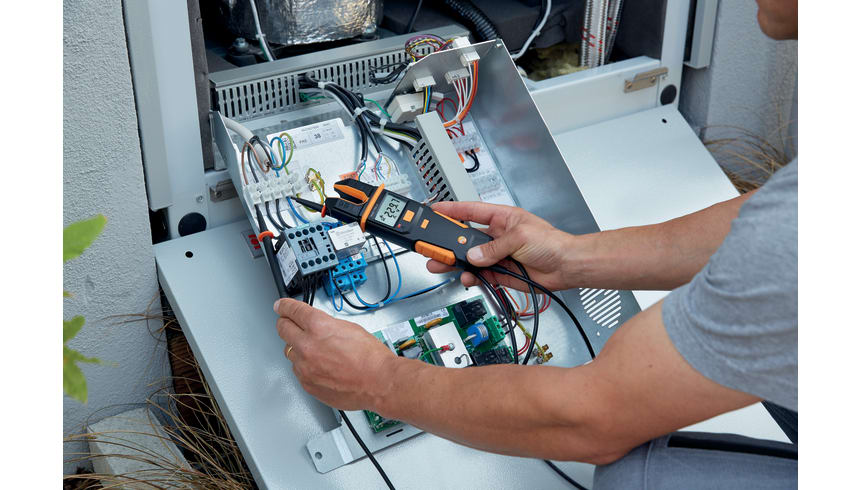

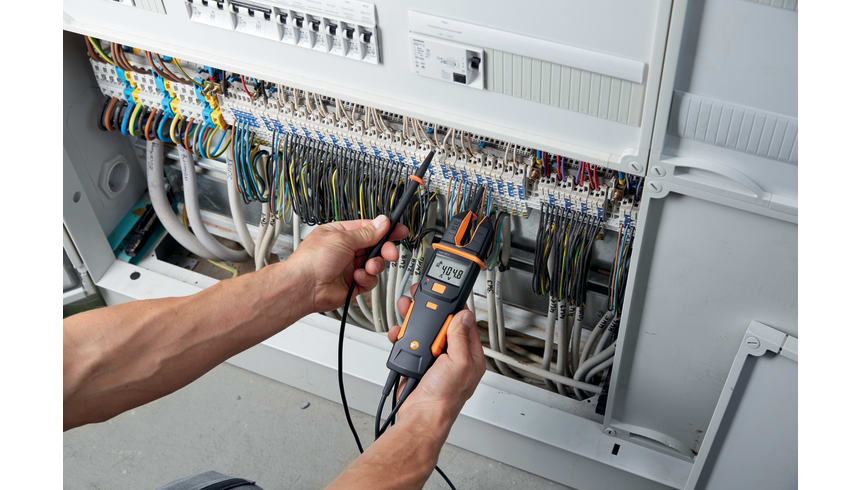

    • Test electrical circuits or systems for voltage or de-energization (according to DIN EN 61243-3:2010)
    • Current consumption measurement
    • Checking the rotating magnetic field
    • Single pole voltage testing to determine whether conductors are live
