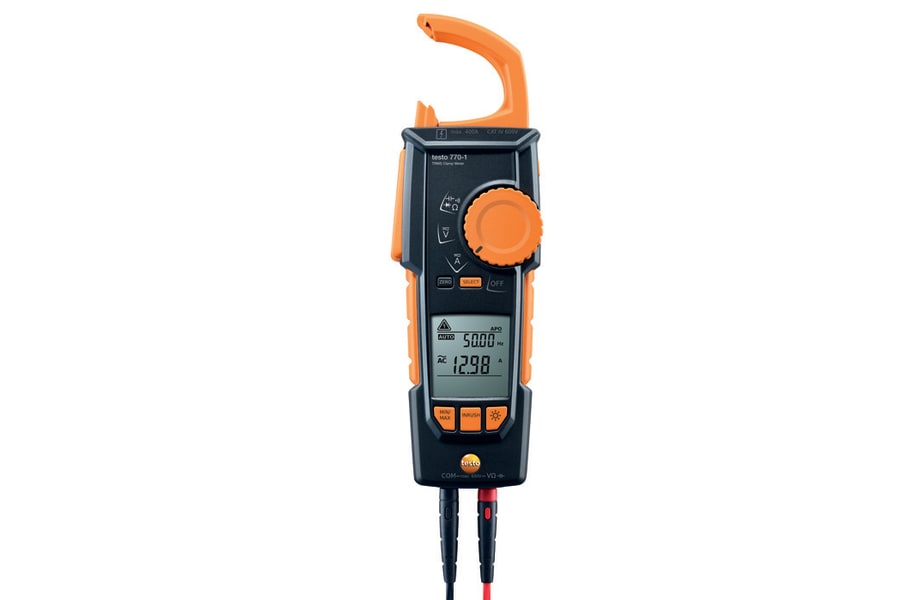

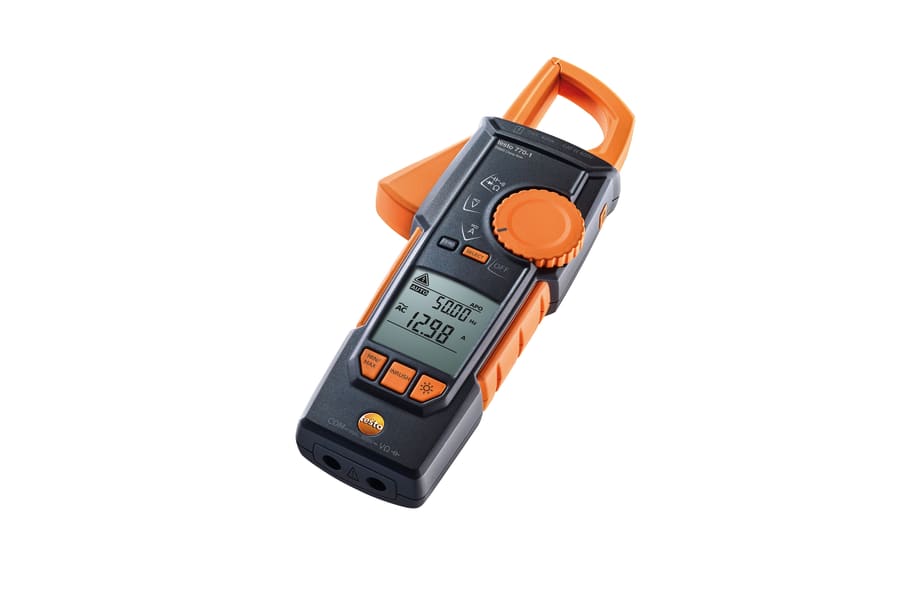

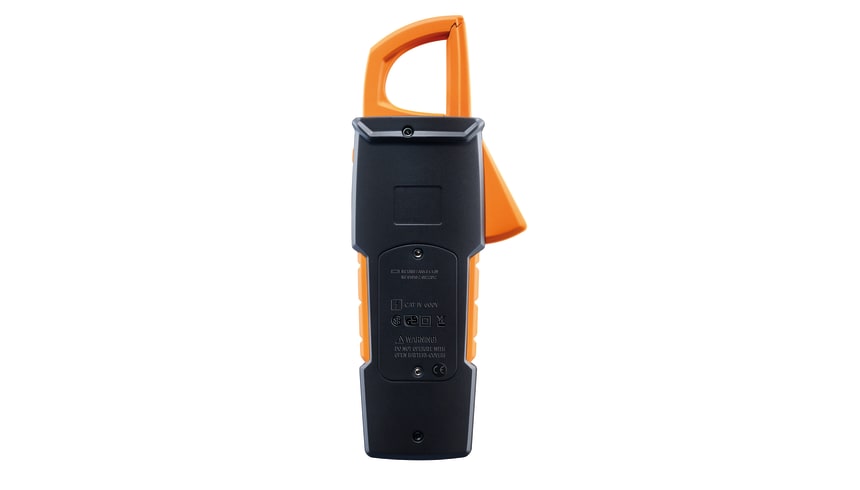

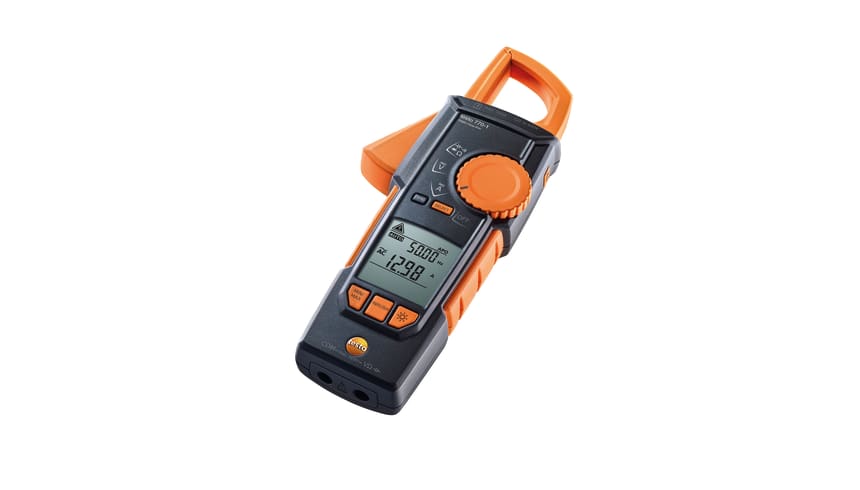

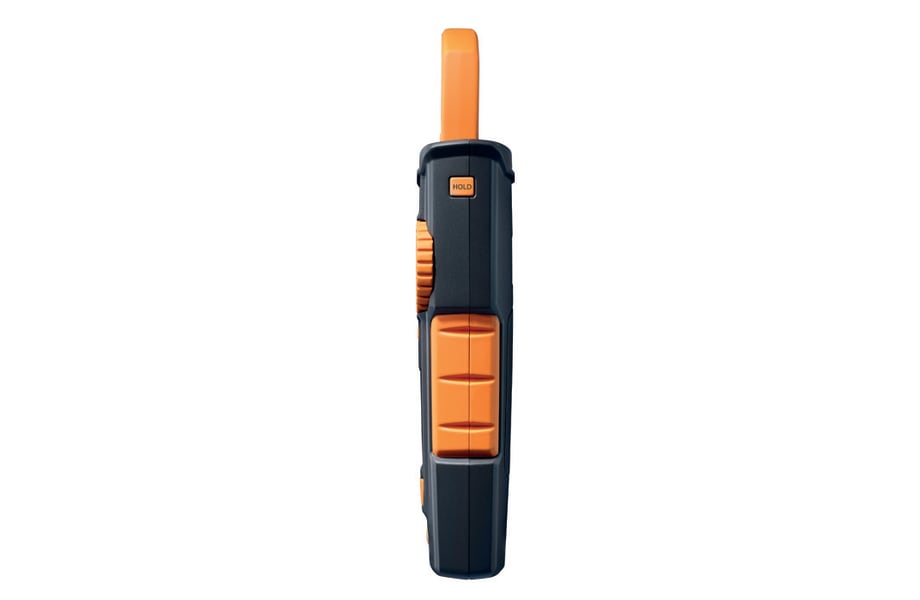

    testo 770-1 - Clamp meter

    Product no. 0590 7701
    testo 770-1
    testo 770-1
    testo 770-1
    testo 770-1
    testo 770-1
    2 mm standard measuring cables (angled plug) 0590 0010
    testo 770-1
    testo 770-1
    Your advantages
  1. Fully retractable pincer arm for maximum flexibility
  2. Auto AC/DC
  3. Large two-line display
  4. Measures the common electrical parameters
  5. The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

    Description

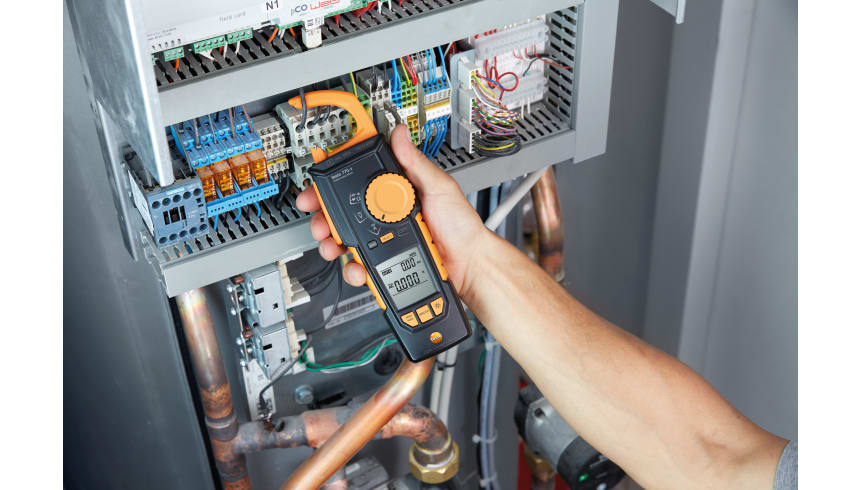

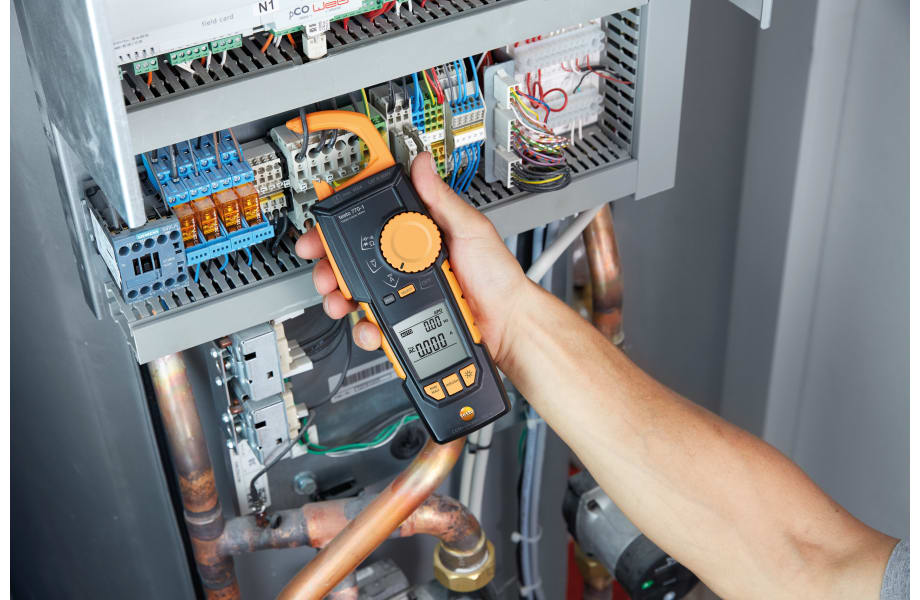

    This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.

    The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

    Delivery Scope

    testo 770-1 TRMS clamp meter, including battery, 1 set of measuring cables (0590 0010),  instruction manual.

    Technical data

    DC voltage

    Measuring range
    1.0 mV to 600.0 V
    Resolution
    max. 0.1 A
    Accuracy
    ± (0.8 % of mv + 3 Digits)

    AC voltage

    Measuring range
    1 mV to 600 V
    Resolution
    max. 1 mV
    Accuracy
    ± (1.0 % of mv + 3 Digits)

    DC current

    Measuring range
    0.1 to 400 A
    Resolution
    max. 0.1 A
    Accuracy
    ± (2.0 % of mv + 5 Digits)

    Accessories

    Accessories

  6. Accessories
    Safety crocodile clips 0590 0008
    Safety crocodile clips, 1 set, 10 A, CAT III 600 V
      Product no.:
      0590 0008
      AED 90.00
    • Accessories
      Crocodile clips 0590 0009
      Crocodile clips, 1 set, 10 A, CAT IV 600 V / CAT III 1000 V
        Product no.:
        0590 0009
        AED 90.00
      • Accessories
        2 mm standard measuring cables (angled plug) 0590 0010
        Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, CAT II 1000 V
          Product no.:
          0590 0010
          AED 90.00
        • Certificates

          Transport and Protection

        • Transport and Protection
          Transport bag 0590 0017
          Transport bag, dimensions: 270 x 150 x 75 mm
            Product no.:
            0590 0017
            AED 120.00
          • Applications

            Ideal for non-contact current measurement on tightly packed cables

            • Fully retractable pincer arm, auto AC/DC, large two-line display, true root mean square (TRMS) measurement, starting current measurement

            Overview of applications

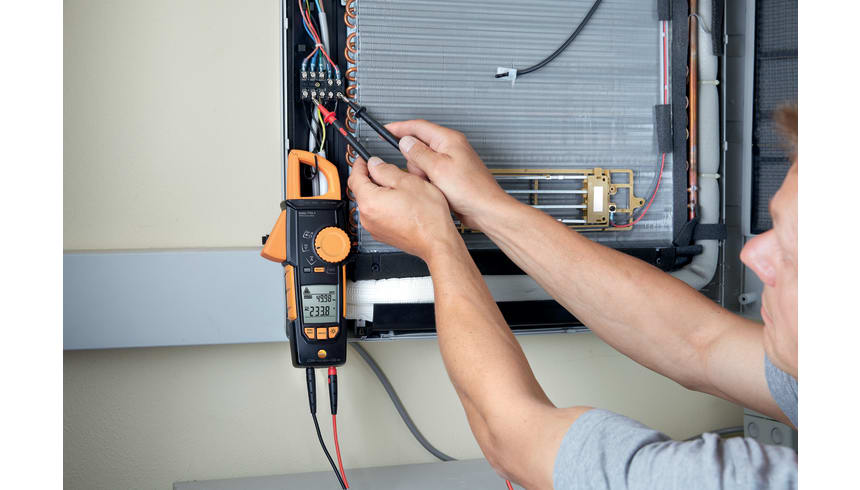

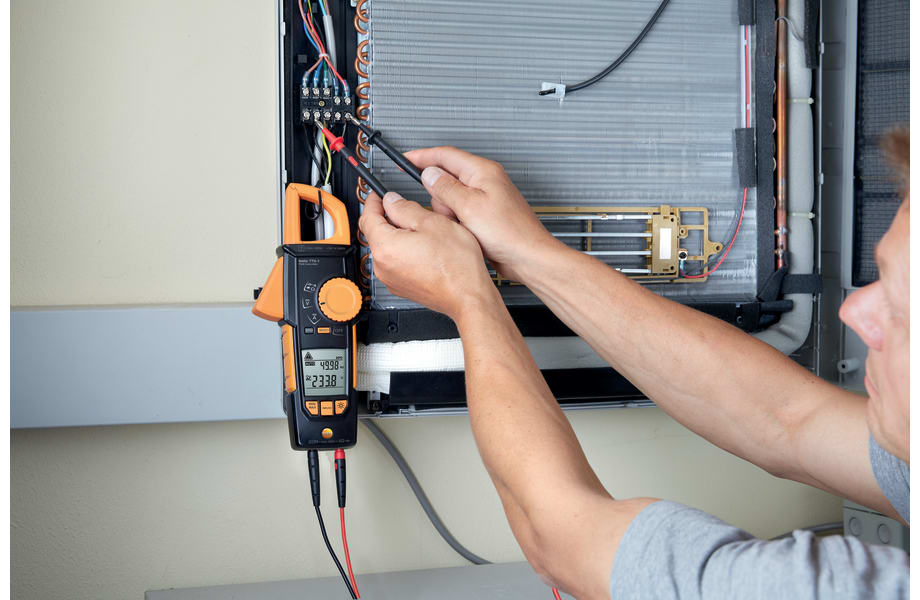

            • Current consumption measurement, testing voltage supply in live wires, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings
