    testo Smart Probes AC & refrigeration test kit - with smartphone operation

    0563 0002 02
  1. Fast and simple installation of the testo 549i high-pressure measuring instrument directly onto the pressure connection
  2. Low refrigerant loss thanks to hoseless application
  3. Automatic calculation of evaporation and condensation temperatures and simple selection from more than 80 refrigerants via testo Smart App
  4. Large testo HVAC softcase: store additional testo Smart Probes for further applications in the heating, air conditioning and ventilation field safely
  5. The testo Smart Probes AC & refrigeration test kit is ideally suited for testing air conditioning and refrigeration systems and installing them. The large testo HVAC softcase enables the measuring instruments to be conveniently transported and ensures that they are always to hand when they are needed.

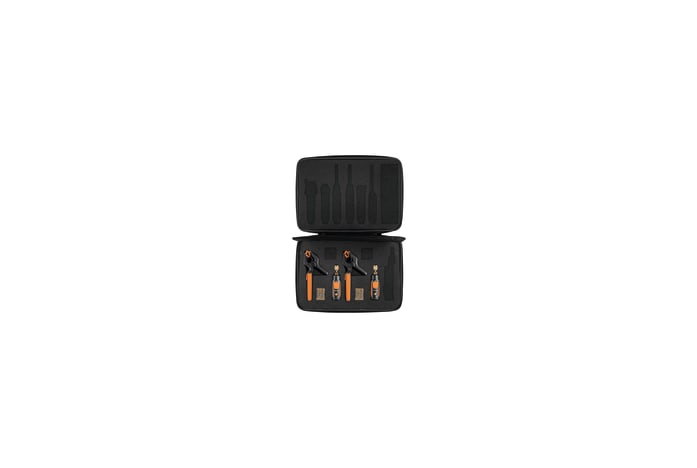

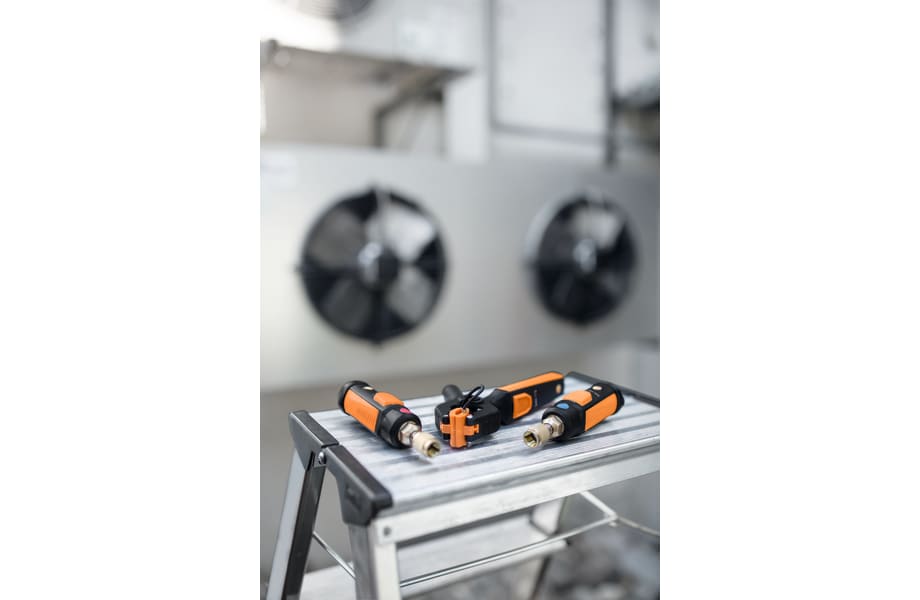

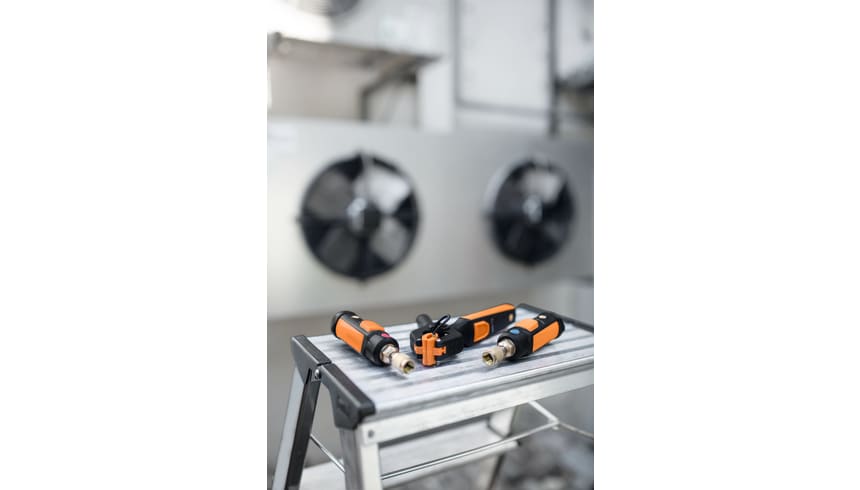

    This compact and easily transportable kit contains the most important measuring instruments for refrigeration engineers: the testo 549i high-pressure measuring instrument and the testo 115i clamp thermometer (two of each), along with a testo softcase for up to 7 further testo Smart Probes.



    Advantages of the testo Smart Probes AC & refrigeration test kit

    The measuring instruments can be connected quickly and easily to your smartphone or tablet via Bluetooth®. This means they enable the App-controlled testing of heat pumps, refrigeration and air conditioning systems. Operation of the measuring instruments is not only state-of-the-art, but also intuitive. Because both the testo 115i and the testo 549i can be quickly and easily fitted directly onto the temperature measuring point or pressure connection. They also make it considerably easier to work on measuring points that are a long distance apart, thanks to Bluetooth connection to a smartphone or tablet. Also practical: no hoses are required for measurements, meaning that only very little refrigerant is lost. You can comfortably transport up to 11 testo Smart Probes in the large testo HVAC softcase, and they are always to hand when you need them.



    Practical App with special functions and for measurement data analysis on your smartphone or tablet

    Measurement data is transmitted via Bluetooth from the measuring instrument to the testo Smart App and can be read out conveniently on mobile terminal devices – either as a diagram or in table format. In addition, the App offers practical functions, such as the automatic calculation of superheating and subcooling, or the calculation of the cooling or heating output of more than 80 refrigerants. Finally, the measurement data report can be sent directly by e-mail as a pdf or csv file (e.g. with Excel). This saves you time, allowing you to further increase your efficiency.

    System requirements:

    • iOS 8.3 or later
    • Android 4.3 or later
    • Bluetooth 4.0

    • 2 x testo 115i clamp thermometers with smartphone operation, including batteries and calibration protocol (0560 1115)

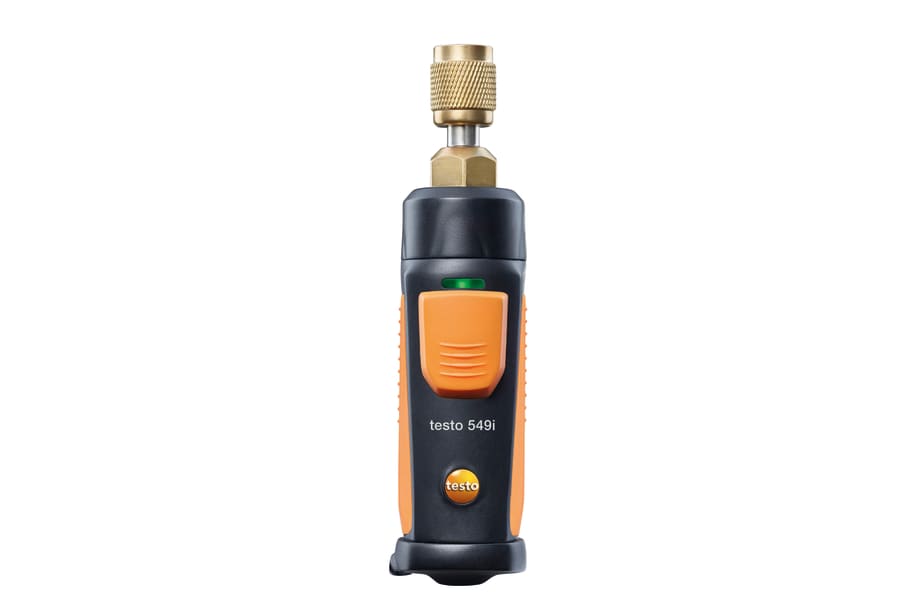

    • 2 x testo 549i high-pressure measuring instruments with smartphone operation, including batteries and calibration protocol (0560 1549)
    • testo HVAC softcase, including foam insert for up to 7 further testo Smart Probes (0516 0283)

    General technical data

    Weight
    11718.0 g
    Dimensions
    183 x 90 x 30 mm (testo 115i)
    125 x 32 x 31 mm (testo 549i)
    400 x 290 x 80 mm (testo HKL softcase)
    Operating temperature
    -20 to +50 °C
    Product-/housing material
    Plastic
    System requirements
    requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
    Product colour
    Black
    Battery type
    3 micro batteries AAA (per Smart Probe)
    Battery life
    150 h (testo 115i); 250 h (testo 549i)
    Pressure media
    CFC, HFC, HCFC, N, H₂O, CO₂
    Storage temperature
    -20 to +60 °C

    Temperature - NTC

    Measuring range
    -40 to +150 °C
    Accuracy
    ±1.3 °C (-20 to -85 °C)
    Resolution
    0.1 °C
