    testo 417 - Digital 100 mm vane anemometer with App connection

    0563 0417
    $839.00 $922.90
    1

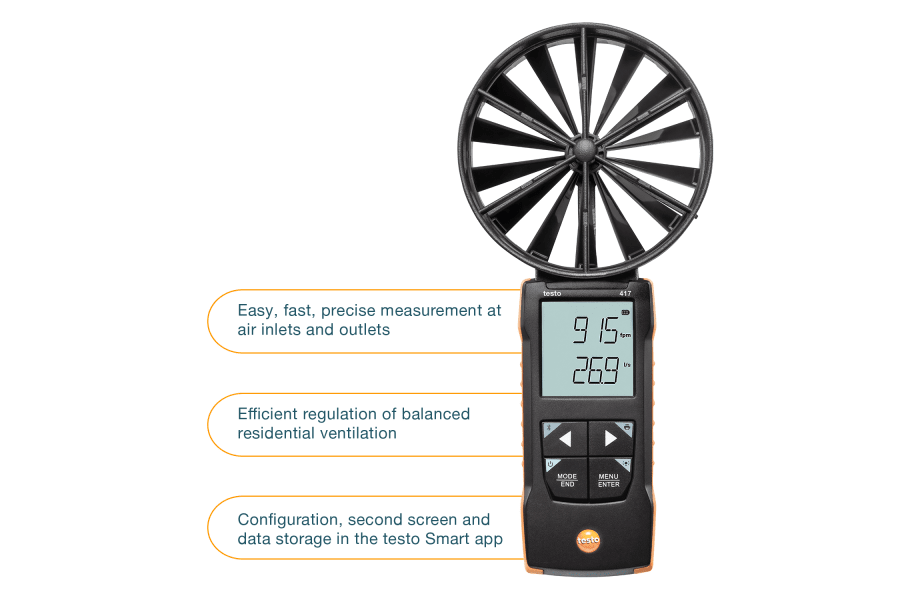

  1. Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
  2. Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
  3. Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
  4. Timed and point mean value calculation
    5. The compact 100 mm vane anemometer testo 417 is the ideal solution for simple, fast and precise determination of flow velocity and volume flow at air intake and outlet vents of air conditioning and ventilation systems. Adjustment for balanced residential ventilation or measurement at swirl outlets is also child's play with the testo 417 kits including funnel and flow straightener. Thanks to the connection to the testo Smart App, configuration, display (also as second screen) and storage as well as documentation of the measured values are dealt with quickly and without any complications.
    • not available

      testo Smart-App

      The App for all applications. Multifunctional. Continuously up to date. Free.

      Find out more

    • not available

      Air balancing – time saving up to 30%

      New PRO measuring program in the testo Smart App

      Find out more

    • not available

      testo 417 - Volume flow measurement at ventilation outlets

      To the video

    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    The compact vane anemometer testo 417 was developed to make it as easy as possible for you to take measurements on air inlets and outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App. In addition, the App not only supports you in configuring the measuring instrument and takes over display, storage and documentation of the measured values – it also turns your smartphone into a second display. testo 417 is also available in two practical kits: The testo 417 Kit 1 includes two measuring funnels for plate outlets and ventilation grilles. These can be easily attached to the vane, covering a wide range of outlet sizes and formats. In addition to the two measuring funnels, the testo 417 Kit 2 includes a volume flow straightener to achieve precise results even at swirl diffusers.

    • testo 417 - 100 mm vane anemometer with App connection
    • Transport bag
    • Calibration protocol
    • 3 x AA batteries

    Temperature - NTC

    Measuring range
    0 to +50 °C
    Accuracy
    ±0.5 °C
    Resolution
    0.1 °C

    Velocity - Vane

    Measuring range
    0.3 to 20 m/s
    Accuracy
    ±(0.1 m/s + 1.5 % of mv)
    Resolution
    0.01 m/s

    Volume flow

    Measuring range
    0 to +99999 m³/h
    0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
    0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
    Resolution
    0.1 m³/h (0 to +100 )
    1 m³/h (Remaining Range)
