testo 300 kit 1 - Flue gas analyzer (O2, CO up to 4,000 ppm)
Product no. 0564 3002 70
testo 300 kit 1 - Flue gas analyzer (O2, CO up to 4,000 ppm)
Product no. 0564 3002 70Your advantages
Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
Including O2 and CO sensor up to 4,000 ppm
Large 5-inch HD display – see all the system's measuring values at a glance

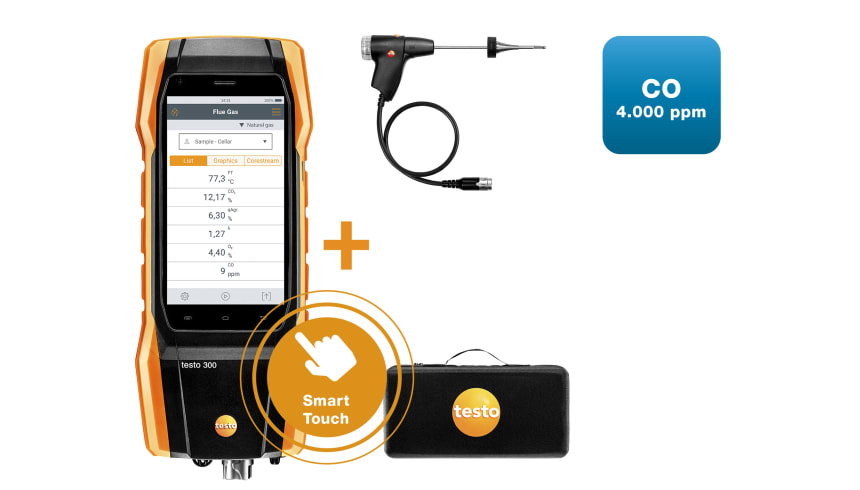

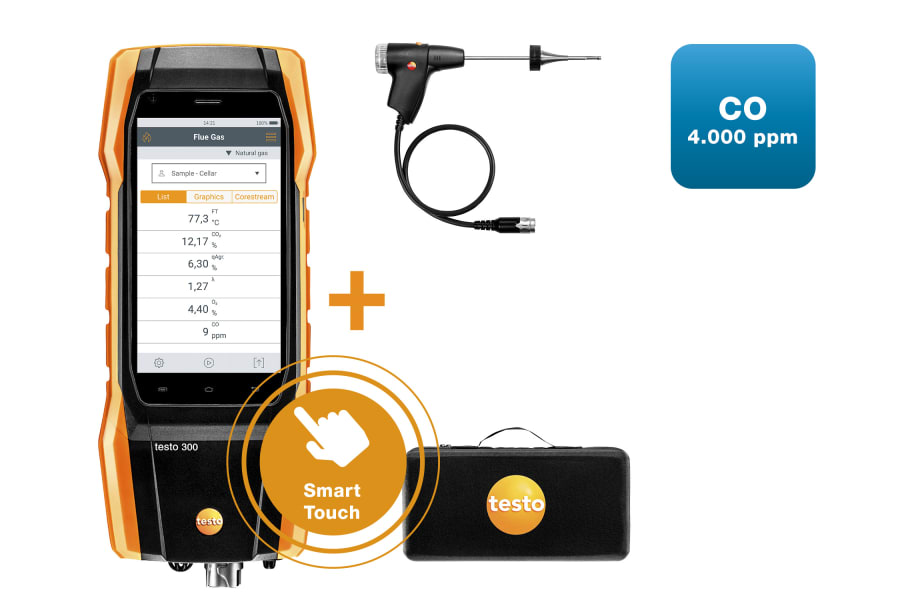

In the kit: testo 300 flue gas analyzer, including O2 and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, spare dirt filters, EasyHeat software, instrument case
With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 flue gas analyzer is supplied with O2 and CO sensor up to 4,000 ppm, basic flue gas probe, instrument case and practical accessories.
Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
Description
Delivery Scope
- testo 300 flue gas analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)
- USB mains unit, including cable (0554 1106)
- Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
- Spare dirt filters, compact probe; 10 off (0554 0040)
- Free download EasyHeat PC software (0554 3332)
- Instrument bag (0516 3001)
Details on kit components
Details on kit components
Product no.: 0633 3002 70
Details on kit components
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
Product no.: 0600 9740
Details on kit components
Spare particle filter, compact probe; 10 off
Product no.: 0554 0040
Technical data
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -40 to +1200 °C |
|---|---|
| Accuracy | ±0.5 % of mv (Remaining Range) ±0.5 °C (0.0 to +100.0 °C) |
| Resolution | 1 °C (Remaining Range) 0.1 °C (-40 to +999.9 °C) |
Differential Pressure - Piezoresistive
| Measuring range | -100 to +200 hPa |
|---|---|
| Accuracy | ±1 % of mv (+50.1 to +100.0 hPa) ±0.5 hPa (0 to +50.0 hPa) ±1.5 % of mv (+100.1 to +200 hPa) |
| Resolution | 0.01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | -9.99 to +40 hPa |
|---|---|
| Accuracy | ±0.02 hPa (+0.1 to +3.00 hPa) ±1.5 % of mv (3.01 to +40 hPa) ±0.005 hPa (+0 to +0.1 hPa) |
| Resolution | 0.001 hPa (0 to 0.1 hPa) 0.01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0.1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99.9 % |
|---|---|
| Resolution | 0.1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Flue gas CO (without H₂-compensation)
| Measuring range | 0 to 4000 ppm |
|---|---|
| Accuracy | ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) |
| Resolution | 1 ppm |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | -5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months |
| Memory | 1,000,000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | -20 to +50 °C |
| Charging temperature | 0 to +45 °C |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring Range | -50 to +50 Pa |
|---|---|
| Accuracy | ±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range) |
| Resolution | 0.1 Pa |
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1.5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 1400 g |
|---|---|
| Dimensions | 256 x 516 x 135 mm ((LxWxH)) |
| Product colour | Black |
General technical data
| Weight | 144 g |
|---|---|
| Dimensions | 85 x 55 x 90 mm LxWxH |
| Product colour | Black |
| Cable length | 2 m |
| Power supply | 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea |
Sensor
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
Product no.:
0632 1272
0632 1272
MYR 2376.69
Flue gas probes
Flue gas probes
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Product no.:
0600 9760
0600 9760
Price on request
Flue gas probes
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Product no.:
0600 9761
0600 9761
Price on request
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
Product no.:
0600 9762
0600 9762
Price on request
Further probes
Further probes
Dual wall clearance probe for O2 supply air measurement
Product no.:
0632 1260
0632 1260
Price on request
Further probes
Solid fuel kit - including probe shaft and adapter
Product no.:
0600 9765
0600 9765
Price on request
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
Product no.:
0615 5505
0615 5505
MYR 341.32
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
Product no.:
0615 5605
0615 5605
MYR 1225.10
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
Product no.:
0615 1212
0615 1212
MYR 493.70
Sets
Sets
Sets
testo 300 kit 1 with printer: Flue gas analyzer (O2, CO up to 4,000 ppm)
Product no.:
0564 3002 71
0564 3002 71
Price on request
Sets
testo 300 kit 1: Flue gas analyzer (O2, CO up to 4,000 ppm)
Product no.:
0564 3002 70
0564 3002 70
Price on request
Accessories
Accessories
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
Product no.:
0554 0307
0554 0307
MYR 774.07
Accessories
Free download: testo EasyHeat PC software
Product no.:
0554 3332
0554 3332
Price on request
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
Product no.:
0516 3300
0516 3300
MYR 606.32
Certificates
Certificates
ISO flue gas calibration certificate for flue gas analyzers; calibration at 6 measuring points: O2: 2.5 vol% / CO: 100 ppm / CO: 1000 ppm / NO: 800 ppm / NO2: 100 ppm / SO2: 1000 ppm
Product no.:
0520 0003
0520 0003
Price on request
Measurement cells
Measurement cells
CO sensor (without H2 compensation) with 4-year warranty
Product no.:
0393 0051
0393 0051
Price on request
Measurement cells
CO sensor, (H2-compensated) with 4-year warranty
Product no.:
0393 0101
0393 0101
Price on request
Measurement cells
NO sensor
Product no.:
0393 0151
0393 0151
Price on request
Applications
Flue gas measurement on heating systems
Ideal for measurements involving heating systems:
- high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
- gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*
