    The testo 890 Thermal Imager for Research and Development

    Smart App

    Efficient development processes and fast troubleshooting in research and development

    Are you aware of everything you can measure using a thermal imager in the research and development field?

    A highly sensitive testo Thermal Imager enables:

    • Targeted detection of predetermined breaking points

    • Determination of thermal anomalies in real time, monitoring cooling and heating processes

    • Performance of safety checks

    • Analysis of heat development and dissipation on circuit boards


    Find out more how testo Thermal Imagers can support you in thermally demanding development tasks.

    Applications in research

    Analyzing and optimizing

    Electronic components on circuit boards are getting smaller and circuit boards are becoming more compace. This means heat dissipation requirements are rising. How to save time and resources in development using a testo Thermal Imager:

    • Precise visualization of the smallest temperature distributions thanks to the minimum focusing distance of 4 inches

    • Fast and easy analysis of hot spots and heat dissipation

    • Optimization of heat dissipation

    Go to the Testo Thermal Imagers

    Process analysis package

    The optional process analysis package includes sequence storage. This allows you to record and save temperature developments at freely selectable intervals directly in the testo 890 – wirelessly and without a PC.

    The package also includes fully radiometric video measurement. It offers you the possibility of analyzing saved videos and sequences in the Testo IRSoft Software.
    You can also stream radiometric measurement data via online measurement into the analysis software at up to 25 Hz, and record sequences. This means that all changes are visible in the thermal image, even in fast-moving processes.
    In addition, the video measurement offers you the possibility of controlling the imager remotely, and of saving individual images either as a thermal image of a JPEG-file.

    Sequence storage and full radiometric video

    Process analysis package retrofit

    Do you already own a testo 890? If so, you can retrofit the process analysis package easily and conveniently.

    More information

    This is how it works in practice

    Application example

    Download

    Application Example: Quality assurance in electronics

    The heat development of electronic components on a circuit board can affect the function of adjacent assemblies and even lead to the malfunction of the whole circuit. With the testo 890 Thermal Imager, you can

    • Carry out detailed investigation of small components and fine structures in terms of their thermal behavior

    • Monitor heat development over longer periods of time and in different load conditions

    • Carry out simple, comprehensive analysis and documentation of thermal processes using testo IRSoft

    Find out how the testo 890 can enhance analyses in quality assurance and speed up optimization processes.

    Application example

    Download

    Application Example: Accelerating research and development

    Research and development departments have to design products and make them ready for the market in increasingly shorter timescales. To do this, problem areas must be detected at an early stage, comprehensively analyzed, and effectively optimized. With the testo 890 Thermal Imager, you can

    • Visualize and investigate fine structures and heat differences

    • Record and analyze thermal processes over longer periods of time

    • Transfer measuring values from the thermal images to temperature-time diagrams and export them as images or Excel files

    Find out how testing and development processes can be streamlined using the testo 890.

    Reference report

    Download

    Reference Report: Technical University of Vienna

    Rotor gears transmit power from the drive to the rotor and are therefore exposed to extreme mechanical stresses. Scientists from the Technical University of Vienna use the testo 890 Thermal Imager for numerous testing and optimization tasks:

    • Thermal anomalies on gear wheels, bearings, and shafts indicate a need for optimization in terms of design.

    • Long-term recordings with different mechanical loads enable conclusions to be drawn about reliability and service life.

    • Thanks to compatibility with LabVIEW, the image data can be processed using the programming software used at the Institute and saved in a structured way.

    Find out why the testo 890 has become an indispensable thermal imager for the scientists in other respects too.

    Tech Sheets

    Detect more through excellent temperature measurement accuracy

    Did you know that the testo 890 Thermal Imager has one of the best temperature accuracies on the market? You can find out all the technical background in the Tech Sheet.

    Go to the reading sample

    What characterizes high temperature accuracy?

    What does a good sensor have to be able to do?

    What role does comparison play?

    How can measurement data be precisely analyzed with LabVIEW?

    Applications in development

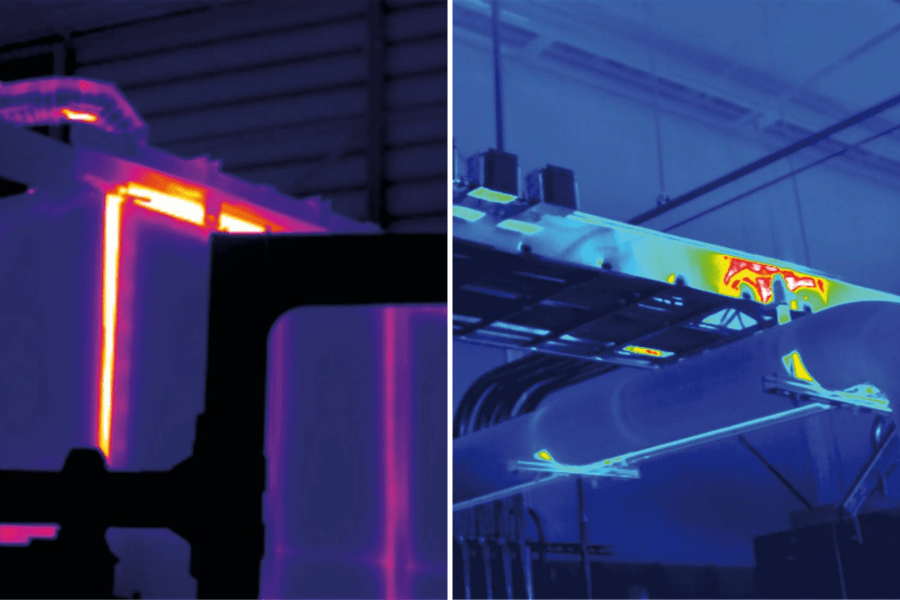

    Thermal decoupling of components

    Components subject to significant heating, and temperature-sensitive components, are often located close together in large assemblies. To prevent sensitive components from overheating, individual components or whole areas, have to be thermally decoupled. How a thermal imager will support you:

    • Measurement of heat distribution and analysis with the testo IRSoft thermography software

    • Tests and analysis with different insulation materials

    • Optimum layout of insulation and avoidance of unnecessarily high unit costs

    • Fast troubleshooting if the thermal decoupling is not working

    • Development of efficient solutions for cooling components

    Go to the Testo Thermal Imagers

    Thermal imagers for research & development

    testo 890 Brochure
