- testo 557s Smart Vacuum Kit with 4 hoses

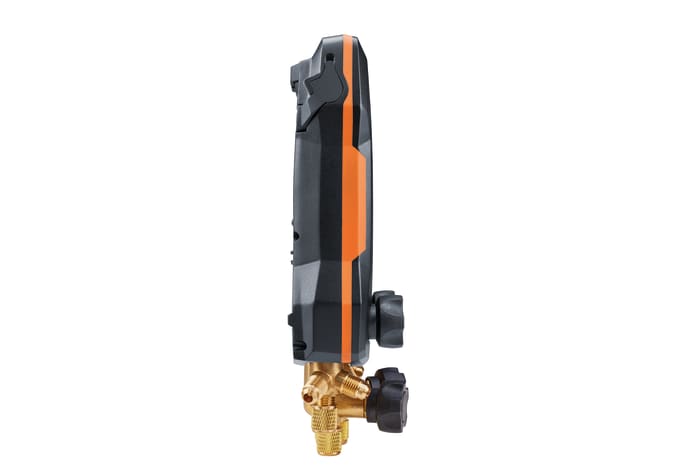

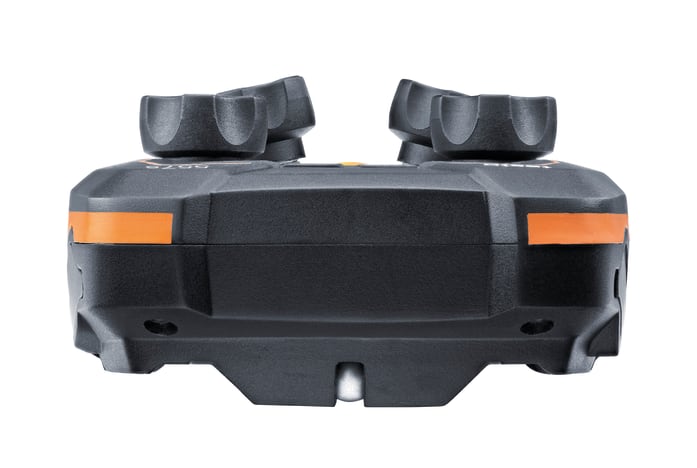

testo 557s Smart Vacuum Kit with hoses - Smart digital manifold with wireless vacuum and wireless temperature probes and 4 hose set
0564 5572 01testo 557s Smart Vacuum Kit with hoses - Smart digital manifold with wireless vacuum and wireless temperature probes and 4 hose set

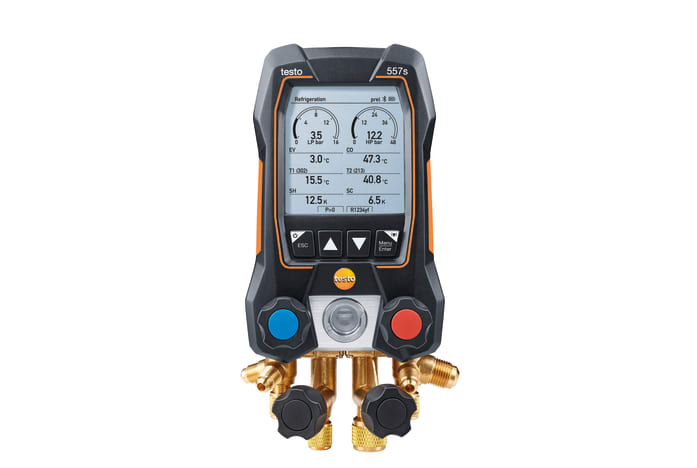

0564 5572 01Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class

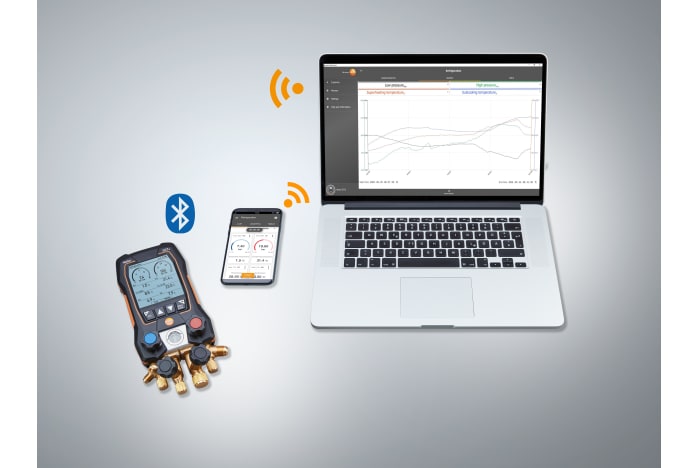

Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

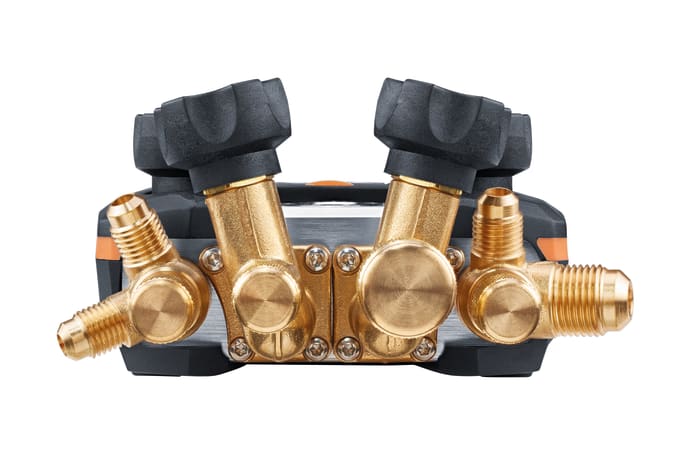

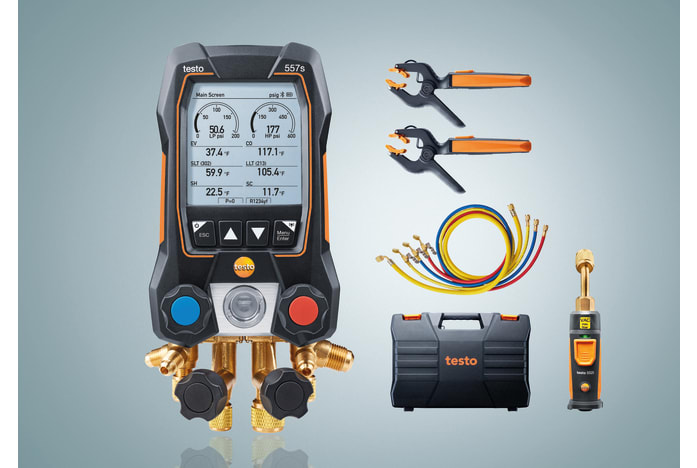

In the kit: testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x testo 552i wireless vacuum probe (Bluetooth), 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), 4 hose set, and case

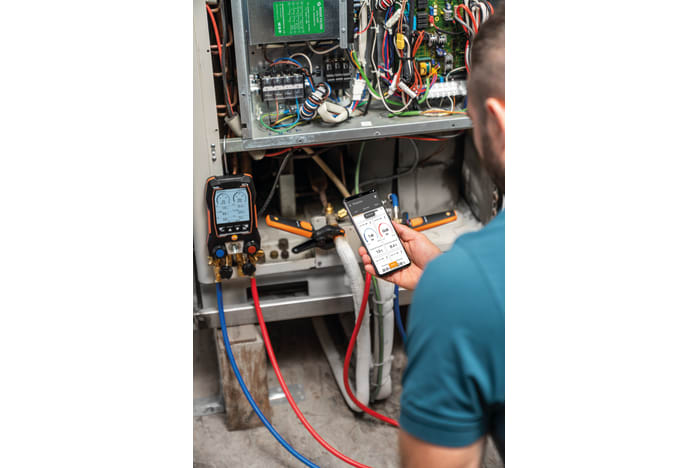

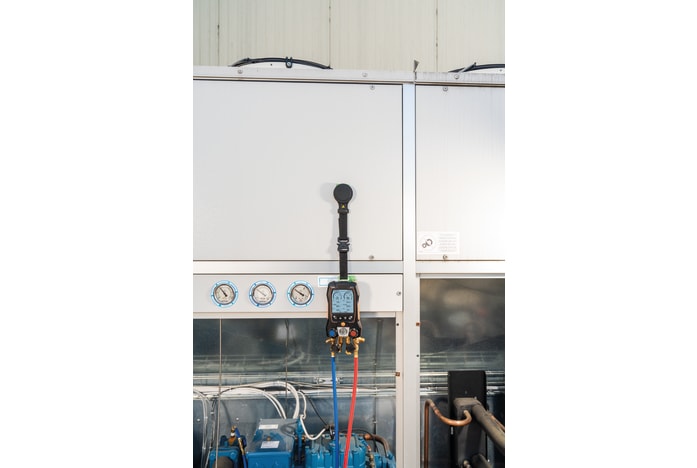

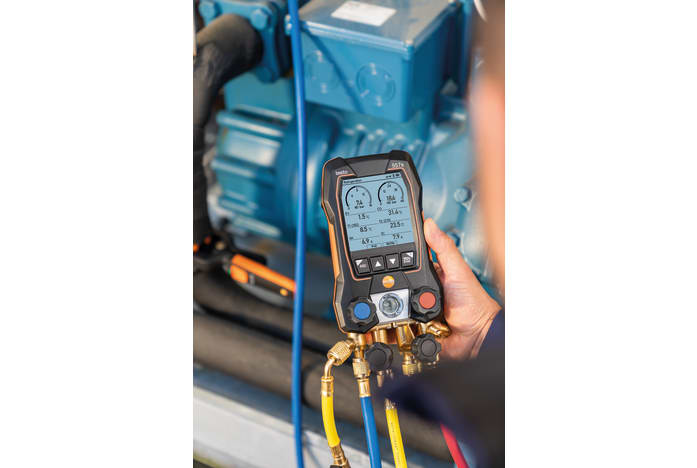

For completely wireless measurements on refrigeration and air conditioning systems and heat pumps. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC), a 4 hose set and a rugged transport case. For other wireless measurements, the Testo Smart Probes are ideal.
*A2L Compliant*
*A2L Compliant*
Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
- testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol
- 1 x testo 552i wireless Bluetooth vacuum probe
- 2 x testo 115i wireless Bluetooth clamp thermometers
- 4 hoses set
- Transport case
- testo Smart App (free download)
- Instruction manual
Temperature
| Measuring range | -58° to 302 °F / -50 to +150 °C |
|---|---|
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
| Probe connection | 2 x Plug-in (NTC) |
Pressure measurement
| Measuring range | -15 to 870 psi / -1 to 60 bar |
|---|---|
| Accuracy | ±0.5 % Fs |
| Resolution | 0.14 psi / 0.01 bar |
| Probe connection | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (high pressure) | 943 psi / 65 bar |
General technical data
| Weight | 44 oz. / 1243 g |
|---|---|
| Dimensions | 9 x 4.4 x 3 in. (LxWxH) / 229 x 112.5 x 71 mm (LxWxH) |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Protection class | IP54 |
| Product colour | Black |
| Auto-off | 10 min* |
| Battery life | 250 h with no illumination, no Bluetooth<sup>®</sup>h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth<sup>®</sup> |
| Battery type | 4 x AA batteries |
| Radio range | 492.12 ft. / 150 m |
| Pressure media | CFC |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂) |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
| * when not connected via Bluetooth | |
Temperature - NTC
| Measuring range | -40° to 302 °F / -40 to +150 °C |
|---|---|
| Accuracy | ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °F / 0.1 °C |
General technical data
| Weight | 4.49 oz. / 127.4 g |
|---|---|
| Dimensions | 7 x 4 x 1 in. / 183 x 90 x 30 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Absolute Pressure
| Measuring range | 0 to 0.39 psi / / 0 to 26.66 mbar / 0 to 20000 micron |
|---|---|
| Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Resolution | 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / |
| Overload | absolute: 87.0 psi / 87 psi / absolute: 6.0 bar / 87 psi (relative: 72.5 psi / 72 psi) / (relative: 5.0 bar / 72 psi) |
General technical data
| Weight | 5 oz. / 142 g |
|---|---|
| Dimensions | 6 x 1 x 1 in. (LxWxH) / 150 x 32 x 31 mm (LxWxH) |
| Operating temperature | 14.0° to 122.0 °F / -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Auto-off | 10 min* |
| Battery type | 3 x AAA |
| Battery life | 39 h |
| Connection | 7/16“ UNF |
| Interface | Bluetooth® 4.2 |
| Storage temperature | -4.0° to 122.0 °F / -20 to +50 °C |
| * when not connected via Bluetooth | |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
Temperature probes
Temperature probes
Efficient, robust NTC air probe
:
0613 1712
0613 1712
$ 125.00
1
Temperature probes
Clamp temperature probe kit (fixed cable, NTC) - for measurements on pipes (Ø 6-35 mm)
:
0613 5507
0613 5507
$ 75.65
1
Temperature probes
Clamp probe (NTC) for temperature measurements on pipes (Ø 6-35 mm) with 5 m cable length – measuring range: -40 to +125 °C
:
0613 5506
0613 5506
$ 75.65
1
Temperature probes
Testo NTC Velcro Pipe Probe will allow you to properly measure Evaporator and Condensor temperatures in real time using your Testo Digital Manifold. Using the velcro pipe probes will also allow the manifold to calculate Superheat and Subcool values, ensuring that they are at a correct, optimized level, and the refrigeration system is running at maximum efficiency.
:
0613 4611
0613 4611
$ 115.60
1
Temperature probes
Testo NTC Spring Clamp Probes will allow you to properly measure Evaporator and Condensor temperatures in real time using your Testo Digital Manifold. Using the spring clamp probes will also allow the manifold to calculate Superheat and Subcool values, ensuring that they are at a correct, optimized level, and the refrigeration system is running at maximum efficiency
:
0613 5605
0613 5605
$ 255.00
1
Temperature probes
Waterproof surface probe for flat surfaces
:
0613 1912
0613 1912
$ 140.00
1
Temperature probes
testo 915i wireless thermometer with flexible temperature probe (TC type K) and smartphone operation
:
0563 4915 01
0563 4915 01
Sets
Sets
testo 557s Smart Vacuum Kit with 4 hoses – Smart digital manifold with wireless vacuum, wireless temperature probes, and 4 hose set
:
0564 5572 01
0564 5572 01
Sets
testo 557s Smart Vacuum Kit – Smart digital manifold with wireless vacuum and temperature probes
:
0564 5571 01
0564 5571 01
Sets
testo Smart Probes heating kit operated via smartphone
:
0563 0004 10
0563 0004 10
Sets
testo Smart Probes AC and refrigeration test kit operated via smartphone
:
0563 0002 20
0563 0002 20
Sets
testo Smart Probes AC & Refrigeration Test & Load kit, operated via smartphone
:
0563 0009
0563 0009
Sets
testo Smart Probes HVAC/R Ultimate kit operated via smartphone
:
0563 0007
0563 0007
Accessories
Accessories
testo 560i - Digital refrigerant scale with Bluetooth
:
0564 1560 01
0564 1560 01
Accessories
testo Smart App with the full range of functions - available as a free download
:
0501 5001
0501 5001
Accessories
Free download: testo DataControl PC software
:
0501 4000
0501 4000
Accessories
Magnetic strap – for digital manifolds
:
0564 1001
0564 1001
$ 63.75
1
Accessories
Valve replacement kit for two valve positioners
:
0554 5570
0554 5570
$ 49.00
1
Accessories
testo 565i Smart Vacuum Pump
:
0564 5652
0564 5652
Accessories
testo 565i Smart Vacuum Pump
:
0564 5653
0564 5653
Accessories
testo Smart Case “Refrigeration” – storage case for Smart Probes measuring instruments
:
0516 0240
0516 0240
$ 41.65
1
Accessories
testo Smart Case “Heating” – storage case for Smart Probes measuring instruments
:
0516 0270
0516 0270
$ 41.65
1
Accessories
testo HVAC softcase storage case: for testo Smart Probes measuring instruments
:
0516 0283
0516 0283
$ 68.00
1
Accessories
testo 560i kit - Digital refrigerant scale and intelligent valve for automatic charging of refrigeration systems and heat pumps
:
0564 2560 01
0564 2560 01
Refrigeration systems, air conditioning systems, heat pumps, ductless, single zone, multi zone, mini split systems
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
- Testo A2L Compatibility Chart(pdf, 1.5 MB)
- Instruction manual testo 550s / testo 557s(pdf, 1.95 MB)
- EU declaration of conformity testo 557s(pdf, 33.12 kB)
- Technical Documentation A3 refrigerant testo 557s(pdf, 40.7 kB)
- Testo Smart Probes Instruction Manual(pdf, 1.57 MB)
- Testo Smart Probes Short Manual(pdf, 1.98 MB)
- EU declaration of conformity testo 552i(pdf, 33.25 kB)
