testo Smart Probes HVAC/R Ultimate kit
Product no. 0563 0007
testo Smart Probes HVAC/R Ultimate kit
Product no. 0563 0007Your advantages

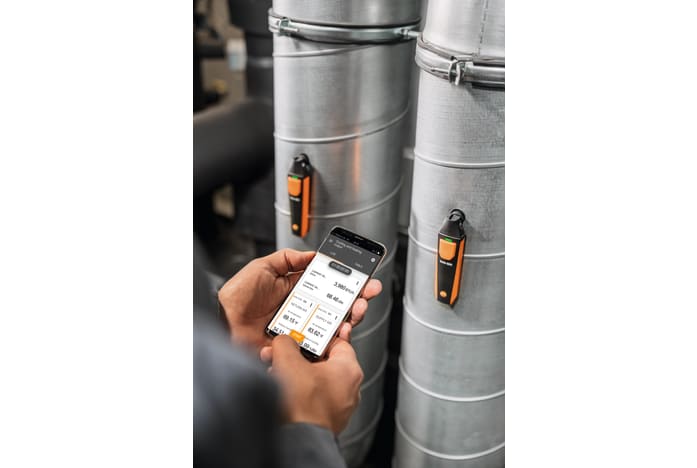

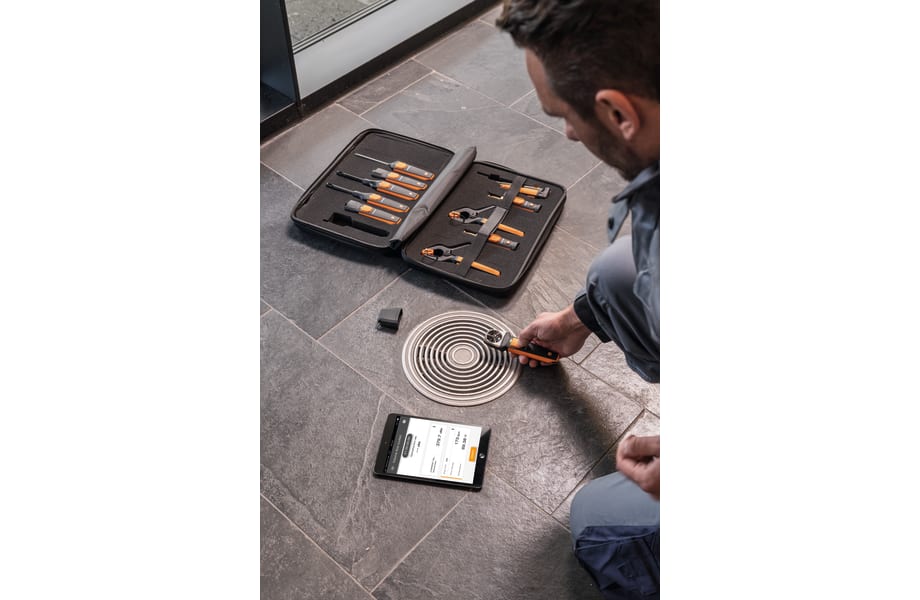

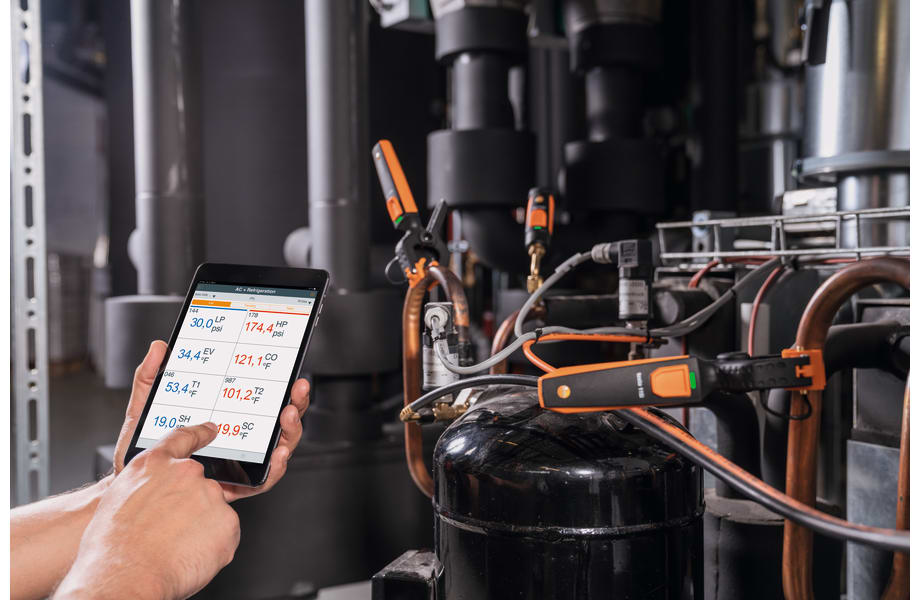

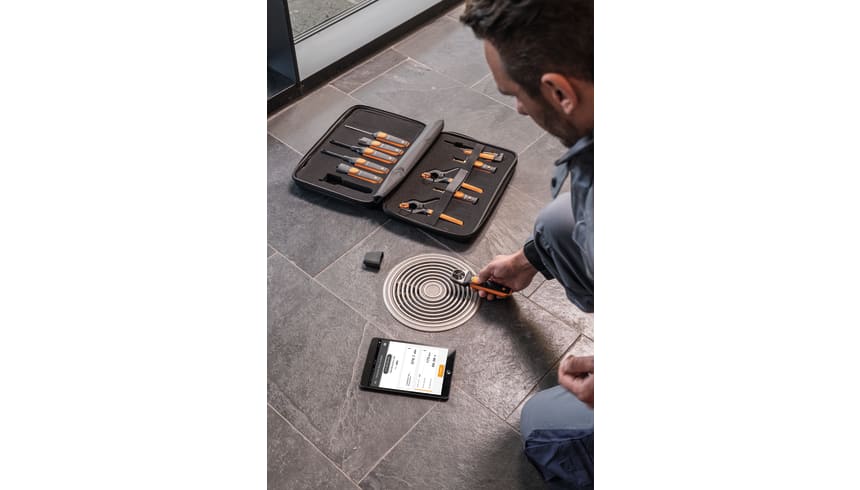

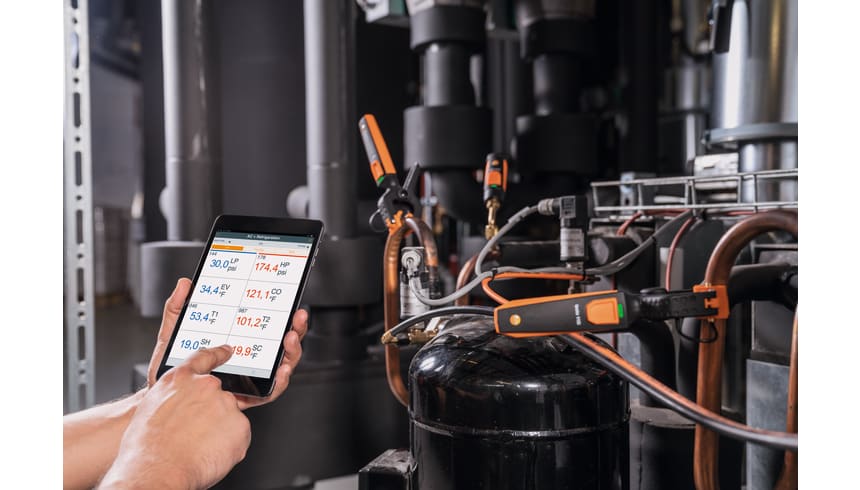

For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
All Smart Probes for temperature, pressure, humidity and flow in one kit
Display of measurement data progression as a graph or table
Live data feed integration now available with the MeasureQuick App
Complete kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation: The kit contains all the testo Smart Probes and is ideal for carrying out functional checks or for plant maintenance, in conjunction with your smartphone/tablet. The testo Smart App enables you to work more easily and efficiently: Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating load, differential temperature or mold indication. Measurement data reports can be emailed directly as a PDF or Excel file.
**NOTE** The testo 115i, 549i, and 605i Smart Probes now have an extended Bluetooth range of up to 350 Feet!*
**NOTE** The testo 115i, 549i, and 605i Smart Probes now have an extended Bluetooth range of up to 350 Feet!*
Description

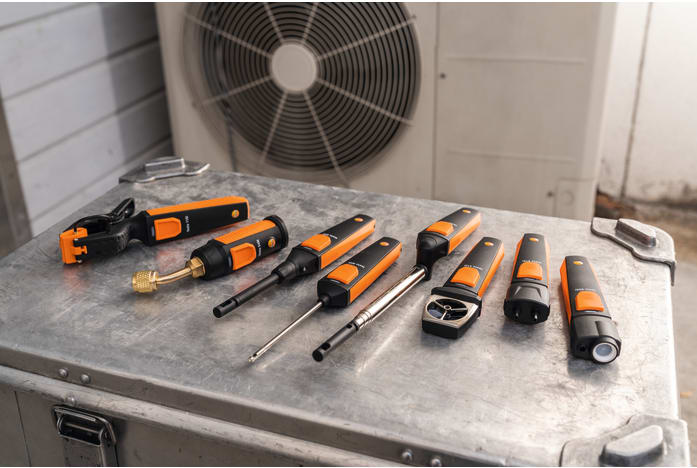

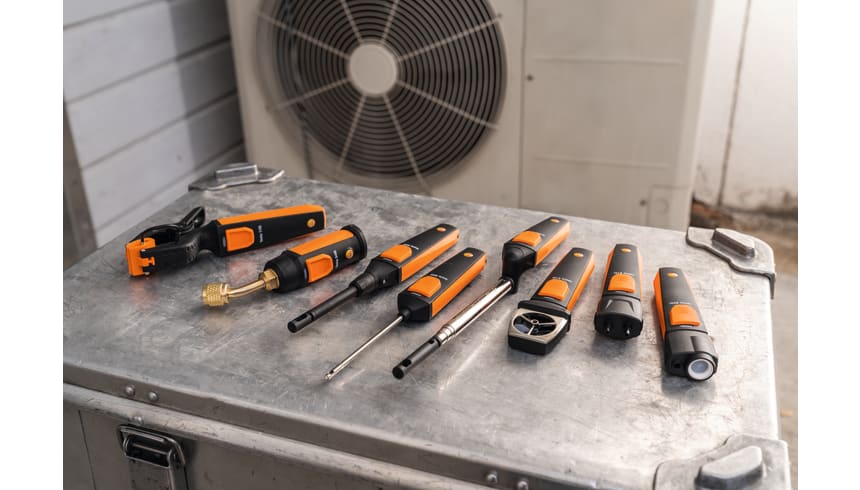

Delivery Scope
- 2 x testo 115i clamp thermometers operated via smartphone, including batteries and certificate of conformity (0560 2115 03)
- 2 x testo 549i high-pressure gauges operated via smartphone, including batteries and certificate of conformity (0560 2549 03)
- 2 x testo 605i thermohygrometers operated via smartphone, including batteries and certificate of conformity (0560 2605 03)
- 1 x testo 915i thermometer with flexible probe operated via smartphone, including batteries and certificate of conformity (0560 4915)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and certificate of conformity (0560 1805)
- 1 x testo 405i thermal anemometer operated via smartphone, including batteries and certificate of conformity (0560 1405)
- 1 x testo 410i vane anemometer operated via smartphone, including batteries and certificate of conformity (0560 1410)
- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and certificate of conformity (0560 1510)

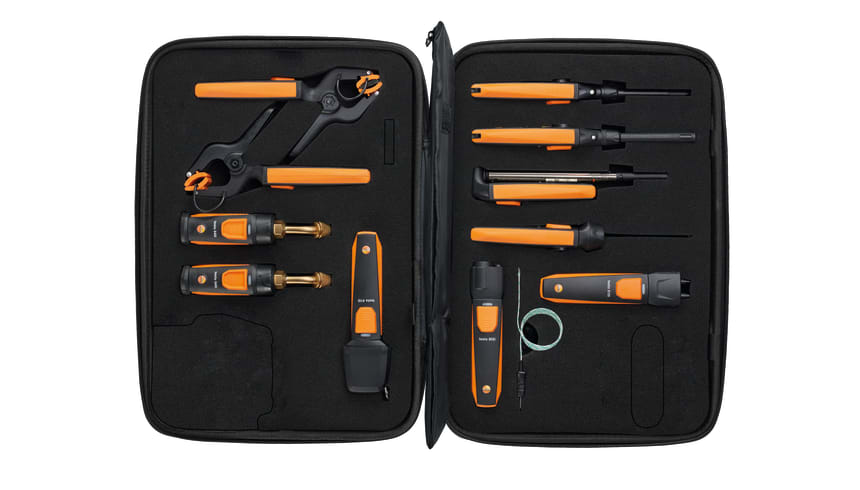

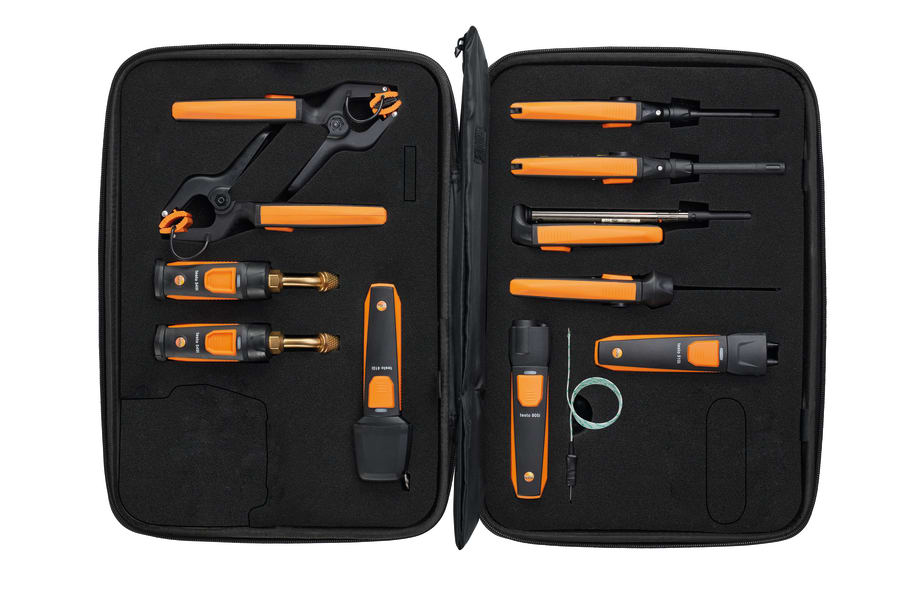

- 1 x testo HVAC softcase - storage case for testo Smart Probes measuring instruments, including foam insert (0516 0283)
Customers who viewed this product also viewed
Customers who viewed this product also viewed
testo 417 - Digital 4 inch vane anemometer with App connection
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
Product no.:
0563 0417
0563 0417
1
Customers who viewed this product also viewed
testo 417 kit 1 - Vane anemometer with measurement funnels
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
Product no.:
0563 1417
0563 1417
1
Customers who viewed this product also viewed
testo 417 kit 2 - Vane anemometer with measuring funnels and flow straightener
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
Product no.:
0563 2417
0563 2417
1
Technical data
Temperature - NTC
| Measuring range | -40° to 302 °F / -40 to +150 °C |
|---|---|
| Accuracy | ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °F / 0.1 °C |
General technical data
| Weight | 4.49 oz. / 127.4 g |
|---|---|
| Dimensions | 7 x 4 x 1 in. / 183 x 90 x 30 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Pressure measurement
| Measuring range | -15 to +870 psi / -1 to +60 bar |
|---|---|
| Accuracy | ±0.5 % of full-scale value |
| Resolution | 0.01 psi / 0.01 bar |
| Probe connection | 7 / 16 in. - UNF |
| Overload rel. (high pressure) | +943 psi / +65 bar |
General technical data
| Weight | 5.52 oz. / 156.6 g |
|---|---|
| Dimensions | 5 x 1 x 1 in. / 125 x 32 x 31 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Pressure media | CFC, HFC, HCFC, N, H₂O, CO₂ |
| System requirements | requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - NTC
| Measuring range | -4° to 140 °F / -20 to +60 °C |
|---|---|
| Accuracy | ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C) ±0.9 °F (32° to 140 °F) / ±0.5 °C (0 to +60 °C) |
| Resolution | 0.1 °F / 0.1 °C |
Humidity - Capacitive
| Measuring range | 0 to 100 %rH |
|---|---|
| Accuracy | ±5 %rH (< 10 %rH or > 90 %rH) ±3.0 %rH (10 to 35 %rH) (at +77°F) / ±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %rH (35 to 65 %rH) (at +77°F) / ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %rH (65 to 90 %rH) (at +77°F) / ±3.0 %RH (65 to 90 %RH) (at +25°C) |
| Resolution | 0.1 %rH |
General technical data
| Weight | 3.05 oz. / 86.4 g |
|---|---|
| Dimensions | 10 x 1 x 1 in. / 243 x 30 x 24 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Length probe shaft | 3.937 in. / 100 mm |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - NTC
| Measuring range | -4° to 140 °F / -20 to +60 °C |
|---|---|
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
Velocity - Hot wire anemometer
| Measuring range | 0 to 5906 fpm / 0 to 30 m/s |
|---|---|
| Accuracy | ±(59.1 fpm + 5 % of mv) (394 to 2953 fpm) / ±(0.3 m/s + 5 % of mv) (2 to 15 m/s) ±(19.7 fpm + 5 % of mv) (0 to 394 fpm) / ±(0.1 m/s + 5 % of mv) (0 to 2 m/s) |
| Resolution | 1.97 fpm / 0.01 m/s |
General technical data
| Weight | 4.22 oz. / 119.6 g |
|---|---|
| Dimensions | 8 x 1 x 2 in. / 200 x 30 x 41 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 15 h |
| Battery type | 3 x AAA |
| Diameter probe shaft | 0.472 in. / 12 mm |
| Diameter probe shaft tip | 0.354 in. / 9 mm |
| Length probe shaft | 15.748 in. / 400 mm |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - NTC
| Measuring range | -4° to 140 °F / -20 to +60 °C |
|---|---|
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
Velocity - Vane anemometer
| Measuring range | 78.7 to 5906 fpm / 0.4 to 30 m/s |
|---|---|
| Accuracy | ±(39.4 fpm + 2 % of mv) (78.7 to 3937 fpm) / ±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s) |
| Resolution | 0.1 fpm / 0.1 m/s |
General technical data
| Weight | 4.16 oz. / 117.8 g |
|---|---|
| Dimensions | 6 x 2 x 1 in. / 154 x 43 x 21 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 130 h |
| Battery type | 3 x AAA |
| Diameter vane | 1.181 in. / 30 mm |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Differential pressure (internal sensor) - Piezoresistive
| Measuring range | -60 to +60 InH₂O / -150 to +150 hPa |
|---|---|
| Accuracy | ±0.02 InH₂O (0 to +0.4 InH₂O) / ±0.05 hPa (0 to +1 hPa) ±(0.1 InH₂O + 1.5 % of mv) (+0 to +60 InH₂O) / ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
| Resolution | 0.01 InH₂O / 0.01 hPa |
General technical data
| Weight | 3.25 oz. / 92 g |
|---|---|
| Dimensions | 6 x 1 x 1 in. / 148 x 36 x 23 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 x AAA |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - Infrared
| Measuring range | -22° to 482 °F / -30 to +250 °C |
|---|---|
| Accuracy | ±4.5 °F (-22° to -4.2 °F) / ±2.5 °C (-30 to -20.1 °C) ±4 °F (-4° to 31.8 °F) / ±2 °C (-20 to -0.1 °C) ±2.7 °F or ±1.5 % of mv (32° to 482 °F) / ±1.5 °C or ±1.5 % of mv (0 to +250 °C) |
| Resolution | 0.1 °F / 0.1 °C |
General technical data
| Weight | 3.42 oz. / 97 g |
|---|---|
| Dimensions | 6 x 1 x 1 in. / 140 x 36 x 25 mm |
| Operating temperature | 14° to 122 °F / -10 to +50 °C |
| Housing | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 30 h |
| Battery type | 3 x AAA |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - Type K TC
| Measuring range | -58° to 302 °F / -50 to +150 °C |
|---|---|
| Accuracy | ±2 °F / ±1 °C |
| Resolution | 0.1 °F / 0.1 °C |
General technical data
| Weight | 2.90 oz. / 82.2 g |
|---|---|
| Dimensions | 9 x 1 x 1 in. / 222 x 30 x 24 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Length probe shaft | 3.937 in. / 100 mm |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
General technical data
| Weight | 26.25 oz. / 744.2 g |
|---|---|
| Dimensions | 15.7 x 11.4 x 3.1 in. / 400 x 290 x 80 mm |
| Product colour | Black |
