    T/C probe head for air/immersion/penetration measurement (T/... - Wireless immersion/penetration probe, NTC

    0602 0293

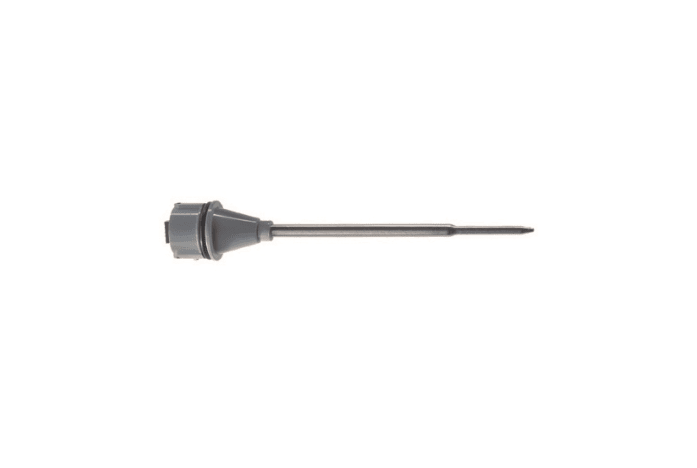

    T/C probe head for air/immersion/penetration measurement (T/C Type K)

    Wireless handle (0554 0189) and wireless module (0554 0188) are required to use a radio probe, and these can be ordered optionally.

    Temperature - Type K TC

    Measuring range
    -58.0° to 662.0 °F / -50 to +350 °C
    Short-term to: +932 °F / Short-term to: +500 °C
    Accuracy
    T/C probe head: Class 2
    ±(1.3 °F + 0.5 % of mv) (Remaining Range) / ±(0.7 °C + 0.5 % of mv) (Remaining Range)
    ±(0.9 °F + 0.3 % of mv) (-40.0° to 932 °F) / ±(0.5 °C + 0.3 % of mv) (-40 to +500 °C)
    Resolution
    0.1 °F (-58.0 to 391.8 °F) / 0.1 °C (-50 to +199.9 °C)
    1.0 °F Remaining Range / 1.0 °C Remaining Range
    Reaction time
    (in water) 10 sec

    General technical data

    Length probe shaft tip
    1.181 in. / 30 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.134 in. / 3.4 mm
    Length probe shaft
    3.937 in. / 100 mm
