    testo 922 - Digital temperature meter

    0560 9221
  1. Temperature measurements / temperature difference display
  2. Wide measuring range from -58 °to 1832 °F
  3. Connecting points for two type K temperature sensors and wireless connectivity for a third temperature sensor
  4. Wide range of optional sensors
  5. Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product

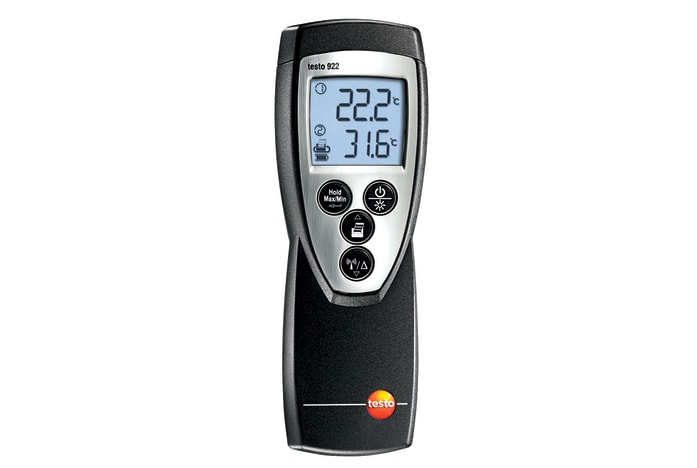

    The testo 922 digital temperature meter measures temperatures and determines the temperature difference in a matter of seconds. The meter comes with connecting points for up to two temperature sensors and wireless connectivity for a third sensor.

    At-a-glance look at all the features

    • Connecting points for 2 optional type K temperature sensors
    • Wireless connectivity for a third temperature sensor
    • Temperature values and temperature difference directly visible in display
    • Permanent display of min and max values
    • Hold function that freezes the last reading

    The testo 922 digital temperature meter - accessories and sensors

    • There is a wide selection of optional temperature and wireless sensors
    • The testo protocol printer allows you to print out on site; the cyclic printing can be used in  adjustable (i.e. one-minute) intervals

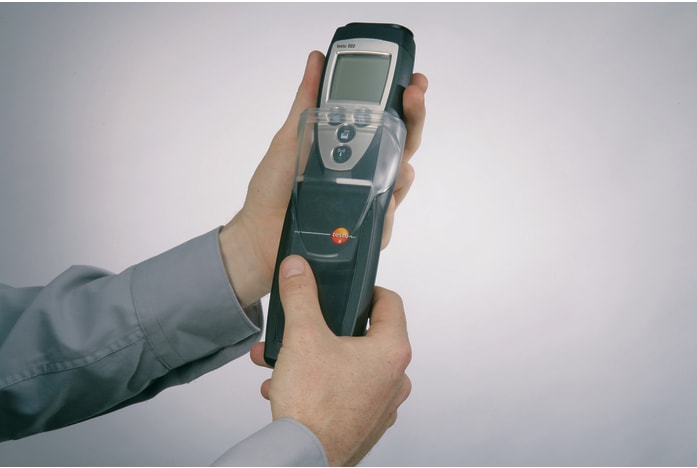

    • The IP65 rated TopSafe protective case protects against impact and dirt and water ingress

    The testo 922 digital temperature meter - areas of application

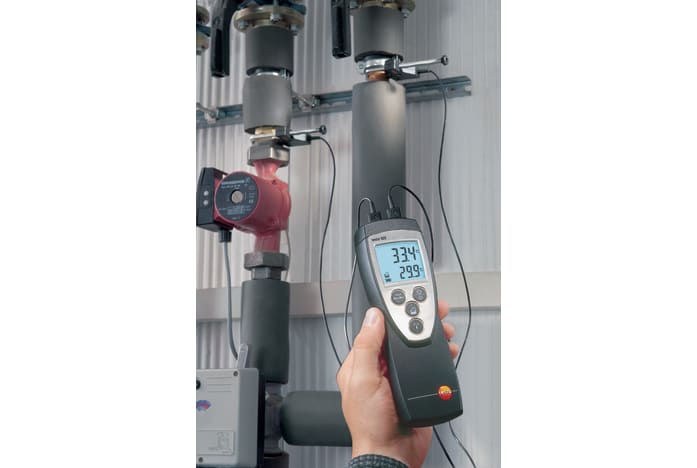

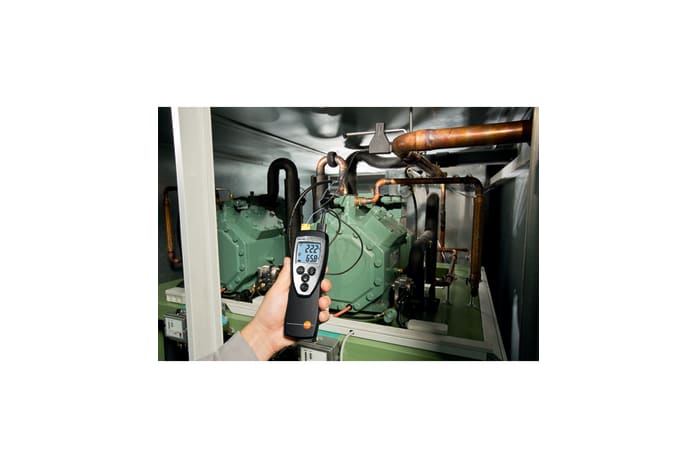

    Professionals in the fields of heating, plumbing and air conditioning can benefit from the compact, easy-to-use digital temperature meter. The testo 922 measures temperatures quickly and accurately and determines the temperature difference directly. This allows you to carry out quick and efficient inspections and checks. The optional testo turbo printer allows you to print out on site.

    testo 922 digital temperature meter, calibration certificate, batteries.

    Temperature - Type K TC

    Measuring range
    -58.0° to 1832.0 °F / -50 to +1000 °C
    Accuracy
    ±(1.3 °F + 0.5 % of mv) (Remaining Range) / ±(0.7 °C + 0.5 % of mv) (Remaining Range)
    ±(0.9 °F + 0.3 % of mv) (-40.0° to 1652.0 ) / ±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)
    Resolution
    0.1 °F (-58° to 391.8 °F) / 0.1 °C (-50 to +199.9 °C)
    1.0 °F (Remaining Range) / 1 °C (Remaining Range)

    General technical data

    Weight
    6 oz. / 171 g
    Dimensions
    7 x 3 x 2 in. / 182 x 64 x 40 mm
    Operating temperature
    -4.0° to 122.0 °F / -20 to +50 °C
    Housing
    ABS
    Number of channels
    2-channel
    Battery type
    9V block battery, 6F22
    Battery life
    200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)
    Storage temperature
    -40.0° to 158.0 °F / -40 to +70 °C

    Air Probes

    Air and Immersion / Penetration RFID Probe

  6. Air and Immersion / Penetration RFID Probe
    T/C probe head for air/immersion/penetration measurement
    T/C probe head for air/immersion/penetration measurement (T/C Type K)
      :
      0602 0293
      $ 80.00
      1
    • Food Probe

      Immersion / Penetration Probe

      Immersion / Penetration RFID Probe

    • Immersion / Penetration RFID Probe
      No picture available
      Wireless immersion/penetration probe, NTC, approved for USA
        :
        0613 1002
      • Surface RFID Probe

        Surface probes

      • Surface probes
        Spare meas. head for pipe wrap probe, TC Type K
        Spare measuring head with thermocouple strip for temperature probe with clamping bracket
          :
          0602 0092
          $ 85.00
          1
        • Surface probes
          Fast-reaction paddle surface probe
          Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K
            :
            0602 0193
            $ 215.00
            1
          • Surface probes
            Fast-action surface probe with sprung thermocouple strip
            Fast-action surface probe with spring thermocouple , for uneven surfaces, short-term range to +932°F, T/C Type K
              :
              0602 0393
              $ 209.00
              1
            • Surface probes
              Efficient, waterproof surface probe with small measurement head
              Efficient, waterproof surface probe with small measurement head for flat surfaces, T/C Type K
                :
                0602 0693
                $ 190.00
                1
              • Surface probes
                Fast-action surface probe with sprung thermocouple strip
                Fast-action surface probe with spring thermocouple for uneven surfaces, short-term to +932°F, T/C Type K
                  :
                  0602 0993
                • Surface probes
                  Waterproof surface probe with widened measurement tip
                  Waterproof surface probe with widenend measurement tip for flat surfaces, T/C Type K
                    :
                    0602 1993
                    $ 105.00
                    1
                  • Surface probes
                    Flat head surface probe with telescopic handle max. 680 mm
                    Flat head surface probe with telescopic handle (max. 24 in.) for hard-to-reach areas, T/C Type K
                      :
                      0602 2394
                    • Surface probes
                      Pipe wrap probe for pipe diameter 5 to 65 mm
                      Pipe clamp probe for pipe diameter 0.2 to 2.5'', with replaceable measuring head. Measuring range to 536 °F short-term
                        :
                        0602 4592
                        $ 208.00
                        1
                      • Surface probes
                        Clamp probe for measurements on pipes
                        Clamp probe for measurements on pipes, pipe diameter 0.6 to 1'' (max. 1''), meas. range to +266 °F short-term
                          :
                          0602 4692
                          $ 120.00
                          1
                        • Surface probes
                          Magnetic probe (TC type K) - for surface temperatures
                          Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces
                            :
                            0602 4792
                            $ 247.00
                            1
                          • Surface probes
                            Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
                            Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C
                              :
                              0602 4892
                              $ 275.00
                              1
                            • Surface probes
                              Pipe wrap probe with velcro strip
                              Temperature probe with Velcro (TC Type K)
                                :
                                0628 0020
                                $ 72.00
                                1
