Glass-coated laboratory probe (Pt100)

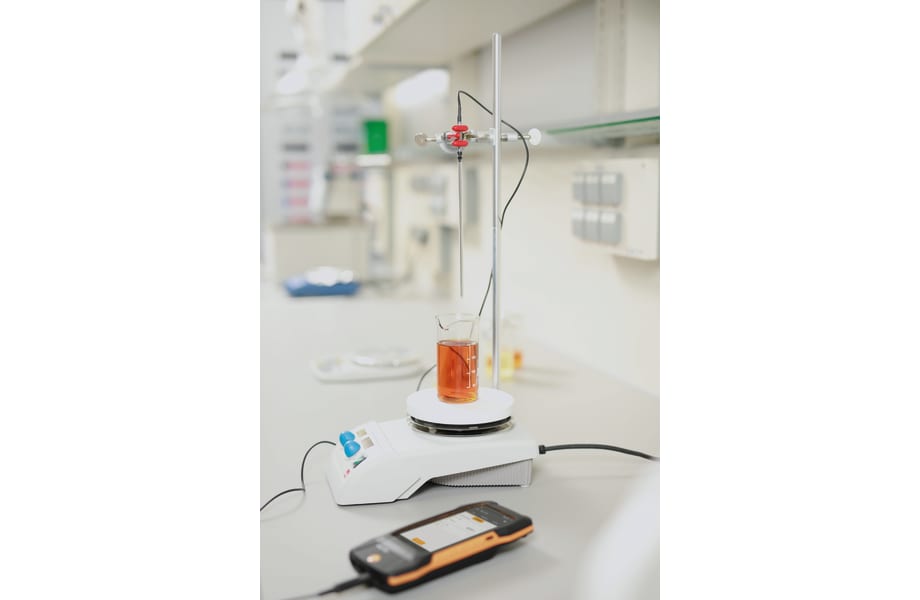

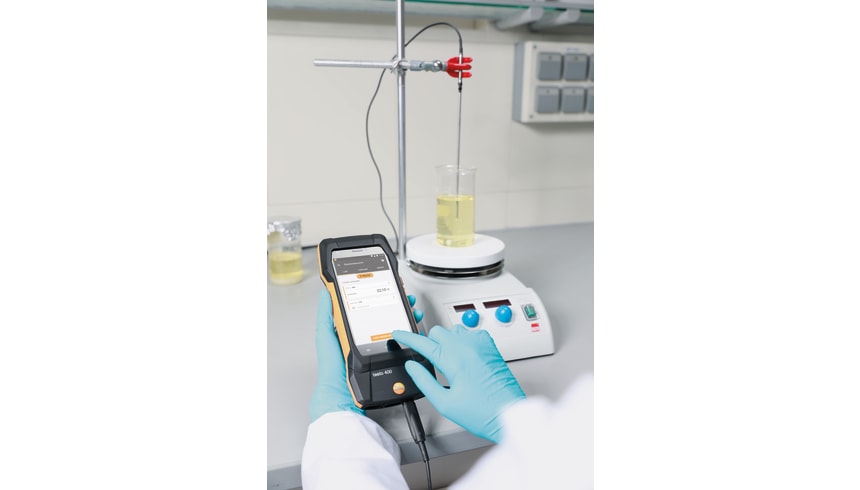

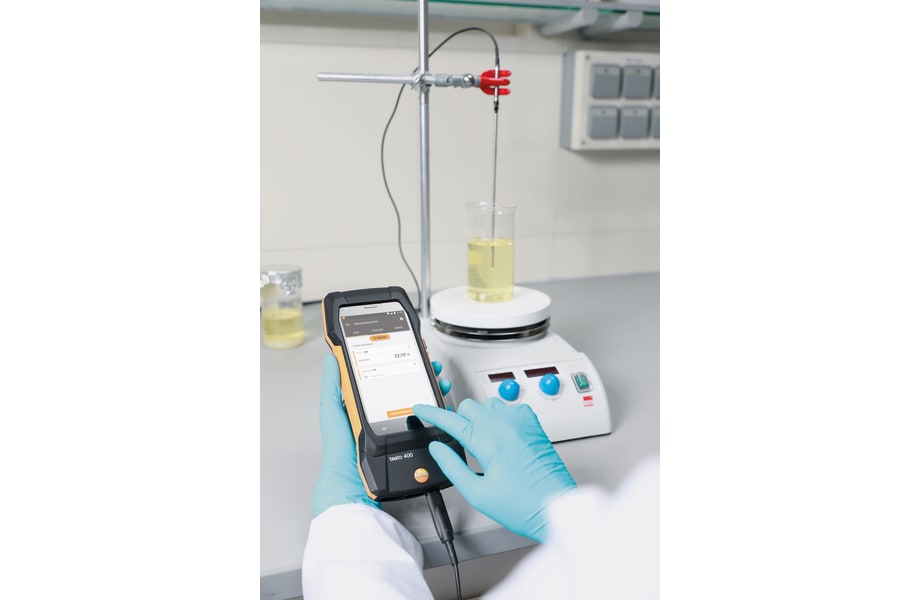

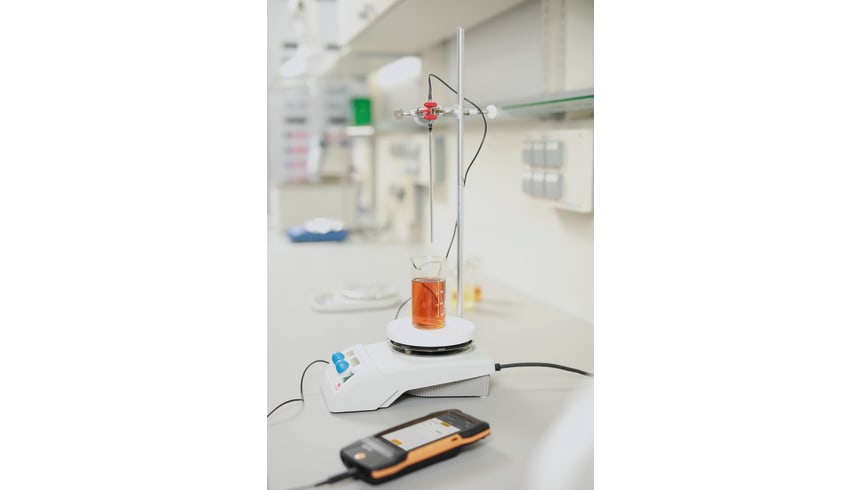

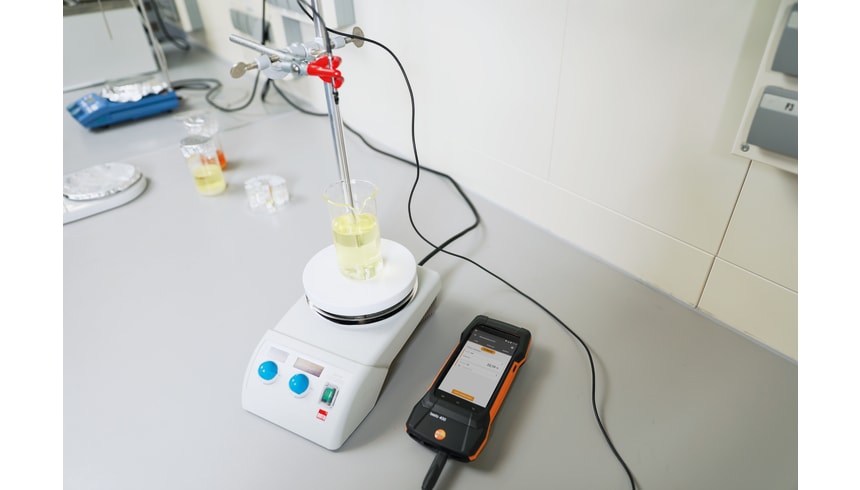

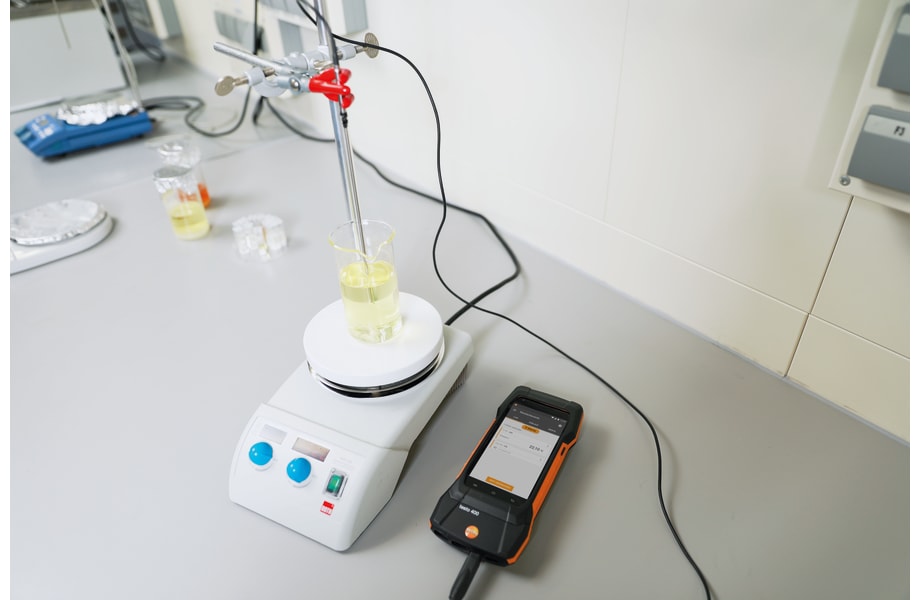

Ideal for measurements in laboratories and in industry. The glass-coated laboratory probe is equipped with a replaceable glass sheathing and a Pt100 temperature sensor, which features long-term stability. This makes it particularly suitable for measuring the temperature in aggressive media.

Intelligent calibration concept

With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.

Measuring range	-50 to +400 °C
Accuracy	±(0,4 °C + 0,6 % of mv) (+300,01 to +400 °C) ±(0,3 °C + 0,3 % of mv) (-50 to +300 °C)
Resolution	0,01 °C
Reaction time	t₉₀ <45 s

Measuring range

-50 to +400 °C

Accuracy

±(0,4 °C + 0,6 % of mv) (+300,01 to +400 °C)

±(0,3 °C + 0,3 % of mv) (-50 to +300 °C)

Resolution

0,01 °C

Reaction time

t₉₀ <45 s

Storage temperature	-20 to +60 °C
Weight	39 g
Dimensions	250 x 6 x 50 mm (LxWxH)
Operating temperature	-5 to +50 °C
Length probe shaft	200 mm
Product-/housing material	glass fibre
Cable length	1,6 m
Diameter probe shaft tip	5 mm
Diameter probe shaft	6 mm
Length probe shaft tip	30 mm
Product colour	Black

Storage temperature

-20 to +60 °C

Weight

39 g

Dimensions

250 x 6 x 50 mm (LxWxH)

Operating temperature

-5 to +50 °C

Length probe shaft

200 mm

Product-/housing material

glass fibre

Cable length

1,6 m

Diameter probe shaft tip

5 mm

Diameter probe shaft

6 mm

Length probe shaft tip

30 mm

Product colour

Black
