    2. Flue gas probe modular, incl. cone for attachment; thermocou...

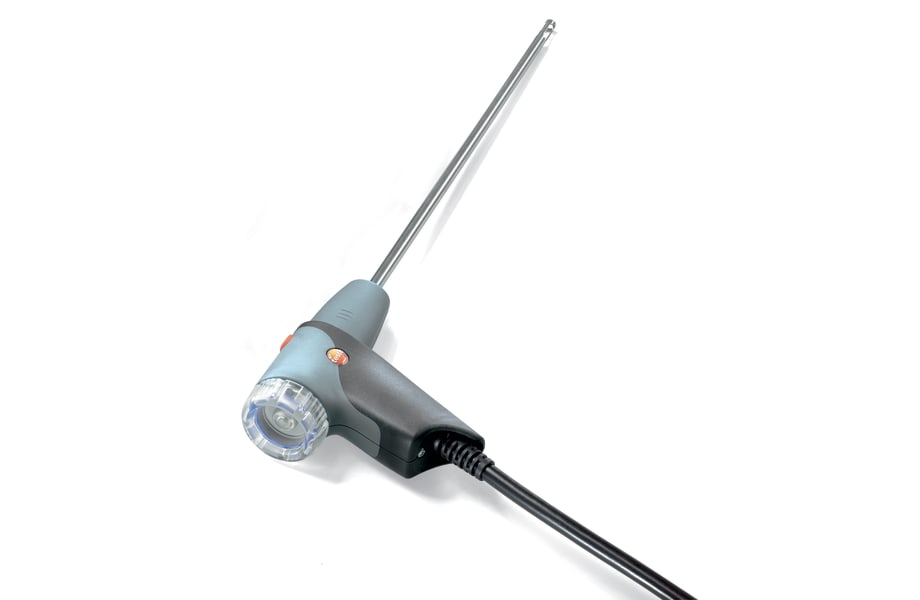

    Modular flue gas probe, 180 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

    0600 9760
    $674.00 $741.40
    1

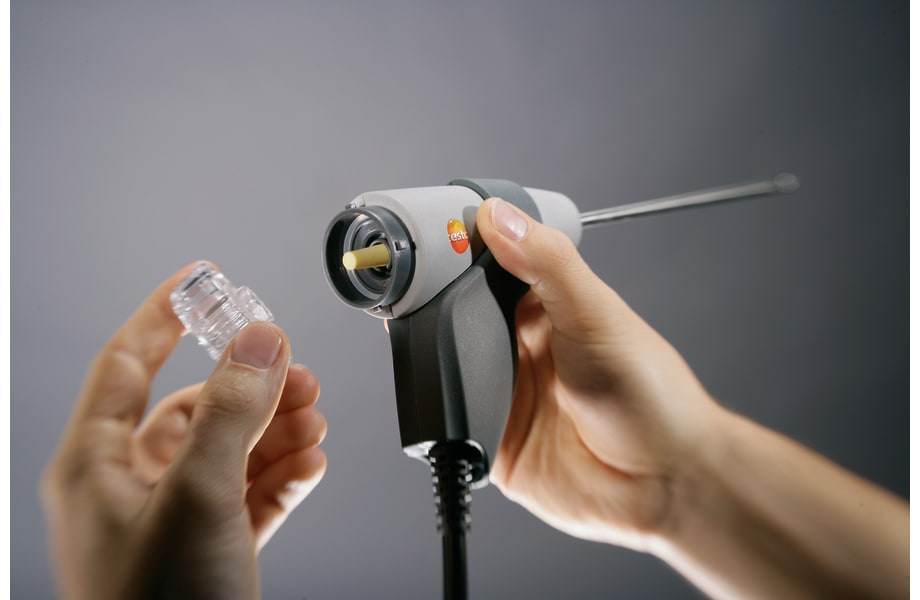

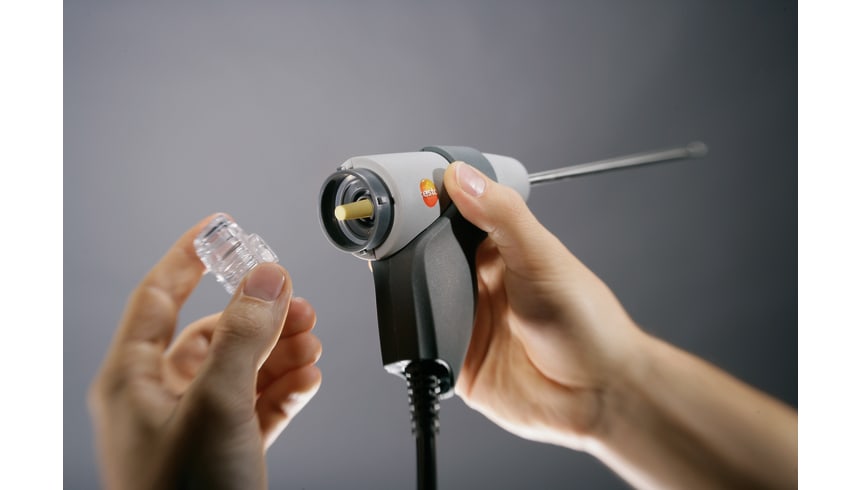

  1. Easy probe shaft replacement via quick-change click system
  2. Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
  3. Integrated dirt filter protects instrument and sensors
  4. Integrated thermocouple probe for temperature measurements up to 500 °C
    5. TÜV-tested modular flue gas probe with 180 mm long probe shaft including dirt filter and thermocouple. The quick-change click system enables quick, flexible replacement of the probe shaft.
    On the TÜV-tested modular flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500 °C. In addition, a dirt filter protects the instrument and its sensors from contamination.

    Modular flue gas probe 180 mm including dirt filter, cone for attachment, thermocouple NiCr-Ni Tmax 500 °C and hose 2.2 m.

  5. testo 300 kit
    testo 300 Basic Kit - Flue gas analyzer (O2, CO up to 4,000 ppm)
      :
      530564 3070
      $2 666.00 $2 932.60
      1
    • testo 300 kit
      testo 300 Domestic Kit - Flue gas analyzer (O2, CO up to 4,000 ppm)
        :
        0564 3002 70
      • testo 300 kit
        testo 300 Intermediate Kit - Flue gas analyzer (O2, CO up to 4,000 ppm)
          :
          530564 3071
          $4 100.00 $4 510.00
          1
        • testo 300
          testo 300 Longlife - Flue gas analyzer (O2, CO up to 15,000 ppm, NO - can be retrofitted)
            :
            0633 3004 82
          • testo 300
            testo 300 Longlife - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
              :
              0633 3004 83
            • testo 300 kit
              testo 300 NEXT LEVEL Longlife kit 2 with printer - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
                :
                0564 3004 89
              • testo 300 kit
                testo 300 NEXT LEVEL Longlife kit 2 with printer - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
                  :
                  0564 3004 83
                • testo 300 kit
                  testo 300 NEXT LEVEL kit 2 - flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm)
                    :
                    0564 3002 72
                  • testo 300 kit
                    testo 300 NEXT LEVEL kit 2 with printer - Flue gas analyzer (O2, CO up to 4,000 ppm)
                      :
                      0564 3002 71
                      $2 972.00 $3 269.20
                      1
                    • testo 300
                      testo 300 - Flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm)
                        :
                        0633 3002 71
                      • testo 300
                        testo 300 - Flue gas analyzer (O2, CO up to 4,000 ppm)
                          :
                          0633 3002 70
                        • testo 300
                          testo 300 - flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO)
                            :
                            0633 3002 85
                          • testo 300
                            testo 300 - flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm)
                              :
                              0633 3002 81
                            • testo 300
                              testo 300 - flue gas analyzer (O2, CO up to 15,000 ppm)
                                :
                                0633 3002 80
                              • testo 300
                                testo 300 - flue gas analyzer (O2, CO up to 15,000 ppm, NO - can be retrofitted)
                                  :
                                  0633 3002 82
                                • testo 300
                                  testo 300 - flue gas analyzer (O2, CO up to 15,000 ppm, NO)
                                    :
                                    0633 3002 84
                                  • testo 300
                                    testo 300 - flue gas analyzer (O2, CO up to 4,000 ppm, NO - can be retrofitted)
                                      :
                                      0633 3002 72
                                    • testo 300 kit
                                      testo 300 NEXT LEVEL Longlife kit 2 - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
                                        :
                                        0564 3004 82

                                        • General technical data

                                        Diameter probe shaft
                                        8 mm
                                        Cable length
                                        2.2 m
                                        Length probe shaft
                                        180 mm
                                        Product colour
                                        Black
                                        Temperature maximum
                                        500 °C
                                        Diameter
                                        6 mm
                                        Weight
                                        524 g
