    testo 805i - infrared thermometer with smartphone operation

    0560 1805
    $194.00 $213.40
    1
  1. Non-contact infrared measurement of surface temperature
  2. Easy selection of emission level via stored materials list
  3. Highly visible marking of the measuring spot thanks to 8-point laser
  4. Image documentation with readings and measuring spot marking
    5. Carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.
    • not available

      testo Smart-App

      The App for all applications. Multifunctional. Continuously up to date. Free.

      Find out more

    • not available

      Many measurement sites - clear documentation

      New PRO measuring program in the testo Smart App

      Find out more

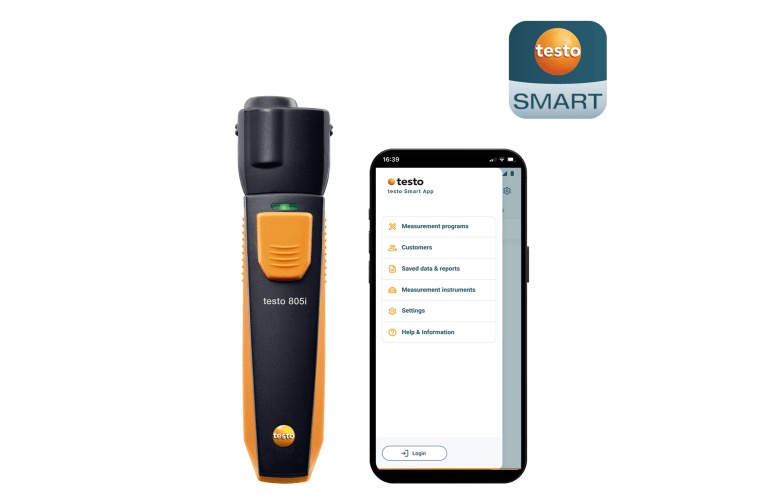

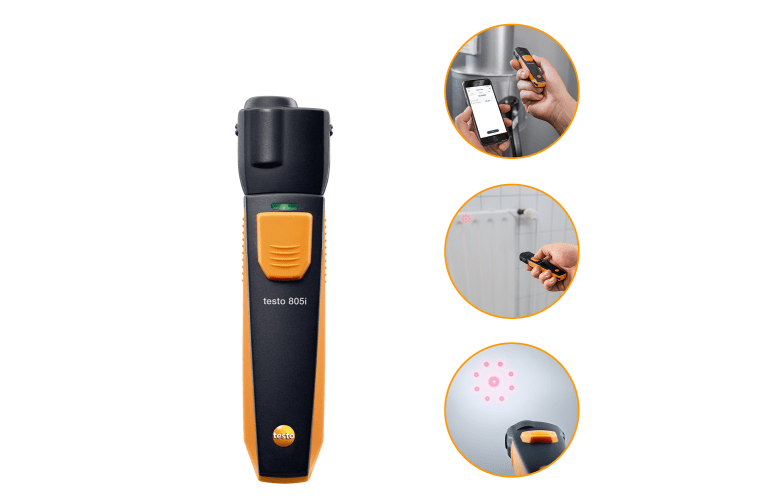

    The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

    Documentation including images via App on a smartphone/tablet

    With the testo Smart Tools App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould. Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.

    System requirements:
    • iOS 8.3 or later
    • Android 4.3 or later
    • Bluetooth 4.0

    testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

    Temperature - Infrared

    Measuring range
    -30 to +250 °C
    Accuracy
    ±1.5 °C or ±1.5 % of mv (0 to +250 °C)
    ±2 °C (-20 to -0.1 °C)
    ±2.5 °C (-30 to -20.1 °C)
    Resolution
    0.1 °C

    General technical data

    Weight
    97 g
    Dimensions
    140 x 36 x 25 mm
    Operating temperature
    -10 to +50 °C
    Product-/housing material
    ABS / TPE
    System requirements
    requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
    Product colour
    black/orange
    Battery life
    30 h
    Battery type
    3 AAA micro batteries
    Storage temperature
    -20 to +60 °C
