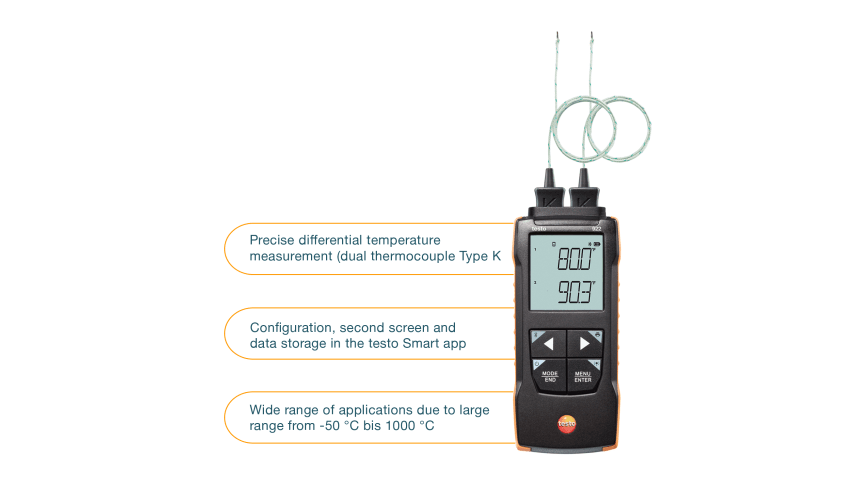

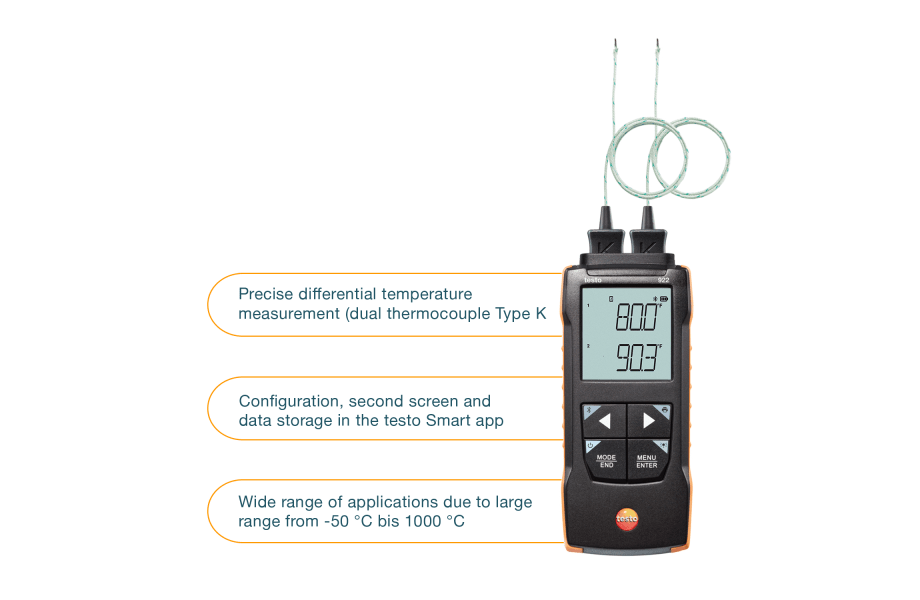

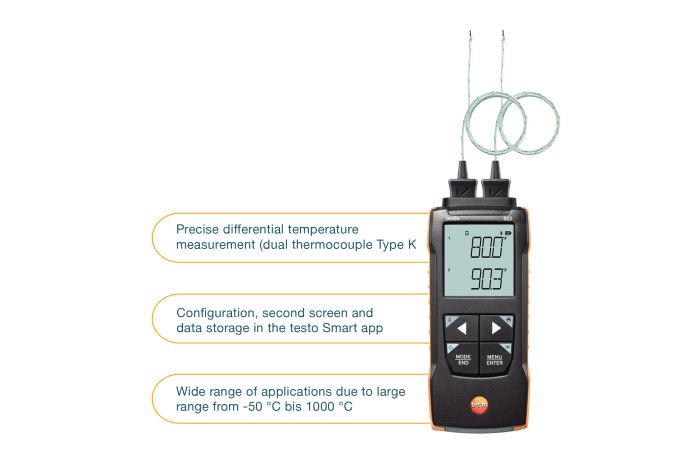

    testo 922 - Differential temperature measuring instrument for TC Type K with App connection

    0563 0922
    $289.00 $317.90
    1
  1. Easy, fast and precise differential temperature measurement with dual thermocouple Type K probes (2 x TC Type K probes Class 1 included)
  2. Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
  3. Wide range of applications due to large measuring range from -50 °C to 1000 °C
  4. Large probe selection optional and compatible with commercially available TC Type K sensors
    5. With the compact 2-channel temperature measuring instrument testo 922 (dual TC Type K, 2 probes, Class 1 included) you have the versatile solution for simple, fast and precise measurement of the differential temperature, e.g. when checking the supply/return temperature on heating circuit manifolds. The testo Smart App supports you with useful functions suchz as configuration, display (also as second screen) and storage as well as documentation of the measured values directly in the App.
    • not available

      testo Smart App

      The App for all applications. Multifunctional. Continuously up to date. Free.

      Find out more

    • not available

      Many measurement sites - clear documentation

      New PRO measuring program in the testo Smart App

      Find out more

    • not available

      testo 922 - Differential temperature measurement (TC Type K)

      To the video

    Professionals in industry and trade value the compact differential temperature measuring instrument testo 922 for its versatility: it not only determines temperatures quickly and accurately, but also does a direct calculation of the differential temperature. And that’s in a wide measuring range from -50 °C to 1000 °C. This means that measurements can be completed just as quickly as documentation with the practical testo Smart App for smartphones and tablets. A typical application for the testo 922 is, for example, the control of the supply/return temperature on heating circuit manifolds. Two Type K thermocouple probes are included, but the testo 922 is also compatible with other commercially available TC Type K probes. Incidentally: The testo Smart App not only supports you with the documentation of your measurement results. The smart assistant also takes care of configuring the testo 922 and displaying and storing the measured values for you. A particularly practical feature: The App also turns your smartphone into a second display.

    • testo 922- 2-channel temperature measuring instrument TC Type K with App connection and audible alarm
    • Transport bag
    • 2 x TC Type K probe, Class 1 (0602 4093)
    • Calibration protocol
    • 3 x AA batteries

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -50 to +1000 °C
    Accuracy
    ±(0.5 °C + 0.3 % of mv) (-50 to +1000 °C)¹⁾
    Resolution
    1 °C (Remaining Range)
    0.1 °C (-50 to +499.9 °C)
    1) Accuracy of instrument without accuracy of probe

    General technical data

    Weight
    191 g
    Dimensions
    135 x 60 x 28 mm
    Operating temperature
    -20 to +50 °C
    Product-/housing material
    ABS + PC / TPE
    Protection class
    IP20 (with connected probe IP40); IP65 with TopSafe
    Battery life
    120 h
    Battery type
    3x AA
    Storage temperature
    -20 to +50 °C

    Air probes

  5. Air probes
    Robuster Luftfühler, TE Typ K
    Robust air temperature probe (TC type K) – measuring range: -60 to +400 °C
      :
      0602 1793
      $141.00 $155.10
      1

      • Comfort probes

    • Comfort probes
      Globe-Thermometer ~ 150 mm, TE Typ K, zum Messen der Strahlung
      Globe thermometer (TC type K) for the measurement of radiant heat – measuring range 0 to + 120 °C
        :
        0602 0743
        $951.00 $1 046.10
        1

        • Food probes

      • Food probes
        Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)
        Waterproof stainless steel food probe (TC type K) - measuring range: -60 to +400°C
          :
          0602 2292
          $174.00 $191.40
          1

          • Surface probes

        • Surface probes
          Fast-action surface probe with sprung thermocouple strip
          Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C
            :
            0602 0393
            $283.00 $311.30
            1
          • Surface probes
            Fast-reaction paddle surface probe
            Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C
              :
              0602 0193
              $295.00 $324.50
              1
            • Surface probes
              Efficient, waterproof surface probe with small measurement head
              Waterproof surface temperature probe with a small measuring head (TC type K) – measuring range: -60 °C to +1000 °C
                :
                0602 0693
                $258.00 $283.80
                1
              • Surface probes
                Fast-action surface probe with sprung thermocouple strip
                Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C
                  :
                  0602 0993
                  $336.00 $369.60
                  1
                • Surface probes
                  Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C
                    :
                    0602 4792
                    $358.00 $393.80
                    1
                  • Surface probes
                    Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
                    Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C
                      :
                      0602 4892
                      $396.00 $435.60
                      1
                    • Surface probes
                      Waterproof surface probe with widened measurement tip
                      Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C
                        :
                        0602 1993
                        $141.00 $155.10
                        1
                      • Surface probes
                        Pipe wrap probe with velcro strip
                        Temperature probe with Velcro (TC Type K)
                          :
                          0628 0020
                          $101.00 $111.10
                          1
                        • Surface probes
                          Pipe wrap probe for pipe diameter 5 to 65 mm
                          Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C
                            :
                            0602 4592
                            $300.00 $330.00
                            1
                          • Surface probes
                            Spare meas. head for pipe wrap probe, TC Type K
                            Spare measuring head for pipe wrap probes (TC type K) - Measuring range: -60 to +130°C
                              :
                              0602 0092
                              $119.00 $130.90
                              1
                            • Surface probes
                              Clamp probe for measurements on pipes
                              Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C
                                :
                                0602 4692
                                $155.00 $170.50
                                1

                                • Thermocouples

                              • Thermocouples
                                Thermocouple with TC adapter, flexible, 800 mm long
                                Flexible thermoelectric couple (TC type K, glass fibre) – Measuring range: -50 to +400°C
                                  :
                                  0602 0644
                                  $41.00 $45.10
                                  1
                                • Thermocouples
                                  Thermocouple with TC adapter, flexible, length 1500 mm
                                  Flexible thermoelectric couple (TC type K, glass fibre) – measuring range -50 to +400°C
                                    :
                                    0602 0645
                                    $66.00 $72.60
                                    1
                                  • Thermocouples
                                    Thermocouple with TC adapter, flexible, 1500 mm long, PTFE
                                    Flexible thermoelectric couple (TC type K, PTFE) – measuring range -50 to +250°C
                                      :
                                      0602 0646
                                      $68.00 $74.80
                                      1

                                      • immersion/ penetration probes

                                    • immersion/ penetration probes
                                      Efficient and fast-action immersion probe, waterproof
                                      Flexible, fast-action immersion probe (TC type K) – measuring range: -60 to +1000 °C
                                        :
                                        0602 0593
                                        $223.00 $245.30
                                        1
                                      • immersion/ penetration probes
                                        Fast-action, waterproof immersion/penetration probe
                                        Fast-action immersion/penetration probe (TC type K) – measuring range: -60 to +800 °C
                                          :
                                          0602 2693
                                          $270.00 $297.00
                                          1
                                        • immersion/ penetration probes
                                          Tauch-Messspitze, biegsam, TE Typ K
                                          Immersion measuring tip with TC plug type K - for fast temperature measurements
                                            :
                                            0602 5792
                                            $66.00 $72.60
                                            1
                                          • immersion/ penetration probes
                                            Immersion measurement tip, flexible, for measurements in air
                                            Flexible immersion measuring tip (TC type K) - Measuring range: -40 to +1000°C
                                              :
                                              0602 5693
                                              $115.00 $126.50
                                              1
                                            • immersion/ penetration probes
                                              Waterproof immersion/penetration probe, TC Type K
                                              Waterproof immersion/penetration probe (TC type K) – measuring range -60 to +400 °C
                                                :
                                                0602 1293
                                                $101.00 $111.10
                                                1
                                              • immersion/ penetration probes
                                                Flexible, low-mass immersion measurement tip
                                                Exceptionally fast temperature probe (TC Type K)
                                                  :
                                                  0602 0493
                                                  $300.00 $330.00
                                                  1
