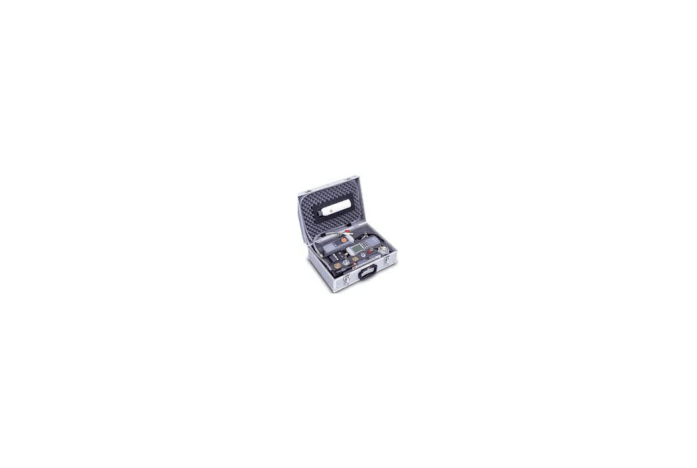

    Testing system set

    0563 0314
    testing system set:
    testo 312-3 pressure meter
    testo 312 TopSafe
    fast printer
    testo 316-1 gas leak detector
    316-1 TopSafe
    pressure drop test set 200mbar
    testing pump
    single-pipe counter cap
    two valve T-fitting
    single valve barrier
    connection hose LW6
    conical test plugs 1/2, 3/4
    high pressure stage stops 3/8, 3/4, 1/2, 1
    leak detection spray
    system case
    Quick and efficient. You can test the stability and pressure drop in gas and water pipes quickly, conveniently and efficiently using the electronic testo 312 pressure gauge. The results are printed out on the Testo printer.

    General technical data

    Dimensions
    215 x 68 x 47 mm
    Operating temperature
    5 {#0} to +45 {٪S2}
    Product-/housing material
    ABS
    Miscellaneous
    Measurement range can be switched from ±40 hPa to ±200 hPa Adjustment step: 0.01 hPa or 5 hPa
    Alarm function
    audible; Optical
    Alarm untere Grenze
    -0.04 hPa
    Alarm upper threshold
    100 hPa
    Battery type
    9V block battery
    Display type
    LCD
    Display size
    2 lines
    Storage temperature
    -20 to +60 {٪S2}
    Weight
    300 g

    Pressure measurement

    Measuring range
    -300 to +300 hPa
    3000 to +3000 hPa
    Accuracy
    ±4 % of mv (+2000 to +6000 )
    ±4 hPa (0 to +400 hPa)
    ±1.5 % of mv >50 hPa
    ±0.5 hPa (0 to +50 hPa)
    ±2 % of mv (+400 to +2000 )
    Resolution
    1 hPa (-6000 to +6000 hPa)
    0 hPa (-300 to +300 hPa)
    Overload rel. (low pressure)
    8000
    Overload rel. (high pressure)
    8000 hPa
