testo Smart Probes HVAC/R Ultimate kit

0563 0002 32

testo Smart Probes HVAC/R Ultimate kit

0563 0002 32

For all measurements involving heating, air-conditioning, refrigeration and ventilation systems

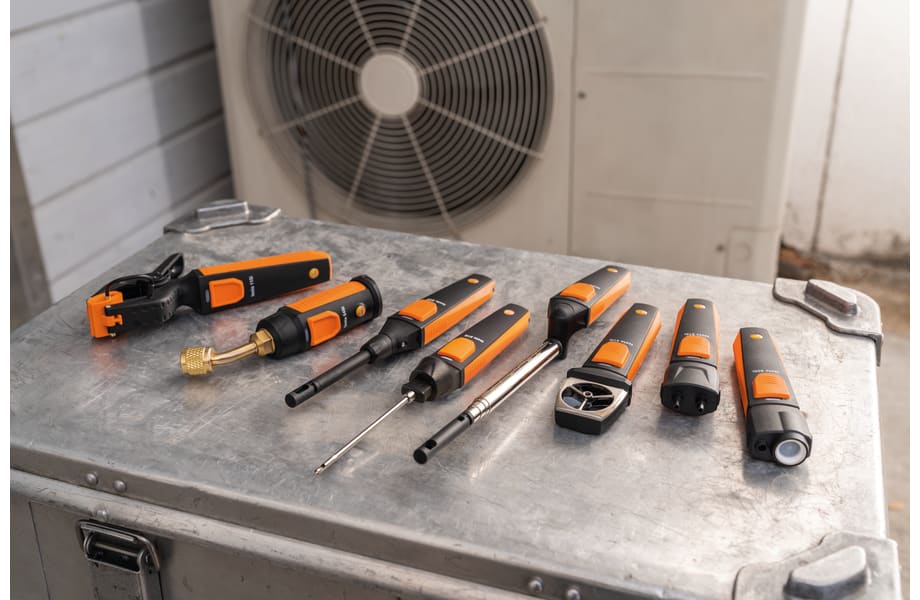

All Smart Probes for temperature, pressure, humidity and flow in one kit

Display of measurement data progression as a graph or table

Transmission and analysis of measurement data via testo Smart App

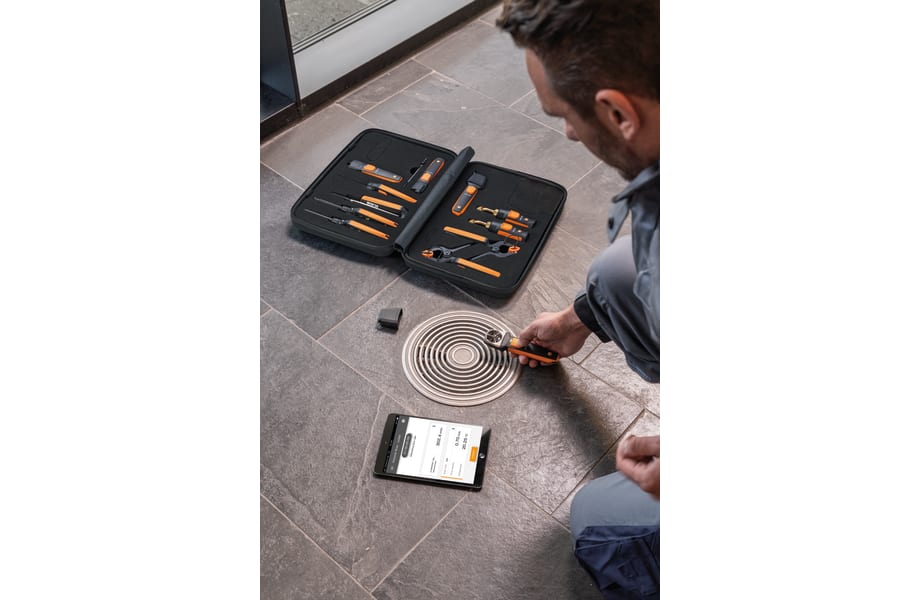

Ultimate kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation: The kit contains all the testo Smart Probes and is ideal for carrying out functional checks or for plant maintenance, in conjunction with your smartphone/tablet. The testo Smart App enables you to work more easily and efficiently: Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating power or differential temperature. Measurement data reports can be emailed directly as a PDF or Excel file.

2 x testo 115i clamp thermometers operated via smartphone, including batteries and calibration protocol (0560 2115 02)
2 x testo 549i high-pressure gauges operated via smartphone, including batteries and calibration protocol (0560 2549 02)
2 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
1 x testo 915i thermometer with air probe (TC type K) operated via smartphone, including batteries and calibration protocol (563 3915)
1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
1 x testo 405i thermal anemometer operated via smartphone, including batteries and calibration protocol (0560 1405)
1 x testo 410i vane anemometer operated via smartphone, including batteries and calibration protocol (0560 1410)
1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)

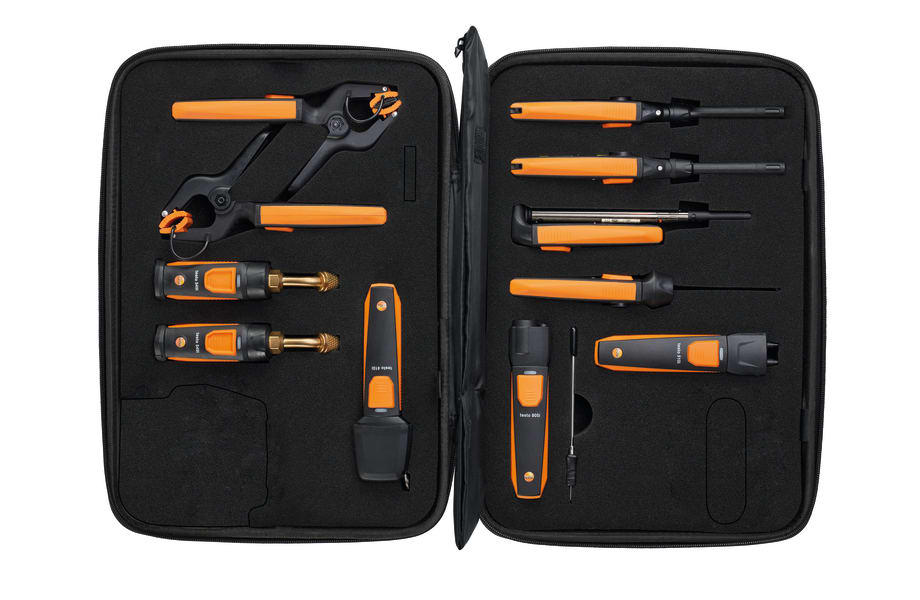

1 x testo HVAC softcase, including foam insert (0516 0283)

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

testo 549i - High-pressure gauge operated via smartphone

: 0560 2549 02

testo 605i - thermohygrometer operated via smartphone

: 0560 2605 02

testo 915i - Thermometer with air probe (TC type K) and smartphone operation

: 0563 3915

testo 805i – infrared thermometer with smartphone operation

: 0560 1805

testo 405i – thermal anemometer with smartphone operation

: 0560 1405

testo 510i – differential pressure measuring instrument with smartphone operation

: 0560 1510

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

: 0516 0283

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

testo 549i - High-pressure gauge operated via smartphone

0560 2549 02

Pressure measurement

Measuring range	-1 to +60 bar
Accuracy	±0.5 % of fsv
Resolution	0.01 bar
Probe connection	7 / 16 " - UNF
Overload rel. (high pressure)	+65 bar

General technical data

Weight	156.6 g
Dimensions	125 x 32 x 31 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	130 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Pressure media	CFC, HFC, HCFC, N, H₂O, CO₂
Storage temperature	-20 to +60 °C

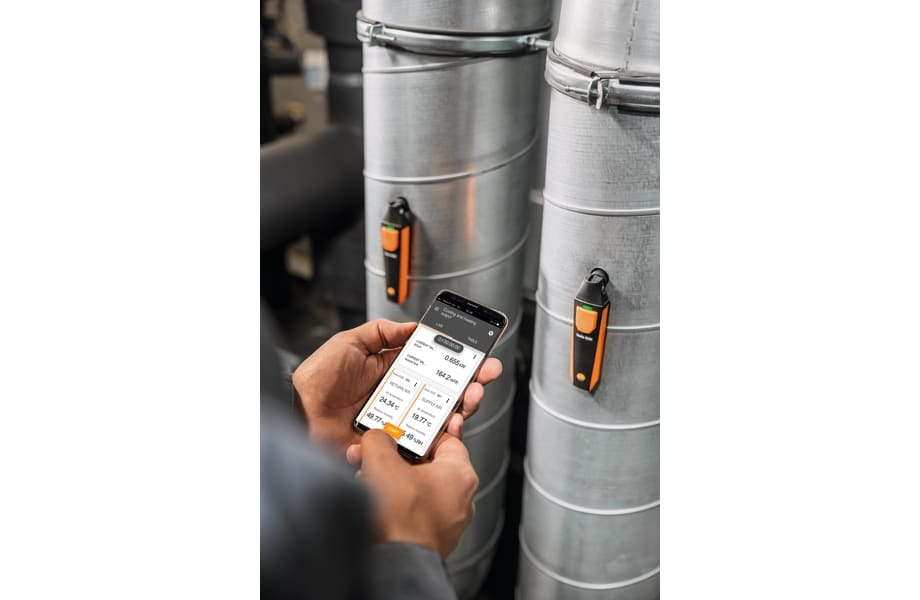

testo 605i - thermohygrometer operated via smartphone

0560 2605 02

Temperature - NTC

Measuring range	-20 to +60 °C
Accuracy	±0.8 °C (-20 to 0 °C) ±0.5 °C (0 to +60 °C)
Resolution	0.1 °C

Humidity - Capacitive

Measuring range	0 to 100 %RH
Accuracy	Hysteresis: ±1.0 %RH ±2.0 %RH (35 to 65 %RH) (at +25°C) long-term stability: ±1 %RH / year ±5 %RH (< 10 %RH or > 90 %RH) ±3.0 %RH (65 to 90 %RH) (at +25°C) ±3.0 %RH (10 to 35 %RH) (at +25°C)
Resolution	0.1 %RH

General technical data

Weight	86.4 g
Dimensions	218 x 30 x 27 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Length probe shaft	100 mm
Data transfer	Bluetooth®
Radio range	100
Storage temperature	-20 to +60 °C

testo 915i - Thermometer with air probe (TC type K) and smartphone operation

0563 3915

Temperature - TC Type K (NiCr-Ni)

Measuring range	-50 to +400 °C
Accuracy	±1 % of mv (Remaining Range) ±1.0 °C (-50 to +100 °C)
Resolution	0.1 °C
Reaction time	t₉₀: 60 s

General technical data

Weight	Bluetooth® handle: 88 g air probe: 11 g
Dimensions	Bluetooth® handle: 129 x 31 x 31 mm (LxWxH)
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
Protection class	IP20
System requirements	requires iOS 13.0 or newer; requires mobile end device with Bluetooth 4.2; requires Android 8.0 or newer
Product colour	black/orange
Plug-in probe connection	Lockable connection to 4 standard probes testo 915i; Standard plug-in connection to other common TC probes
Diameter probe shaft	4 mm
Length probe shaft	99 mm
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®; automatic connection to testo Smart App and Testo measuring instruments
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

testo 805i – infrared thermometer with smartphone operation

0560 1805

Temperature - Infrared

Measuring range	-30 to +250 °C
Accuracy	±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C)
Resolution	0.1 °C

General technical data

Weight	97 g
Dimensions	140 x 36 x 25 mm
Operating temperature	-10 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	30 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C

testo 405i – thermal anemometer with smartphone operation

0560 1405

Temperature - NTC

Measuring range	-20 to +60 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

Velocity - Hot wire

Measuring range	0 to 30 m/s
Accuracy	±(0.1 m/s + 5 % of mv) (0 to 2 m/s) ±(0.3 m/s + 5 % of mv) (2 to 15 m/s)
Resolution	0.01 m/s

General technical data

Weight	119.6 g
Dimensions	200 x 30 x 41 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	15 h
Battery type	3 AAA micro batteries
Diameter probe shaft	12 mm
Diameter probe shaft tip	9 mm
Length probe shaft	400 mm
Storage temperature	-20 to +60 °C

testo 510i – differential pressure measuring instrument with smartphone operation

0560 1510

Differential pressure (internal sensor) - Piezoresistive

Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

General technical data

Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C
