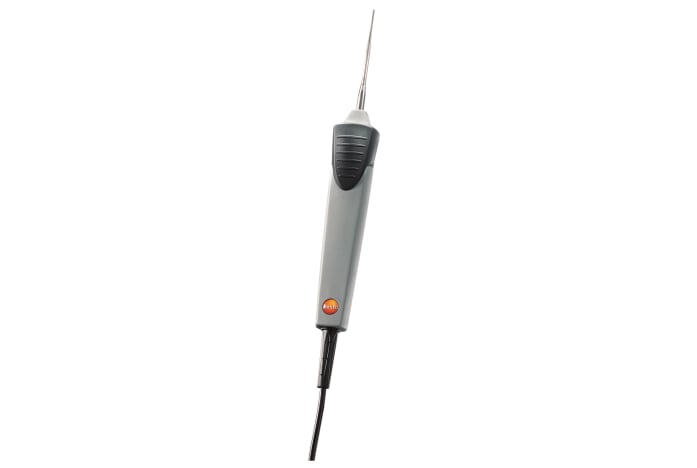

    Fast-action immersion/penetration probe (TC type K)

    0602 2693
  1. 1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
  2. Very short response time of 3 seconds
  3. Measuring range: -60 to +800 °C
  4. Splash-proof in accordance with IP54
  5. Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.
    The immersion and penetration probe (thermocouple type K) is used primarily for measurements in water, to ensure that heating systems are configured correctly.

    The very slim probe tip guarantees fast temperature recording. The probe reacts really quickly, with a response time of three seconds. In addition, the probe is splash-proof in accordance with protection class IP54.

    Fast-action immersion/penetration probe (TC type K) with fixed cable 1.2 m.

  6. Set testo 830-T4 - Infrared thermometer
    Set testo 830-T4 - Infrared thermometer
      :
      0563 8314
    • testo 108 - Digital food thermometer
        :
        0563 1080
      • testo 175 T3
        testo 175 T3 - Temperature logger
          :
          0572 1753
        • testo 176 T3
          testo 176 T3 - Temperature data logger
            :
            0572 1763
          • testo 176 T4
            testo 176 T4 - Temperature data logger
              :
              0572 1764
            • testo 440 Air velocity and IAQ measuring instrument
              testo 440 - Air velocity and IAQ measuring instrument
                :
                0560 4401
              • testo 440 100 mm Vane Kit with Bluetooth®
                testo 440 100 mm Vane Kit with Bluetooth®
                  :
                  0563 4403
                • testo 440 16 mm Vane Kit
                  testo 440 16 mm Vane Kit
                    :
                    0563 4401
                  • testo 440 Air Flow ComboKit 1 with Bluetooth®t 1 with Bluetooth
                    testo 440 Air Flow ComboKit 1 with Bluetooth®
                      :
                      0563 4406
                    • testo 440 Air Flow ComboKit 2 with Bluetooth®
                      testo 440 Air Flow ComboKit 2 with Bluetooth®
                        :
                        0563 4407
                      • testo 440 CO2 Kit with Bluetooth®
                        testo 440 CO₂ Kit with Bluetooth®
                          :
                          0563 4405
                        • testo 440 Hot Wire Kit
                          testo 440 Hot Wire Kit
                            :
                            0563 4400
                          • testo 440 Humidity Kit with Bluetooth®
                            testo 440 Humidity Kit with Bluetooth®
                              :
                              0563 4404
                            • testo 440 Indoor Comfort ComboKit with Bluetooth®
                              testo 440 Indoor Comfort ComboKit with Bluetooth®
                                :
                                0563 4408
                              • testo 440 Lux Kit
                                testo 440 Lux Kit
                                  :
                                  0563 4402
                                • testo 440 dP Air velocity and IAQ measuring instrument including differential pressure sensor
                                  testo 440 dP - Air velocity and IAQ measuring instrument including differential pressure sensor

                                    :
                                    0560 4402
                                  • testo 440 Delta P Air Flow ComboKit 1 with Bluetooth®
                                    testo 440 delta P Air Flow ComboKit 1 with Bluetooth®
                                      :
                                      0563 4409
                                    • testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
                                      testo 440 delta P Air Flow ComboKit 2 with Bluetooth®
                                        :
                                        0563 4410
                                      • testo 440 Laboratory kit
                                        testo 440 laboratory kit
                                          :
                                          0563 4412
                                        • testo 635-1
                                          testo 635-1 - temperature and humidity measuring instrument
                                            :
                                            0560 6351
                                          • testo 635-2
                                            testo 635-2 - Temperature and moisture meter
                                              :
                                              0563 6352
                                            • testo 635-2 U-value promo set
                                              testo 635-2 U-value promo set - thermohygrometer set
                                                :
                                                0563 6353
                                              • testo 735-1
                                                testo 735-1 - Temperature measuring instrument (3-channel)
                                                  :
                                                  0560 7351
                                                • testo 735-1
                                                  testo 735-2 - Multichannel thermometer
                                                    :
                                                    0563 7352
                                                  • testo 830-T2
                                                    testo 830-T2 - Infrared thermometer
                                                      :
                                                      0560 8312
                                                    • Infrared thermometer testo 830-T2 kit
                                                      testo 830-T2 kit - Infrared thermometer
                                                        :
                                                        0563 8312
                                                      • testo-830-T4-infrared-thermometer
                                                        testo 830-T4 - Infrared thermometer
                                                          :
                                                          0560 8314
                                                        • testo 835-H1
                                                          testo 835-H1 - Infrared thermometer plus moisture measuring
                                                            :
                                                            0560 8353
                                                          • testo 835-T1
                                                            testo 835-T1 - Infrared thermometer
                                                              :
                                                              0560 8351
                                                            • testo 835-T2
                                                              testo 835-T2 - Infrared thermometer
                                                                :
                                                                0560 8352
                                                              • testo 915i temperature kit
                                                                testo 915i temperature kit - Thermometer with temperature probes and smartphone operation
                                                                  :
                                                                  0563 5915
                                                                • testo 400 Universal IAQ instrument
                                                                  testo 400 - Universal IAQ instrument
                                                                    :
                                                                    0560 0400
                                                                  • testo 400 IAQ and comfort kit with tripod
                                                                    testo 400 IAQ and comfort kit with tripod
                                                                      :
                                                                      0563 0401
                                                                    • testo 400 air flow kit with 16 mm vane probe
                                                                      testo 400 air flow kit with 16 mm vane probe
                                                                        :
                                                                        0563 0400 72
                                                                      • testo 400 air flow kit with hot wire probe
                                                                        testo 400 air flow kit with hot wire probe
                                                                          :
                                                                          0563 0400 71
                                                                        • testo 915i
                                                                          testo 915i - Thermometer with immersion/penetration probe and smartphone operation
                                                                            :
                                                                            0563 1915
                                                                          • testo 915i
                                                                            testo 915i - Thermometer with air probe and smartphone operation
                                                                              :
                                                                              0563 3915
                                                                            • testo 915i
                                                                              testo 915i - Thermometer with flexible probe and smartphone operation
                                                                                :
                                                                                0563 4915
                                                                              • testo 915i
                                                                                testo 915i - Thermometer with surface probe and smartphone operation
                                                                                  :
                                                                                  0563 2915
                                                                                • testo 922
                                                                                  testo 922 - Differential temperature measuring instrument for TC Type K with App connection
                                                                                    :
                                                                                    0563 0922
                                                                                  • testo 925
                                                                                    testo 925 - Temperature measuring instrument for TC Type K with App connection
                                                                                      :
                                                                                      0563 0925
                                                                                    • testo Smart Probes HVAC/R Ultimate kit
                                                                                      testo Smart Probes HVAC/R Ultimate kit
                                                                                        :
                                                                                        0563 0002 32
                                                                                      • testo Smart Probes HVAC kit
                                                                                          :
                                                                                          0563 0010
                                                                                        • Temperature - TC Type K (NiCr-Ni)

                                                                                          Measuring range
                                                                                          -60 to +800 °C
                                                                                          Accuracy
                                                                                          Class 1 ¹⁾
                                                                                          Reaction time
                                                                                          3 s
                                                                                          1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

                                                                                          General technical data

                                                                                          Weight
                                                                                          150 g
                                                                                          Product-/housing material
                                                                                          Plastic
                                                                                          Protection class
                                                                                          IP54
                                                                                          Product colour
                                                                                          grey; Black; silver
                                                                                          Length probe shaft tip
                                                                                          14 mm
                                                                                          Diameter probe shaft
                                                                                          5 mm
                                                                                          Diameter probe shaft tip
                                                                                          1.5 mm
                                                                                          Cable length
                                                                                          1.5 m
                                                                                          Length probe shaft
                                                                                          60 mm
