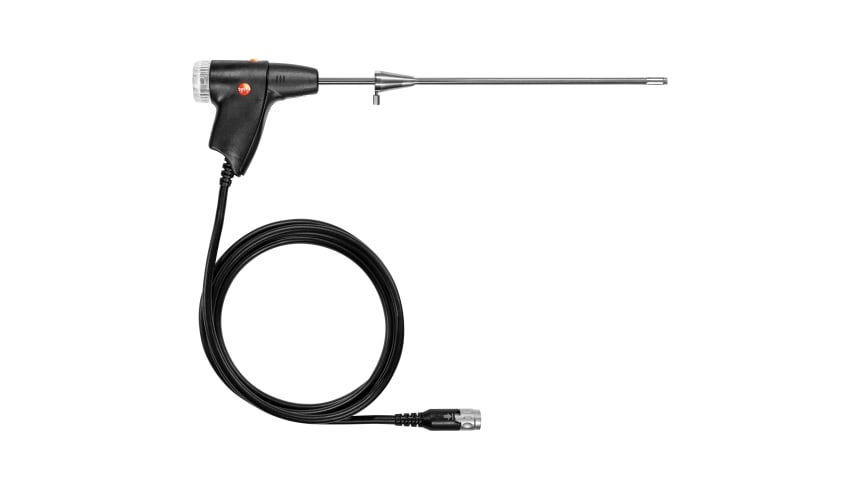

    Modular flue gas probe, 335 mm, Ø 8 mm, Tmax 500 °C

    0600 9766
    0600-9766-modular-flue-gas-probe
    1
  1. Quick-Change Click System – Effortlessly replace the probe shaft for increased flexibility and convenience.
  2. NO2/SO2 Special Hose – Includes a 2.2 m hose designed for precise NO2 and SO2 measurement.
  3. Secure Bayonet Connection – Easily attach the flue gas path and temperature channel to the instrument.
  4. High-Temperature Capability – Integrated thermocouple enables temperature measurements up to 500 °C.
    5. The modular flue gas probe (335 mm, Ø 8 mm) is a high-precision measurement tool designed for industrial applications. Featuring an integrated thermocouple for temperature readings up to 500 °C, a quick-change click system for effortless shaft replacement, and a secure bayonet lock for easy instrument connection, this probe ensures efficiency, accuracy, and durability.
    On the modular flue gas probe with 335 mm long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500 °C. The probe is also supplied with a cone for attachment.

    Modular flue gas probe 335 mm including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 500 °C and NO2/SO2 special hose 2.2 m.

    General technical data

    Weight
    544 g
    Length probe shaft
    335 mm
    Product-/housing material
    Metal housing
    Cable length
    2.2 m
    Diameter probe shaft
    8 mm
    Temperature maximum
    500 °C
    Product colour
    Black; silver
