testo 550i - Heat pump kit
300564 3550 02testo 550i - Heat pump kit
300564 3550 02Compact design designed for control via smartphone/tablet
IP54 protection for outdoor use
Suitable for use on monobloc or split heat pump systems
Supplied with testo 770-3 clamp meter for compressor current testing
Simple digital documentation and 'on-site' reporting via bluetooth connection to free Testo Smart App.

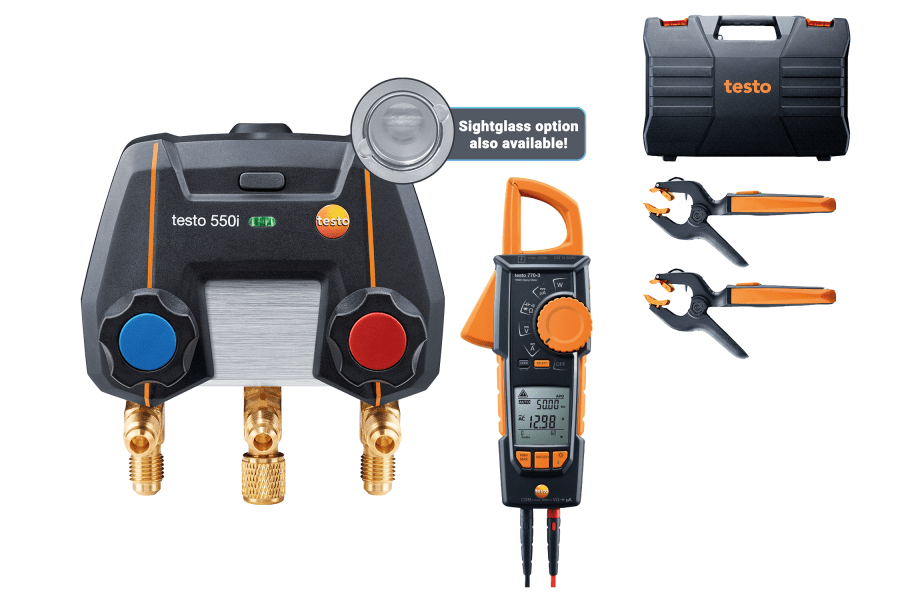

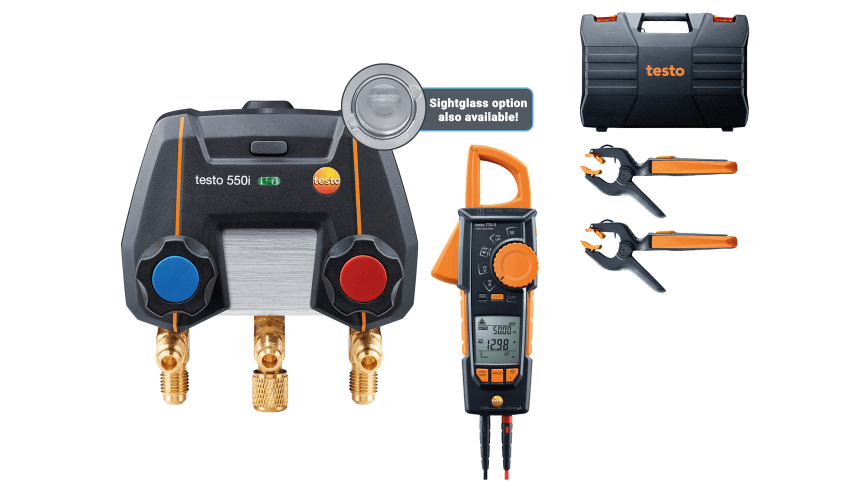

The kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app-controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook. For wireless temperature measurement on either flow/return pipework or for superheat/subcooling calculation, the 2 x testo 115i Smart Probes supplied allow simple and effective measurement, and the testo 770-3 clampmeter can be used for compressor current measurenet and other electrical testing. You’ll be ideally equipped to carry out your measuring tasks on either monobloc or split system Heat Pumps ,and the kit can also be used for general refrigeration and air-conditining service applications as well.

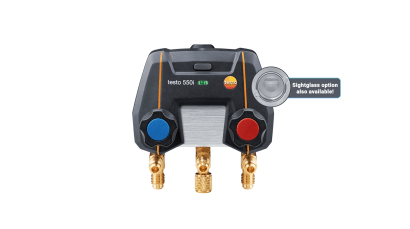

- testo 550i digital 2-way manifold (without sightglass) including batteries (3 x AAA) and calibration protocol for use with testo Smart App (free download).
- 2 x testo 115i bluetooth pipe clamp thermometers
- 1 x testo 770-3 clampmeter
- Carry case
- User guides
Pressure measurement
| Measuring range | -1 to 60 bar |
|---|---|
| Accuracy | ±0.5 % fs |
| Resolution | 0.01 bar |
| Probe connection | 3 x 7/16" – UNF |
| Overload rel. (high pressure) | 65 bar |
General technical data
| Weight | 595 g |
|---|---|
| Dimensions | 77 x 109 x 63 mm |
| Operating temperature | -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | Black |
| Auto-off | 10 |
| Battery life | 130 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 150 m |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (Hâ‚‚O); R744 (COâ‚‚) |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
| * when not connected via Bluetooth | |
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
Humidity probes
Humidity probes
testo 605i - thermohygrometer operated via smartphone
:
0560 2605 02
0560 2605 02
£ 99.00 £ 118.80
1
Pressure probes
Pressure probes
testo 552i - App-controlled wireless vacuum probe
:
0564 2552
0564 2552
£ 144.00 £ 172.80
1
Temperature probes
Temperature probes
testo 115i - Clamp thermometer operated via smartphone
:
0560 2115 02
0560 2115 02
£ 69.00 £ 82.80
1
Temperature probes
testo 915i with flexible temperature probe (TC type K) and smartphone operation
:
0563 4915
0563 4915
£ 79.00 £ 94.80
1
Sets
Sets

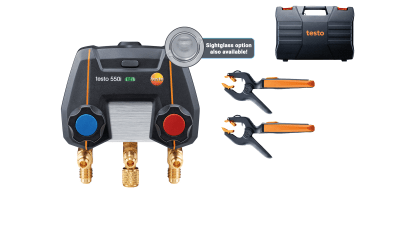

testo 550i Smart Kit – App-controlled digital manifold with wireless clamp temperature probes
:
0564 3550 02
0564 3550 02
£ 235.00 £ 282.00
1
Sets
testo Smart Probes heating kit operated via smartphone
:
0563 0004 10
0563 0004 10
£ 255.00 £ 306.00
1
Sets
testo Smart Probes AC and refrigeration test kit operated via smartphone
:
0563 0002 10
0563 0002 10
£ 295.00 £ 354.00
1
Sets
testo Smart Probes AC and refrigeration test kit plus, operated via smartphone
:
0563 0002 41
0563 0002 41
£ 495.00 £ 594.00
1
Sets
testo Smart Probes HVAC/R Ultimate kit operated via smartphone
:
0563 0002 32
0563 0002 32
£ 849.00 £ 1,018.80
1
Accessories
Accessories
testo 560i kit - Digital refrigerant scale and intelligent valve for automatic charging of refrigeration systems and heat pumps
:
0564 2560
0564 2560
£ 349.00 £ 418.80
1
Accessories
testo 560i - Digital refrigerant scale with Bluetooth
:
0564 1560
0564 1560
£ 225.00 £ 270.00
1
Accessories
testo Smart App with the full range of functions - available as a free download
:
0501 5001
0501 5001
Accessories
Free download: testo DataControl PC software
:
0501 4000
0501 4000
Accessories
Magnetic strap – for digital manifolds
:
0564 1001
0564 1001
£ 43.00 £ 51.60
1
Accessories
Transport case – for digital manifolds
:
0516 2012
0516 2012
£ 88.00 £ 105.60
1
Accessories
Clip Split Pin for Digital Manifold
:
0173 0180
0173 0180
£ 1.80 £ 2.16
1
Accessories
Main Knob for Manifold
:
0192 1304
0192 1304
£ 2.00 £ 2.40
1
Accessories
Blue Cap for Main Knob on Manifold
:
0192 1306
0192 1306
£ 2.00 £ 2.40
1
Accessories
Red Cap for Main Knob on Manifold
:
0192 1305
0192 1305
£ 1.80 £ 2.16
1
Accessories
Black Cap for Main Knob on Manifold
:
0192 1382
0192 1382
£ 2.00 £ 2.40
1
Accessories
testo Smart Case “Refrigeration” – storage case for Smart Probes measuring instruments
:
0516 0240
0516 0240
£ 29.00 £ 34.80
1
Accessories
testo Smart Case “Heating” – storage case for Smart Probes measuring instruments
:
0516 0270
0516 0270
£ 29.00 £ 34.80
1
Accessories
testo HVAC softcase storage case: for testo Smart Probes measuring instruments
:
0516 0283
0516 0283
£ 49.00 £ 58.80
1
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
