testo 327 - Flue Gas Analyser (advanced kit + gas leak detector)

300563 2327

£ 735.00 £ 882.00

testo 327 - Flue Gas Analyser (advanced kit + gas leak detector)

300563 2327

Robust & reliable

Best value flue gas analyser on the market

Measures O₂ & CO, will calculate ratio, CO₂, and more

Soft carry case with shoulder strap

Gas leak detector

Designed for domestic boiler service, the testo 327 offers users a rugged and reliable instrument for flue gas analysis and measurement.

This kit also includes the new testo gas leak detector which allows simple and effective leak detection of methane, propane, butane, and hydrogen gases.

The testo 327-1 Flue Gas Analyser offers a robust and simple entry into flue gas analysis for domestic boilers. It measures O2 & CO , and will calculate ratio, CO2, etc. The 4-line LED display can be configured to the users requirements, and its back-lighting function guarantees an easy-to-read display even if lighting conditions are unfavourable. The analyser stands out on account of its easy menu navigation and ergonomic housing as well as its durability.

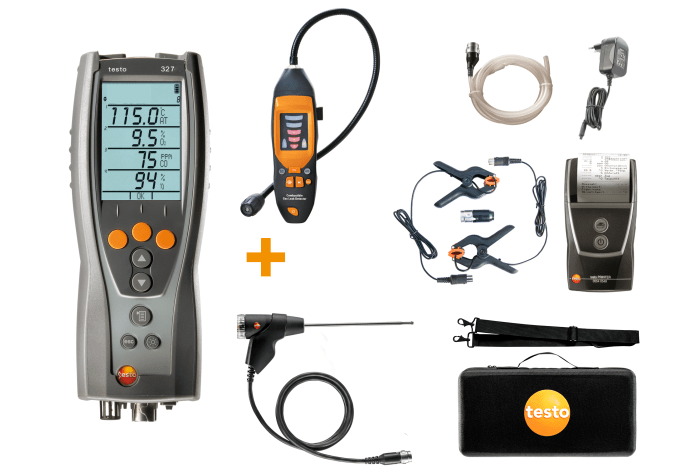

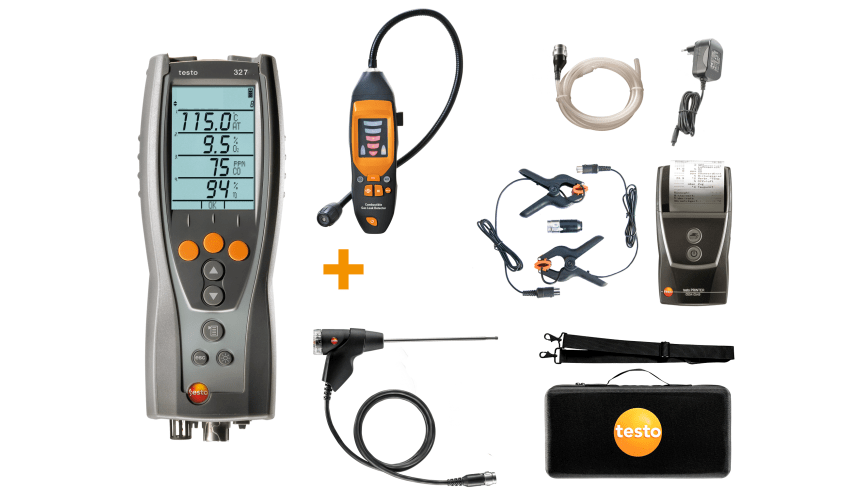

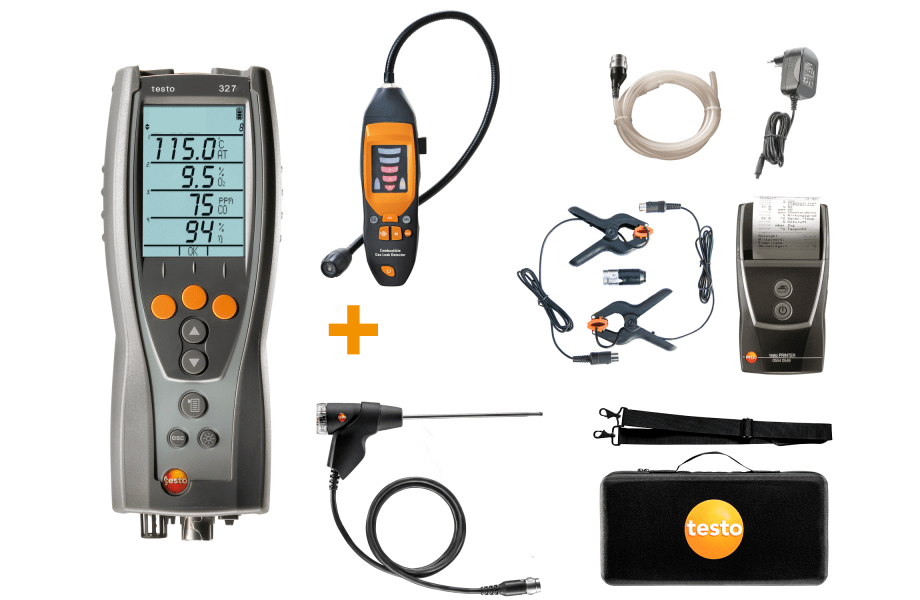

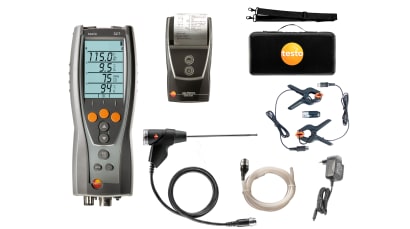

testo 327 Flue Gas Analyser, testo gas leak detector, rechargeable battery and calibration protocol, Flue Gas Probe (180mm x 6mm diameter), Pressure hose connection kit, Differential temperature kit (2 x pipe clamp probes), testo infrared printer, soft carry case with shoulder strap, AC power supply.

: 0563 3203 81

Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter

: 0600 9740

Instrument bag with carrying strap

: 0516 3001

testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle

testo fast printer IRDA

: 0554 0549

: 0554 7223

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

: 0554 1203

0563 3203 81

General technical data

Weight	(with probe) Approx. 700 g
Dimensions	201 x 83 x 44 mm
Operating temperature	-5 to +45 °C
Display type	LCD (Liquid Crystal Display)
Display function	Backlit 2-line display
Power supply	Battery: 1500 mAh, mains unit 5V/1A
Storage temperature	-20 to +50 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range	-40.00 to +600.00 °C
Accuracy	±0.50 °C (0 to 99.90 °C) ±0.50 °C (100 to 600 °C)
Resolution	0.1 °C
Reaction time	< 50 s
Temperature (ambient temperature)

Flue gas O₂

Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	30 s

Differential Pressure flue gas Draught - Piezoresistive

Measuring range	-40.0 to +40.0 hPa
Accuracy	±0.02 hPa (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.50 % of mv (3.01 to +40.0 hPa)

Flue gas degree of effectivity, Eta (calculated)

Measuring range	0 to 120 %
Resolution	0.1 %

Flue gas loss (calculated)

Measuring range	0 to 99.0 %
Resolution	0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Measuring range	0 to CO₂ max (Display range)
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	< 40 s

Flue gas CO (without H₂-compensation)

Measuring range	0 to 4000 ppm
Accuracy	±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm)
Resolution	1 ppm
Reaction time t₉₀	60 s
