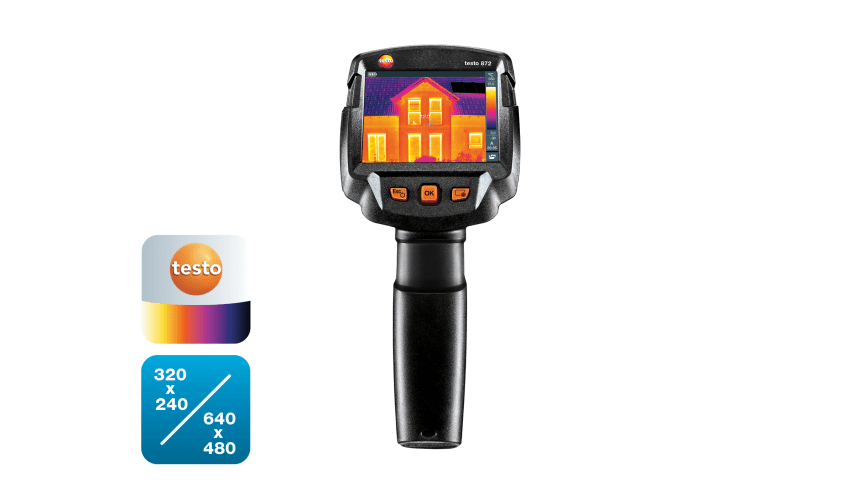

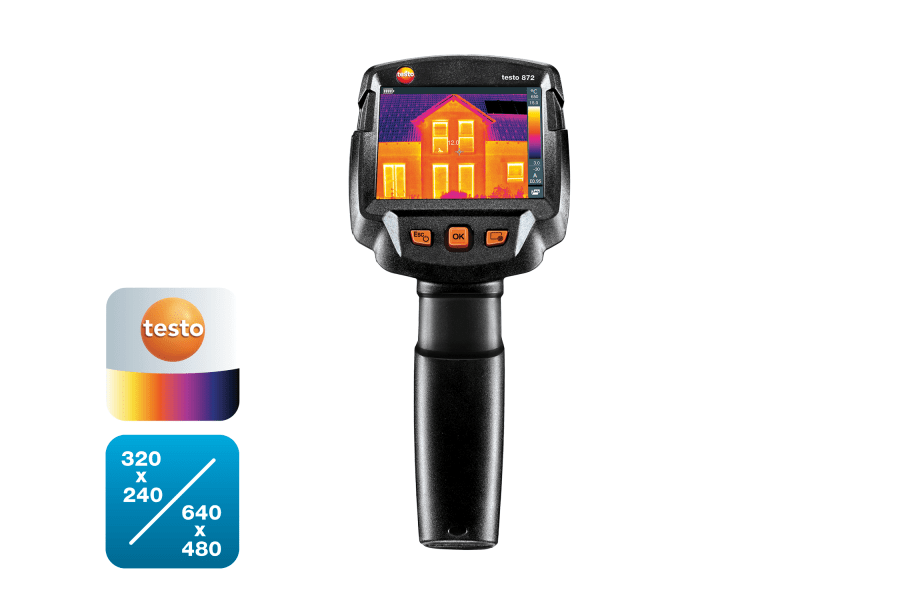

    testo 872s - Thermal imaging camera (320 x 240 pixels, App, laser)

    0560 8725
    1
  1. Ultra-Sharp Thermal Resolution – 320 x 240 pixel infrared resolution (upgradable to 640 x 480 pixels with SuperResolution technology) ensures crisp, detailed images.
  2. Integrated Laser Marker & Digital Camera – Highlights precise measuring points in the thermal image for better accuracy and documentation.
  3. Multi-Device Wireless Integration – Connects via Bluetooth to the testo 770-3 Clamp Meter and testo 605i Thermohygrometer for comprehensive thermal analysis.
  4. Precise Temperature Detection – Thermal sensitivity of 0.05°C ensures even the slightest temperature differences are visible.
  5. App Connectivity – Use the testo Thermography App for remote control, second display functionality, and instant report creation.
    6. The testo 872s is a high-performance thermal imaging camera designed for industrial and building diagnostics. With a 320 x 240 pixel infrared resolution (upgradable to 640 x 480 pixels), an integrated laser marker, and Wi-Fi connectivity, it ensures real-time remote control and reporting via the testo Thermography App. Automatic emissivity correction (É›-Assist) and ScaleAssist provide consistently accurate thermal images. Bluetooth integration enables seamless connection with the testo 770-3 Clamp Meter and testo 605i Thermohygrometer for comprehensive measurement capabilities. Built for durability, its IP54-rated housing and 4-hour battery life support extended field use.
    • not available
      Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

      Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

    The testo 872s Thermal Imaging Camera is designed for professionals who require high-resolution thermal imaging, smart connectivity, and precision measurement integration. With an infrared resolution of 320 x 240 pixels (enhanced to 640 x 480 pixels with SuperResolution), this camera captures sharp, detailed thermal images, making it ideal for HVAC, electrical, industrial maintenance, and building inspections.

    Equipped with a wide temperature measurement range (-30°C to 650°C) and an impressive 50mK thermal sensitivity, the testo 872s detects even the smallest temperature differences (0.06°C), allowing for accurate diagnosis of insulation defects, electrical faults, and mechanical issues. The wide 42° x 30° field of view ensures fast and efficient scanning of large areas.

    The testo 872s is Wi-Fi enabled, allowing for seamless data transfer and real-time report generation via the testo Thermography App (available for iOS and Android). The app provides: Live second display on a smartphone or tablet, Remote camera operation and On-site report creation and sharing.

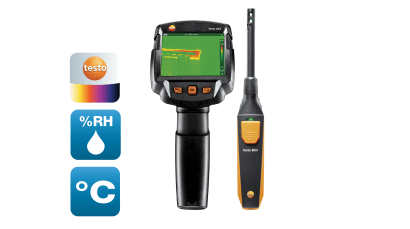

    Additionally, the testo 872s connects via Bluetooth to the testo 770-3 Clamp Meter and testo 605i Thermohygrometer. The testo 770-3 allows you to capture electrical current and voltage data for comprehensive system analysis. the testo 605i allows you to record ambient temperature and humidity conditions for advanced building diagnostics and automatically detect mould risk using the humidity traffic light function.

    The built-in laser marker projects a visible measuring point onto the target, which is precisely displayed in the thermal image for accurate documentation and analysis. The integrated digital camera captures standard images alongside thermal images, making it easier to compare, analyse, and report findings.

    The testo ScaleAssist and É›-Assist functions optimize colour scale settings and emissivity adjustments, ensuring consistent, error-free, and objective thermal images. Automatic hot/cold spot detection instantly identifies critical temperature variations. The IFOV warning system prevents measurement errors by displaying the correct measurement spot size in real-time. A 2x digital zoom and multiple colour palettes provide flexibility in viewing thermal anomalies, while on-screen area measurement enhances analysis accuracy.

    testo 872s thermal imager with radio module for Bluetooth/WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.

    Standards

    EU-/EG-guidelines
    RED: 2014/53/EU; EMC: 2014/30/EU

    Infrared image output

    Field of view
    42° x 30°
    Focus
    Fixed focus
    Minimum focus distance
    <0.5 m
    Geometric resolution (IFOV)
    2.3 mrad
    Image refresh rate
    9 Hz
    Infrared resolution
    320 x 240 pixel
    SuperResolution (IFOV)
    1.3 mrad
    SuperResolution (Pixel)
    640 x 480 pixels
    Thermal sensitivity
    <0.05 °C (50 mK)
    Spectral range
    7.5 to 14 µm

    Image output visual

    Minimum focus distance
    min. 0.5 m
    Image size
    5 MP

    Overview of applications

    Preventive maintenance

    Detecting structural defects and ensuring construction quality

    Professional energy consultation

    Preventing mould formation

    Easy checking of heating systems and installations

    Localize pipe ruptures

    Locating leaks in flat roofs

    More reliability in quality assurance and production monitoring

    Safe high-temperature measurement

    Preventive maintenance

    Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

    • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
    • Avoid expensive damage, downtimes and fire risks on plants and machines
    Electrical maintenance
    • Test switching cabinets, electrical conditions, photovoltaic plants
    • Evaluate heat status in low, medium and high voltage plants
    Mechanical maintenance
    • Identify wear on machines
    • Test motors, bearings, shafts

      Detecting structural defects and ensuring construction quality

      • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
      • Test air-tightness of windows and doors
      • Locate insulation errors and cold bridges in a building shell
      • Detect and visualize mould-risk areas

      Professional energy consultation

      • Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
      • Easy recording and documentation of energy loss from buildings
      • Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
      • Localize untight spots in new buildings quickly and easily in combination with Blower Door

      Preventing mould formation

      • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode

      Easy checking of heating systems and installations

      • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
      • Localization of the course of heating loops in underfloor heating systems
      • Testo radiators for silting
      • Measure flow and return temperatures

      Localize pipe ruptures

      • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
      • Precise localization of leakages in underfloor heating and other inaccessible pipe systems

      Locating leaks in flat roofs

      • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

      More reliability in quality assurance and production monitoring

      • A Testo thermal imager supports in process control and product quality asurance
      • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
      • Fast and easy monitoring of filling level in closed liquid tanks

      Safe high-temperature measurement

      • Measure high temperatures safely from a distance: Some of the thermal imager models from Testo even measure up to 1200 °C with the high-temperature option
      • Ideal for use in industrial maintenance
      • Identify wear, insulation damage and coking in furnaces and smelters
      • Thermography of large furnaces and machines on one thermal image – e.g. rotary kilns in cement production
