testo 300 NEXT LEVEL Longlife kit 2 with printer - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
Product no. 0564 3004 83
testo 300 NEXT LEVEL Longlife kit 2 with printer - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
Product no. 0564 3004 83Your advantages
Intuitive, smart, efficient: intuitive measurement menus, fast-response Smart-Touch operation, efficient, wireless parallel measurement of up to four testo Smart Probes, practical second screen function, on-site documentation, e-mailing of reports
Including O2, CO H2-compensated sensor up to 30,000 ppm (NO sensor - can be retrofitted)
High-quality sensor technology with up to 6 years' service life

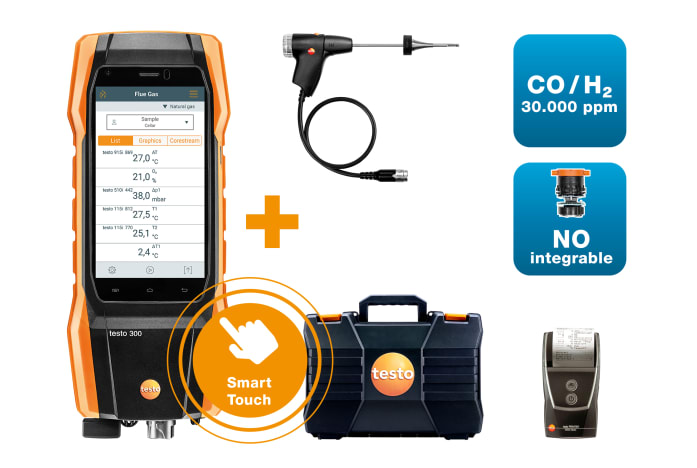

In the kit: testo 300 NEXT LEVEL Longlife flue gas analyzer, including O2 and CO H2-compensated sensor up to 30,000 ppm (NO - can be retrofitted), mains unit, modular flue gas probe, testo Bluetooth® Connector, spare dirt filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, case
Carry out installation and maintenance work on heating systems several times a day using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 NEXT LEVEL Longlife flue gas analyzer is supplied with O2 and CO H2-compensated sensor up to 30,000 ppm (NO - can be retrofitted), TÜV-tested modular flue gas probe, testo Bluetooth® Connector, testo Bluetooth® printer, case and practical accessories.
Description
Delivery Scope
- testo 300 NEXT LEVEL Longlife flue gas analyzer with O2 and CO H2-compensated sensor up to 30,000 ppm, NO - can be retrofitted (0633 3004 83)
- USB mains unit, including cable (0554 1106)
- Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500°C; TÜV tested and certified; 2.2 m hose (0600 9760)
- testo Bluetooth® Connector (0554 3004)
- Spare dirt filters for modular flue gas probe; 10 off (0554 3385)
- BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
- Spare thermal paper for printer, indelible ink (0554 0568)
- Free download EasyHeat PC software (0554 3332)
- Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)
Details on kit components
Details on kit components
Product no.: 0633 3004 83
Details on kit components
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Product no.: 0600 9760
Details on kit components
Spare dirt filters - for probe handle (10 off)
Product no.: 0554 3385
Technical data
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -40 to +1200 °C |
|---|---|
| Accuracy | ±0.5 % of mv (Remaining Range) ±0.5 °C (0.0 to +100.0 °C) |
| Resolution | 1 °C (Remaining Range) 0.1 °C (-40 to +999.9 °C) |
Differential Pressure - Piezoresistive
| Measuring range | -100 to +200 hPa |
|---|---|
| Accuracy | ±1 % of mv (+50.1 to +100.0 hPa) ±0.5 hPa (0 to +50.0 hPa) ±1.5 % of mv (+100.1 to +200 hPa) |
| Resolution | 0.01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Flue gas COlow (with H₂-compensation)
| Measuring range | 0 to 500 ppm |
|---|---|
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0.1 ppm |
CO determination (with H₂-compensation), automatic dilution
| Measuring range | 0 to 30000 ppm |
|---|---|
| Accuracy | ±100 ppm or ±10 % of mv |
| Resolution | 1 ppm |
Flue gas NO
| Measuring range | 0 to 3000 ppm |
|---|---|
| Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
| Resolution | 1 ppm |
Flue gas Nolow
| Measuring range | 0 to 300 ppm |
|---|---|
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39.9 ppm) |
| Resolution | 0.1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | -9.99 to +40 hPa |
|---|---|
| Accuracy | ±0.02 hPa (0.1 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40 hPa) ±0.005 hPa (0 to 0.1 hPa) |
| Resolution | 0.001 hPa (0 to 0.1 hPa) 0.01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0.1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99.9 % |
|---|---|
| Resolution | 0.1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring range | -50 to +50 Pa |
|---|---|
| Accuracy | ±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range) |
| Resolution | 0.1 Pa |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | -5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
| Memory | 1,000,000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | -20 to +50 °C |
| Charging temperature | 0 to +45 °C |
General technical data
| Diameter probe shaft | 8 mm |
|---|---|
| Cable length | 2.2 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 524 g |
General technical data
| Weight | 12 g |
|---|---|
| Dimensions | height: 2.9 mm, ø: 29.7 mm |
| Product colour | white |
General technical data
| Dimensions | 120 x 75 x 60 mm |
|---|---|
| Product-/housing material | paper |
| Product colour | white |
| Weight | 50 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 3880 g |
|---|---|
| Dimensions | 520 x 400 x 130 mm (LxWxH) |
| Product-/housing material | Plastic |
| Product colour | Black |
General technical data
| Weight | 144 g |
|---|---|
| Dimensions | 85 x 55 x 90 mm LxWxH |
| Product colour | Black |
| Cable length | 2 m |
| Power supply | 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
Sensor
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
Product no.:
0632 1272
0632 1272
$880.00with GST $968.00
1
Flue gas probes
Flue gas probes
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Product no.:
0600 9760
0600 9760
$723.00with GST $795.30
1
Flue gas probes
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Product no.:
0600 9761
0600 9761
$740.00with GST $814.00
1
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
Product no.:
0600 9762
0600 9762
$720.00with GST $792.00
1
Further probes
Further probes
Dual wall clearance probe for O2 supply air measurement
Product no.:
0632 1260
0632 1260
$418.00with GST $459.80
1
Further probes
Solid fuel kit - including probe shaft and adapter
Product no.:
0600 9765
0600 9765
$975.00with GST $1 072.50
1
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
Product no.:
0615 5505
0615 5505
$129.00with GST $141.90
1
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
Product no.:
0615 5605
0615 5605
$465.00with GST $511.50
1
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
Product no.:
0615 1212
0615 1212
$188.00with GST $206.80
1
Sets
Sets
Sets
testo 300 NEXT LEVEL Longlife kit 2: Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
Product no.:
0564 3004 82
0564 3004 82
Sets
testo 300 NEXT LEVEL Longlife kit 2 with printer: Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
Product no.:
0564 3004 89
0564 3004 89
Sets
testo 300 NEXT LEVEL Longlife kit 2 with printer: Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
Product no.:
0564 3004 83
0564 3004 83
Accessories
Accessories
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
Product no.:
0554 0307
0554 0307
$271.00with GST $298.10
1
Accessories
Free download: testo EasyHeat PC software
Product no.:
0554 3332
0554 3332
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
Product no.:
0516 3300
0516 3300
$292.00with GST $321.20
1
Certificates
Certificates
ISO flue gas calibration certificate for flue gas analyzers; calibration at 6 measuring points: O2: 2.5 vol% / CO: 100 ppm / CO: 1000 ppm / NO: 800 ppm / NO2: 100 ppm / SO2: 1000 ppm
Product no.:
0520 0055
0520 0055
Measurement cells
Measurement cells
O2 sensor with 4-year warranty
Product no.:
0393 0023
0393 0023
Measurement cells
CO sensor (without H2 compensation) with 4-year warranty
Product no.:
0393 0051
0393 0051
Measurement cells
CO sensor (without H2 compensation) with 2-year warranty
Product no.:
0393 0053
0393 0053
Applications
Flue gas measurement on heating systems
Ideal for measurements involving heating systems:
- high-quality Longlife sensors with a service life of up to 6 years, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
- gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*, integrated 4 Pa measurement for combustion equipment
