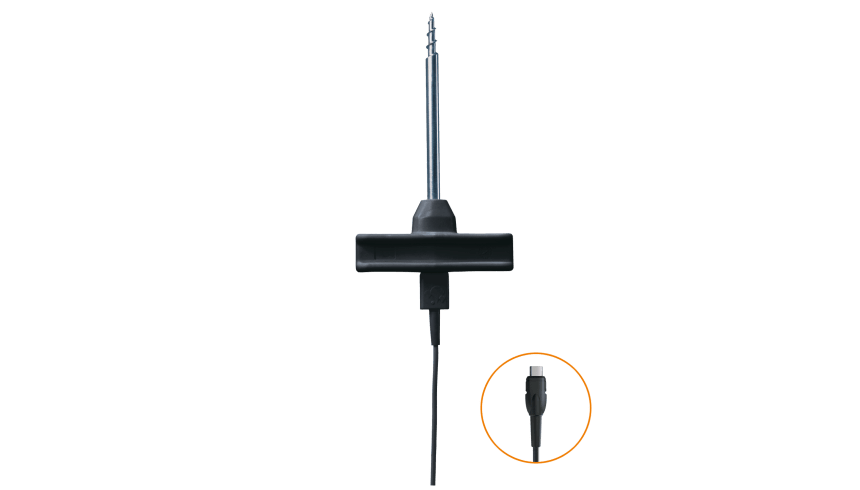

Frozen food probe (NTC) - for screw-in use with TUC connector
0615 3211Frozen food probe (NTC) - for screw-in use with TUC connector
0615 3211NTC temperature sensor
Can be screwed directly into frozen food, no pre-drilling required
Measuring range: -50 to +140 °C
EN 13485 and HACCP-compliant
The frozen food probe (with a corresponding measuring instrument) enables core temperatures to be measured in frozen food.
1 x frozen goods probe (NTC) for screw-in use without pre-drilling, including plug-in cable (cable length 1.5 m) with TUC connector
Temperature - NTC
| Measuring range | -50 to +140 °C ¹⁾ |
|---|---|
| Accuracy | ±0.2 °C (-25 to +75 °C) ±0.5 % of mv (+100 to +140 °C) ±0.4 °C (Remaining Range) |
| Reaction time | 20 s |
| 1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes) | |
General technical data
| Weight | 132 g |
|---|---|
| Dimensions | 1640 mm |
| Cable length | 1.5 m |
| Diameter probe shaft | 8 mm |
| Diameter probe shaft tip | 4 mm |
| Product-/housing material | Stainless steel / GFK |
| Length probe shaft | 110 mm |
| Length probe shaft tip | 30 mm |
| Protection class | IP65 |
| Fixed cable | yes |
| Measuring cable length | 1,500 mm |
| Product colour | Black; silver |
- Frozen food probe 0613 3211 en.de(pdf, 760.49 kB)
