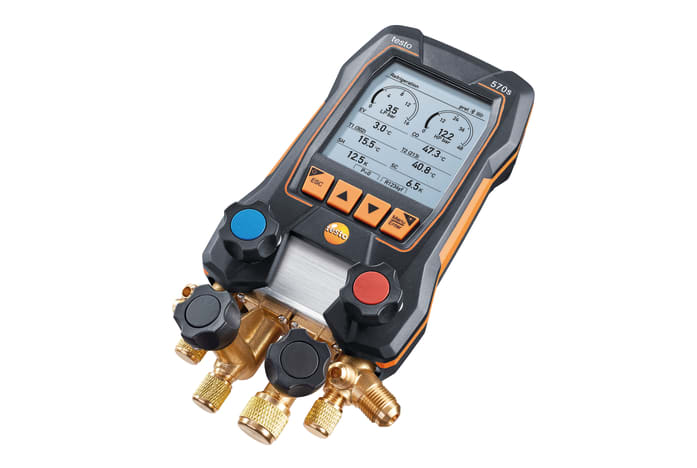

testo 570s - Smart Vacuum Kit with hoses
0564 5703 02testo 570s - Smart Vacuum Kit with hoses
0564 5703 02Digital 4-way manifold with datalogging function
IP54 protection for outdoor use
Immediately ready to go with the kit including two testo 115i wireless clamp temperature probes and testo 552i wireless vacuum probe
4 x hoses supplied, 1.5 m long: 3 x (blue, red, yellow) with 7/16‘‘ UNF (straight and 45° angle), 55/275 bar, 1 x (yellow) with 5/8‘‘ UNF, 40/205 bar (straight and 45° angle)
Long-term measurement with intelligent error detection in the testo Smart App
Long service life of up to 360 hours thanks to rechargeable (USB-C) and non-rechargeable batteries
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes plus 4 x hoses is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.
Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
testo 570s digital 4-way manifold (without sightglass) including Li-ion battery, and calibration protocol, 1 x testo 552i wireless Bluetooth vacuum probe, 2 x testo 115i wireless Bluetooth clamp thermometers, Set of 4 x hoses, Transport case & Instruction manuals
Temperature
| Measuring range | -50 to +150 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Probe connection | 2 x Plug-in (NTC) |
Pressure measurement
| Measuring range | -1 to 60 bar |
|---|---|
| Accuracy | ±0.25 % fs |
| Resolution | 0.01 bar |
| Probe connection | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (low pressure) | 65 bar |
| Overload rel. (high pressure) | 65 bar |
General technical data
| Weight | 1.3 kg |
|---|---|
| Dimensions | 229 x 112.5 x 71 mm |
| Operating temperature | -20 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Auto-off instrument | 10 min |
| Battery life | With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination |
| Battery type | Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA |
| Radio range | 150 m |
| Storage temperature | -20 to +60 °C |
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
Absolute Pressure
| Measuring range | 0 to 26.66 mbar / 0 to 20000 micron |
|---|---|
| Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Resolution | 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / |
| Overload | absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi) |
General technical data
| Weight | 142 g |
|---|---|
| Dimensions | 150 x 32 x 31 mm (LxWxH) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Auto-off | 10 min* |
| Battery type | 3 AAA micro batteries |
| Battery life | 39 h |
| Connection | 7/16“ UNF |
| Interface | Bluetooth® 4.2 |
| Storage temperature | -20 to +50 °C |
| * when not connected via Bluetooth | |
General technical data
| Weight | 1200 g |
|---|---|
| Dimensions | 455 x 320 x 108 mm |
| Product colour | Black |
