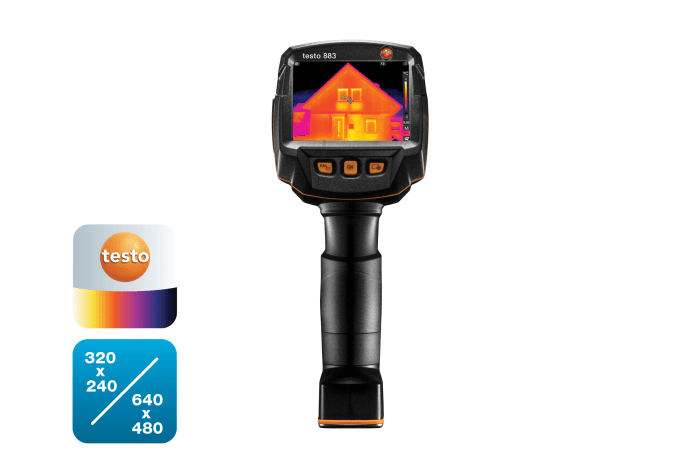

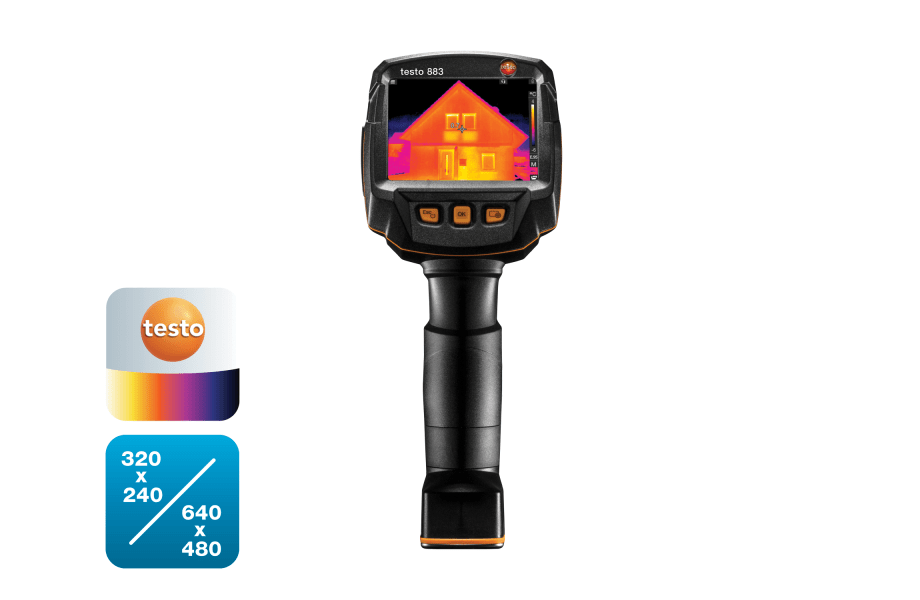

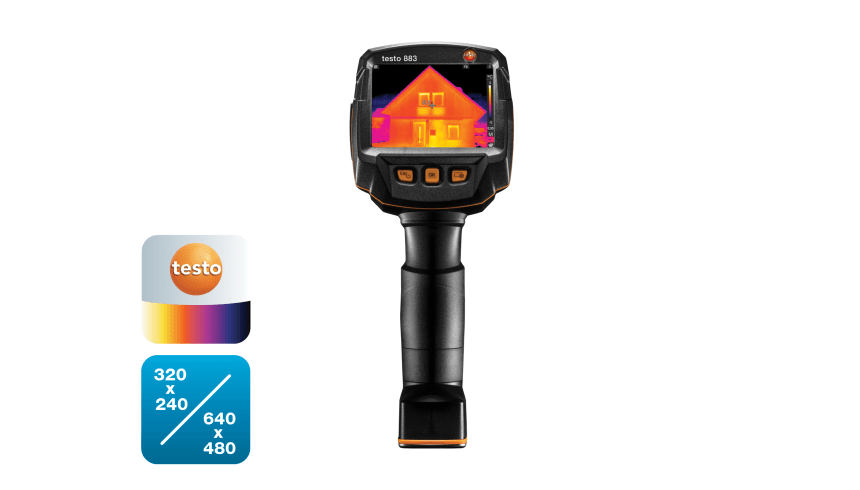

testo 883-2 kit - Thermal imager testo 883-2 with 42° and 12° lenses and accessories
0563 8836testo 883-2 kit - Thermal imager testo 883-2 with 42° and 12° lenses and accessories
0563 8836Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
Thermal sensitivity <0.04 °C
In the kit: Thermal imager testo 883-2 including standard wide-angle lens 42° x 32°, telephoto lens 12° x 9°, spare battery, battery-charging station and case
Free analysis software for creating professional reports
App for analysis and creating on-site measurement reports
Offer valid 01/11/2024 - 31/12/2024 - WEBSHOP EXCLUSIVE OFFER.
Designed for building energy consultants: The thermal imager testo 883-2 is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software as well as wide-angle and telephoto lenses, you can recommend specific optimisation measures and save time in the process. Enjoy the benefits that the kit offers: With to the 12° x 9° telephoto lens, spare battery and battery-charging station, you’ll be ready to start straight away and ideally equipped – even for carrying out measurements at greater distances and for long measuring applications.
Designed for building energy consultants: The thermal imager testo 883-2 is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software as well as wide-angle and telephoto lenses, you can recommend specific optimisation measures and save time in the process. Enjoy the benefits that the kit offers: With to the 12° x 9° telephoto lens, spare battery and battery-charging station, you’ll be ready to start straight away and ideally equipped – even for carrying out measurements at greater distances and for long measuring applications.
Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)
Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
- Thermal imager testo 883-2 with wide-angle lens 42° x 32°
- Telephoto lens 12° x 9°
- Robust case
- Professional software IRSoft (free download)
- USB-C cable
- USB mains unit
- Lithium-ion rechargeable battery
- Auxiliary battery
- Battery charging station with USB cable
- Carrying strap for thermal imager
- Bluetooth® headset (country dependent)
- Short manual
- Calibration protocol
Standards
| EU-/EG-guidelines | RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006 |
|---|---|
General technical data
| Product colour | Black |
|---|---|
| Display ligthing | bright / normal / dark |
| Display type | capacitive touch display |
Infrared image output
| Field of view | 42° x 32° (wideangle lens), 12° x 9° (telephoto lens, optional) |
|---|---|
| Focus | manual |
| Minimum focus distance | 0.1 m (wideangle lens); 0.5 (telephoto lens) |
| Geometric resolution (IFOV) | 2.3 mrad (wideangle lens), 0.7 mrad (telephoto lens) |
| Image refresh rate | 27 Hz |
| Infrared resolution | 320 x 240 pixel |
| SuperResolution (IFOV) | 1.4 mrad (wideangle lens), 0.4 mrad (Telephoto lens) |
| SuperResolution (Pixel) | 640 x 480 pixels |
| Thermal sensitivity | ˂ 40 mK |
| Spectral range | 7.5 to 14 µm |
| * Inside the EU, outside 9 Hz | |
Image output visual
| Minimum focus distance | < 0.4 m |
|---|---|
| Image size | 5 MP |
Image presentation
| Colours | iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette |
|---|---|
| Digital zoom | 2x; 4x |
| Display option | IR image / real image |
| Display type | 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels) |
Measurement
| Accuracy | ±2 °C, ±2 % of m.v.; (greater value applies) |
|---|---|
| Emissivity | 0.01 to 1 |
| Measuring range | -30 to +650°C |
| Reflected temperature | manual |
| testo ε-Assist | Included |
Measuring function
| Analysis function | Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm |
|---|---|
| Solar mode – manual | Input of solar radiation value |
| Electrical mode - manual | Input of current, voltage or power |
| Humidity mode - manual | Included |
| Humidity measurement with humidity measuring instrument | Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately) |
| IFOV warner | Included |
| testo ScaleAssist | Included |
| Electrical measurement with clamp meter | Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately) |
| * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) | |
Imager equipment
| Voice recording | Included |
|---|---|
| Video streaming | via wireless LAN with testo Thermography App; via USB |
| Standard lens | 42° x 32° |
| SiteRecognition | Included |
| Laser | Laser marker |
| JPEG storage | Included |
| Full screen mode | Included |
| Digital camera | Included |
| Interface | USB 2.0; USB-C |
| WLAN Connectivity | Communication with the testo Thermography App/ wireless module BT/WLAN* |
| Bluetooth | Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)** |
| * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)<br />** excepting USA, China <br />Laser: excepting USA, China and Japan <br />Voice recording : An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) | |
Imager storage
| File format image | .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls |
|---|---|
| Storage device | Internal Memory (2.8 GB) |
Power supply
| Battery type | Fast-charging, Li-ion battery can be changed on-site |
|---|---|
| Charging options | In instrument / charger (optional) |
| Mains operation | yes |
| Operating time | ≥ 5 h |
Ambient Condition
| Air humidity | 20 to 80 %RH non-condensing |
|---|---|
| Housing protection class | IP54 |
| Vibration | 2G |
| Storage temperature | -30 to +60 °C |
| Operating temperature | -15 to +50 °C |
Physical specification
| Product-/housing material | PC - ABS |
|---|---|
| Tripod mounting | 1/4" - 20UNC; carrying strap |
| Weight | 824 g |
| Dimensions | 171 x 95 x 236 mm |
PC software
| System requirements | Windows® 11 ; Windows® 10; Windows® 8; Windows® 7 |
|---|---|
General technical data
| Weight | 119 g |
|---|---|
| Dimensions | 20 x 24 x 140 mm (LxWxH) |
| Product colour | Black |
General technical data
| Weight | 385 g |
|---|---|
| Dimensions | 80 x 90 x 75 mm (LxWxH) |
| Cable length | 1 m |
| Product colour | black/orange |
Sets
Accessories
Accessories for measuring instrument
Overview of applications
Preventive maintenance
Detecting structural defects and ensuring construction quality
Professional energy consultation
Preventing mould formation
Easy checking of heating systems and installations
Localize pipe ruptures
Locating leaks in flat roofs
More reliability in quality assurance and production monitoring
Detecting structural defects and ensuring construction quality
Professional energy consultation
Preventing mould formation
Easy checking of heating systems and installations
Localize pipe ruptures
Locating leaks in flat roofs
More reliability in quality assurance and production monitoring
Detecting structural defects and ensuring construction quality
- Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
- Test air-tightness of windows and doors
- Locate insulation errors and cold bridges in a building shell
- Detect and visualize mould-risk areas
Professional energy consultation
- Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
- Easy recording and documentation of energy loss from buildings
- Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
- Localize untight spots in new buildings quickly and easily in combination with Blower Door
Preventing mould formation
- Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode
Easy checking of heating systems and installations
- test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
- Localization of the course of heating loops in underfloor heating systems
- Testo radiators for silting
- Measure flow and return temperatures
Localize pipe ruptures
- Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
- Precise localization of leakages in underfloor heating and other inaccessible pipe systems
Locating leaks in flat roofs
- Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
More reliability in quality assurance and production monitoring
- A Testo thermal imager supports in process control and product quality asurance
- Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
- Fast and easy monitoring of filling level in closed liquid tanks
