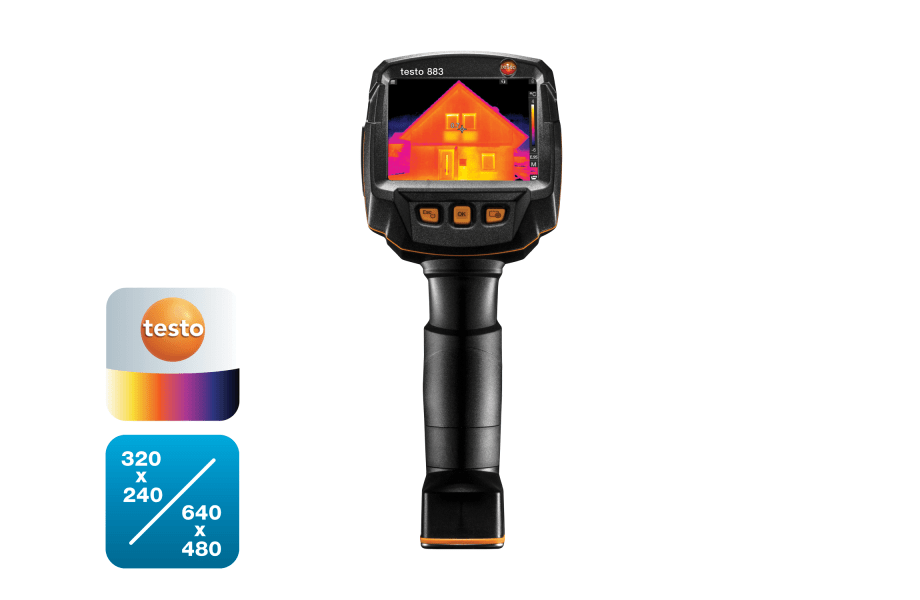

testo 883-2 - Thermal imager (320 x 240 pixels) with 42° lens and accessories

0560 8836
£ 3,380.00 £ 4,056.00
1
  • Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
  • Thermal sensitivity <0.04 °C
  • Full control: Manual focus, wide-angle lens and interchangeable telephoto lens (optional)
  • Free analysis software for creating professional reports
  • App for analysis and creating on-site measurement reports
  • Designed for building energy consultants: The thermal imager testo 883-2 is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software, and wide-angle lens, you can recommend specific optimization measures and save time in the process.
    • Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

    • Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    Best image quality, professional image analysis, easy creation of professional reports and the wide-angle lens make the thermal imager testo 883-2 the perfect partner for building energy consultants.


    All the important information about the thermal imager testo 883-2

    • IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
    • testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
    • testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
    • testo Thermography App: With the App, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
    • Wide-angle lens for wider field of view in confined spaces
    • Interchangeable telephoto lens for far distant objects and outdoor recording
    • Manual focus for sharp thermal images from a distance of 10 cm
    • Can be operated via touchscreen and joystick
    • Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth®

    Further benefits for building energy consultants
    • Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
    • Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
    • Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
    • Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
    • Flexible: Wide-angle, interchangeable telephoto lenses and manual focus for sharper images and more accurate results from different distances

    • Thermal imager testo 883-2 with wide-angle lens 42° x 32°
    • Robust case
    • Professional software IRSoft (free download)
    • USB-C cable
    • USB mains unit
    • Lithium-ion rechargeable battery
    • Carrying strap for the thermal imager
    • Bluetooth® headset (country dependent)
    • Short manual
    • Calibration protocol

    Standards

    EU-/EG-guidelines
    RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006

    General technical data

    Product colour
    Black
    Display ligthing
    bright / normal / dark
    Display type
    capacitive touch display

    Infrared image output

    Field of view
    42° x 32° (wideangle lens), 12° x 9° (telephoto lens, optional)
    Focus
    manual
    Minimum focus distance
    0.1 m (wideangle lens); 0.5 (telephoto lens)
    Geometric resolution (IFOV)
    2.3 mrad (wideangle lens), 0.7 mrad (telephoto lens)
    Image refresh rate
    27 Hz
    Infrared resolution
    320 x 240 pixel
    SuperResolution (IFOV)
    1.4 mrad (wideangle lens), 0.4 mrad (Telephoto lens)
    SuperResolution (Pixel)
    640 x 480 pixels
    Thermal sensitivity
    ˂ 40 mK
    Spectral range
    7.5 to 14 µm
    * Inside the EU, outside 9 Hz

    Accessories

  • Accessories
    Spare rechargeable battery for thermal imager
    Spare rechargeable battery for thermal imager
      :
      0554 8831
      £ 114.00 £ 136.80
      1
    • Accessories
      Battery-charging station
      Battery-charging station, desktop charging station
        :
        0554 8801
        £ 230.00 £ 276.00
        1
      • Accessories
        Special Germanium protective glass
        Special Germanium protective glass for thermal imager
          :
          0554 8805
          £ 334.00 £ 400.80
          1
        • Accessories
          Adhesive tape, e.g. for reflective surfaces
          Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)
            :
            0554 0051
            £ 76.00 £ 91.20
            1
          • Accessories
            testo 605i
            testo 605i - thermohygrometer operated via smartphone
              :
              0560 2605 02
              £ 99.00 £ 118.80
              1
            • Accessories
              PC Software testo IRSoft
              Free download: PC software testo IRSoft
                :
                0501 8809
              • Accessories for measuring instrument

              • Accessories for measuring instrument
                testo 883-1 - Thermal imager (320 x 240 pixels, 30° manual focus, app, laser)
                  :
                  0560 8830
                  £ 3,380.00 £ 4,056.00
                  1

                • Detecting structural defects and ensuring construction quality

                  • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
                  • Test air-tightness of windows and doors
                  • Locate insulation errors and cold bridges in a building shell
                  • Detect and visualize mould-risk areas
                  testo 8xx application

                  Professional energy consultation

                  • Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
                  • Easy recording and documentation of energy loss from buildings
                  • Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
                  • Localize untight spots in new buildings quickly and easily in combination with Blower Door
                  testo 8xx application

                  Preventing mould formation

                  • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode
                  testo 8xx application

                  Easy checking of heating systems and installations

                  • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
                  • Localization of the course of heating loops in underfloor heating systems
                  • Testo radiators for silting
                  • Measure flow and return temperatures
                  testo 8xx application

                  Localize pipe ruptures

                  • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
                  • Precise localization of leakages in underfloor heating and other inaccessible pipe systems
                  testo 8xx application

                  Locating leaks in flat roofs

                  • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
                  testo 8xx application

                  More reliability in quality assurance and production monitoring

                  • A Testo thermal imager supports in process control and product quality asurance
                  • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
                  • Fast and easy monitoring of filling level in closed liquid tanks
                  testo 8xx application
