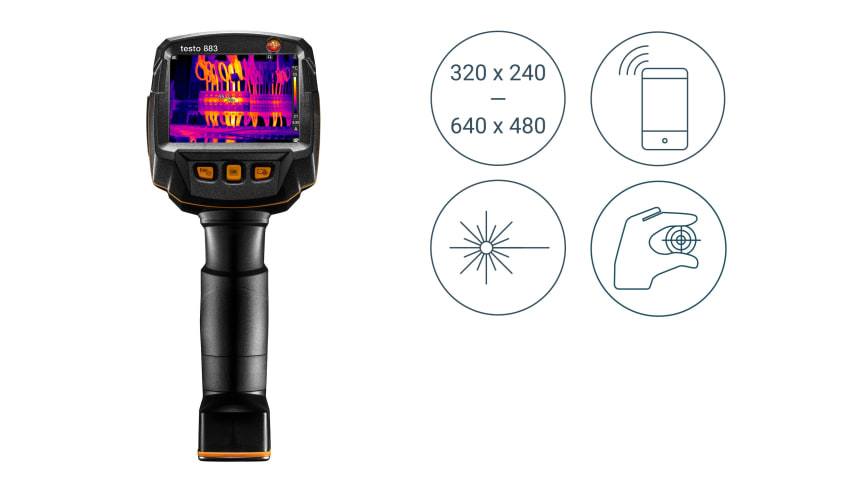

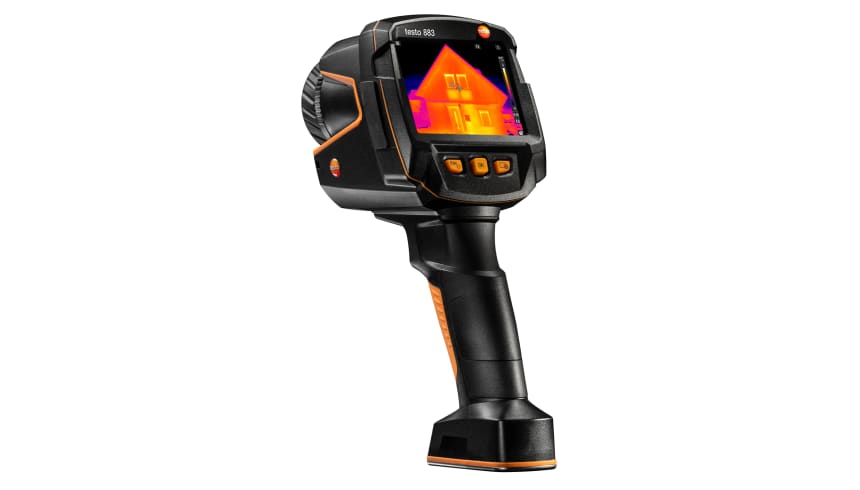

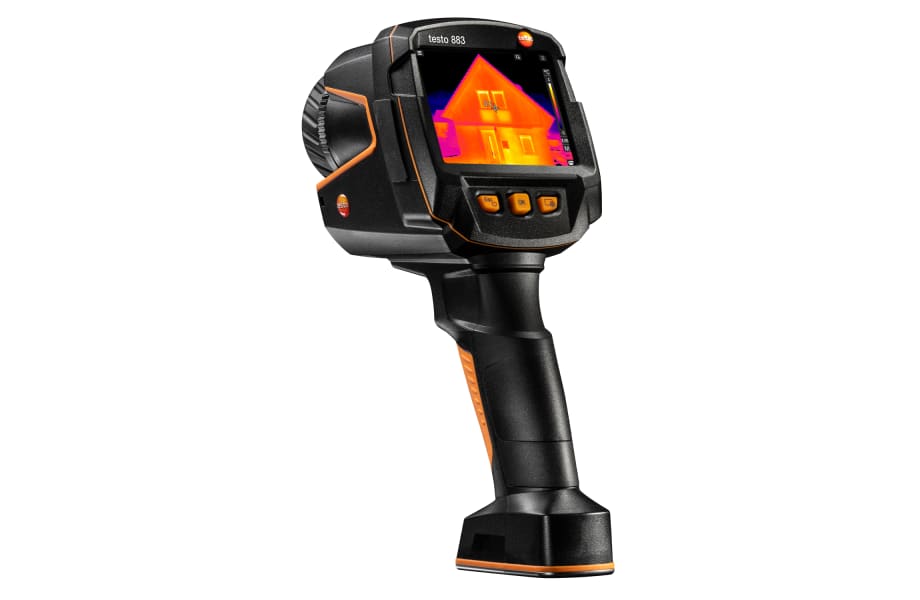

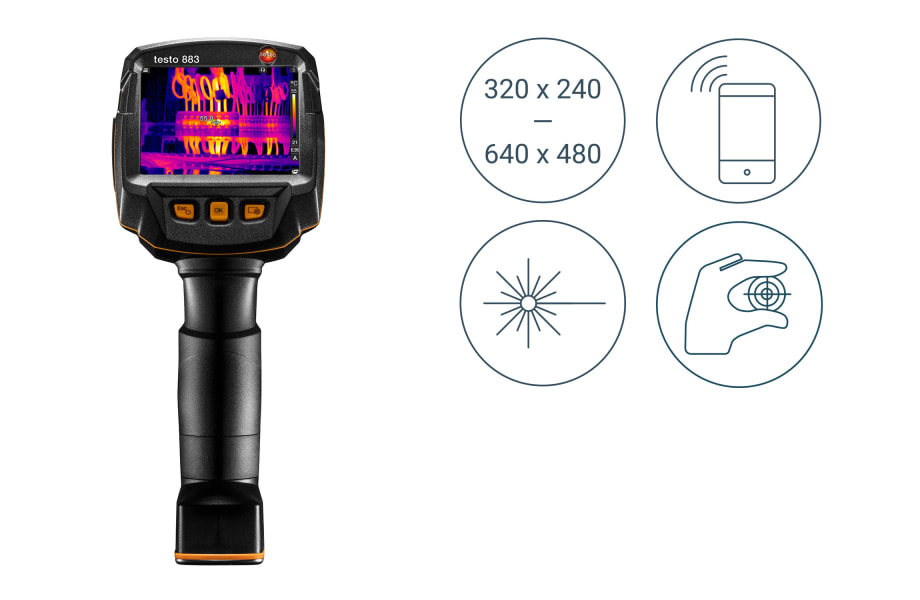

    testo 883-1 - Thermal imager (320 x 240 pixels, 30° manual focus, app, laser)

    0560 8830
  1. Best image quality: IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels); NETD < 40 mk
  2. Useful features: testo SiteRecognition intelligent image management and testo ScaleAssist automatic contrast adjustment
  3. Extensive analysis and documentation: With the intuitive professional software testo IRSoft
  4. Full control: Manual focus and interchangeable lenses
  5. Developed for service engineers, facility managers and building energy consultants: The testo 883-1 thermal imager is a reliable partner when carrying out your thermal measuring tasks. Its outstanding thermal image quality and useful features will enable you to save time and ensure perfect work results.
    • not available

      Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

    Outstanding image quality, automatic allocation/archiving of thermal images to the measurement object and professional image analysis and reporting make the testo 883-1 thermal imager the perfect partner for service engineers, facility managers and building energy consultants.


    All the important information about the testo 883-1 thermal imager

    • IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
    • testo SiteRecognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC

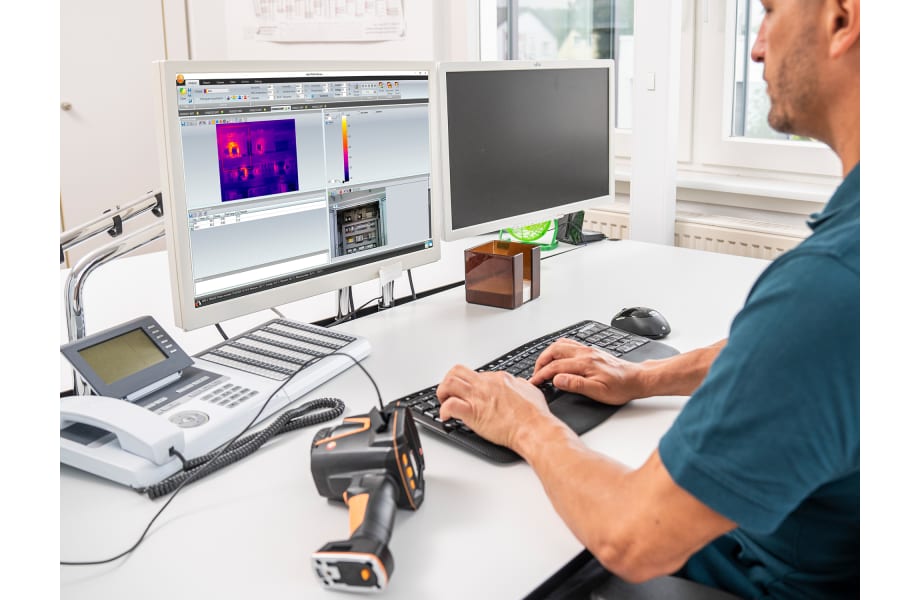

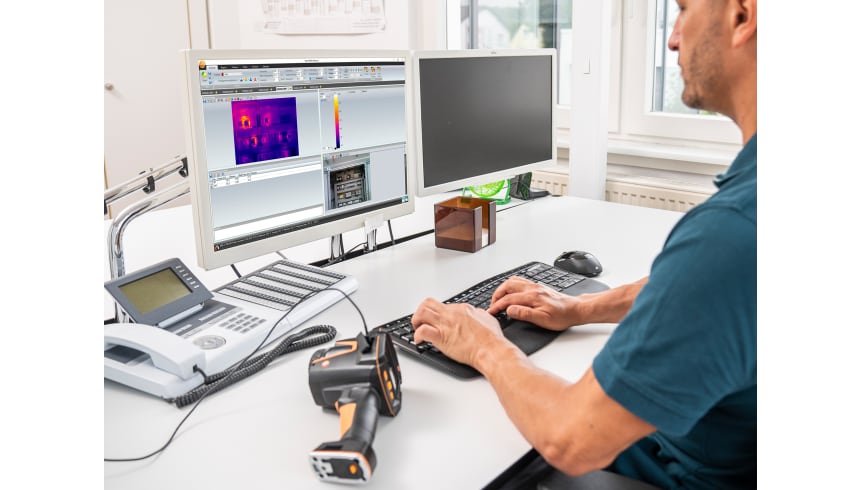

    • testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
    • testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots

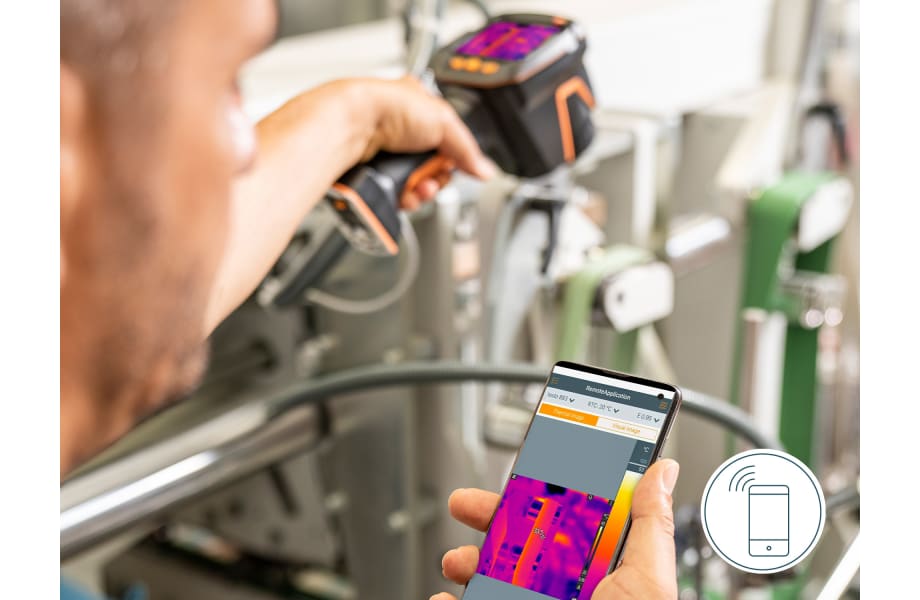

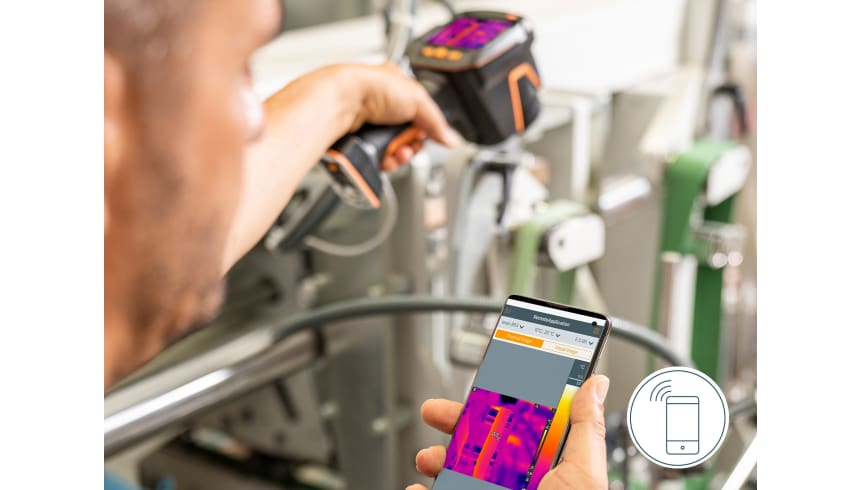

    • testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site

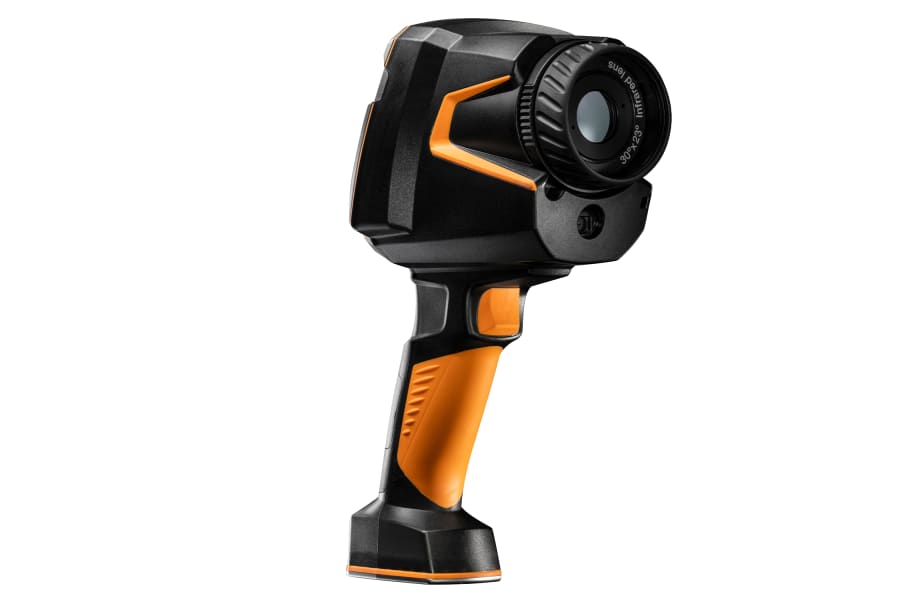

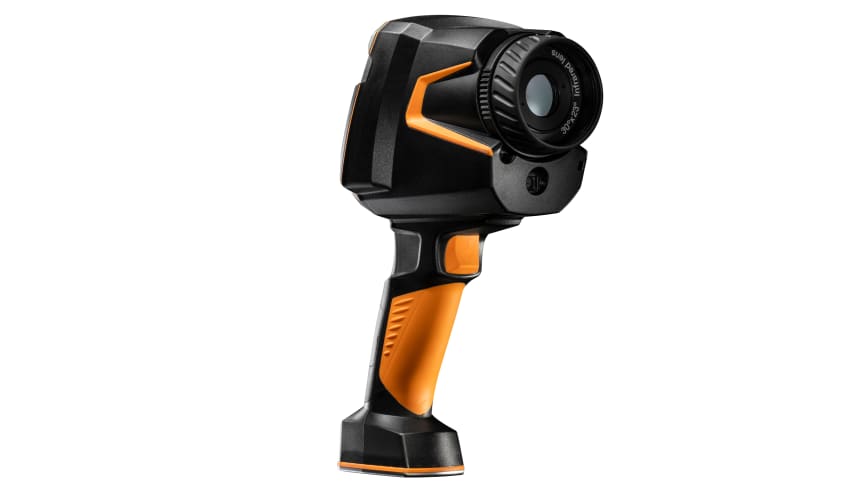

    • Interchangeable telephoto lens for distant objects and outdoor recording

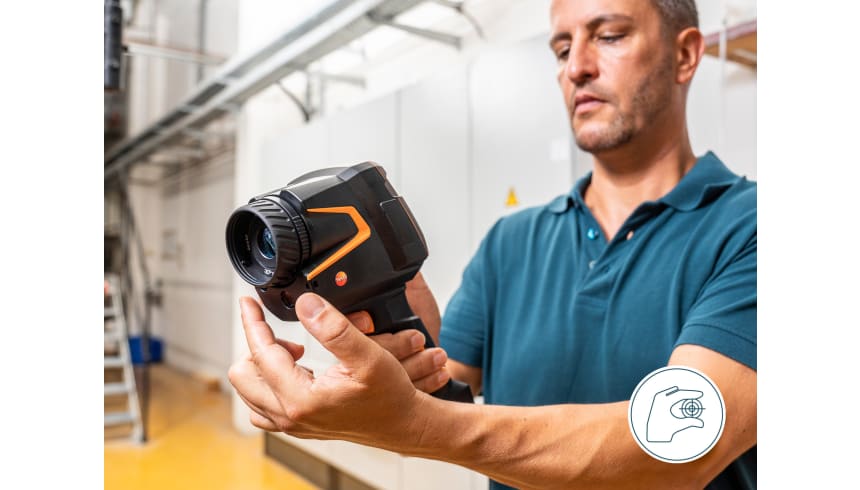

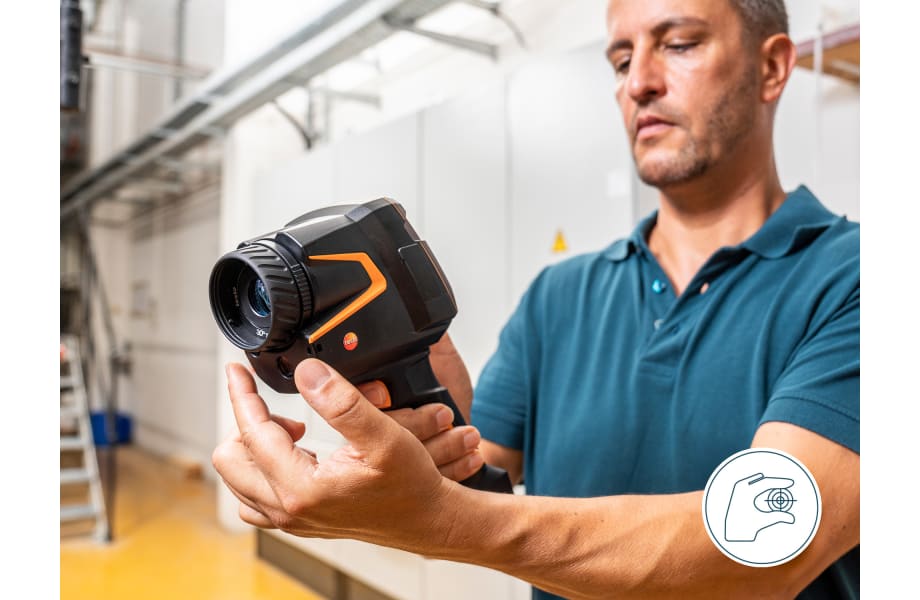

    • Manual focus for sharp thermal images from a distance of 10 cm

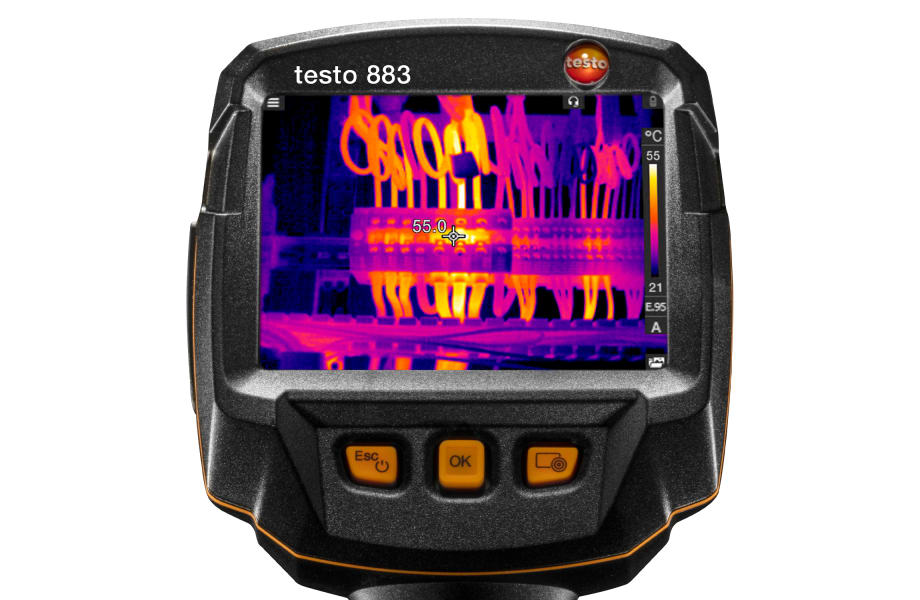

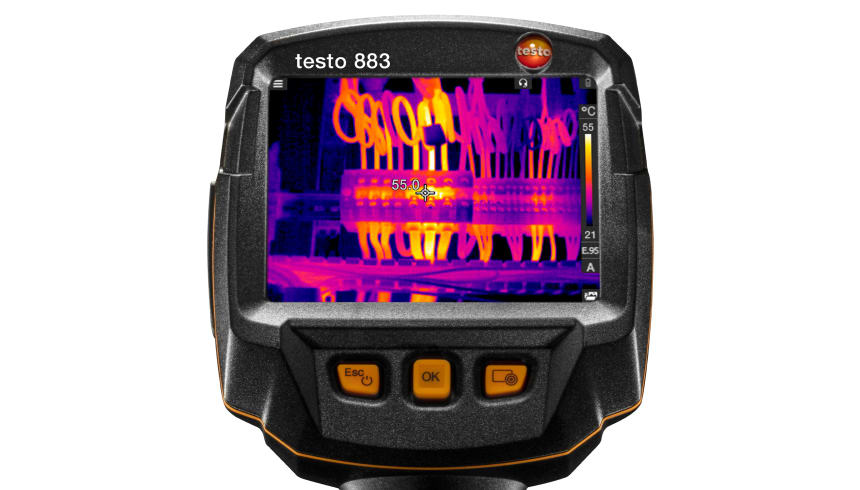

    • Can be operated via touchscreen and joystick

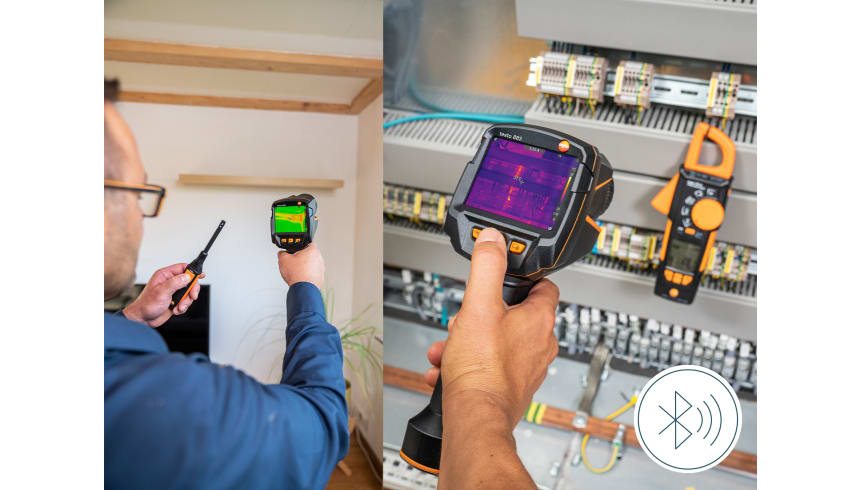

    • Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth®

    Further advantages for service engineers and facility managers

    • Easy to handle – clever management of images and data thanks to testo SiteRecognition: automatic assignment of thermal images to the correct measurement object using QR code, Data Matrix code, barcode or Testo 2D code, transfer of measuring locations from existing inventory lists, export of work results (in .xls format) enables further processing in third-party programs
    • Smart: Carry out quick analyses directly on site with the testo Thermography App and share thermal images with colleagues straight away

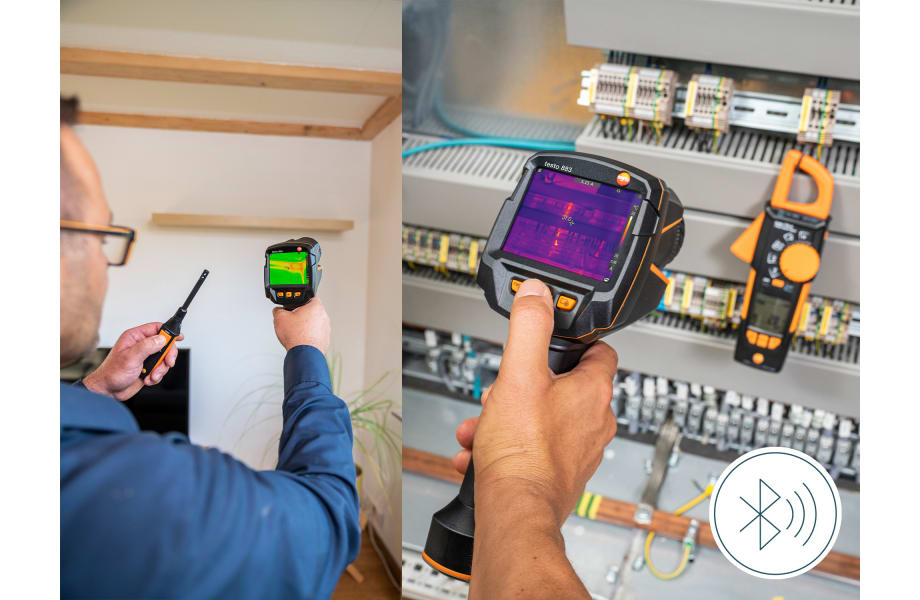

    • Networked: Wireless transmission of readings from the Testo clamp meter directly into the thermal image – this enables you to document the load status directly in the thermal image when checking switching cabinets, for example, and to reliably assess the condition of the system
    • Intuitive operation via touchscreen and joystick

    Further advantages for building energy consultants

    • Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
    • Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
    • Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
    • Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
    • Flexible: Interchangeable lenses and manual focus for sharper images and more accurate results from different distances

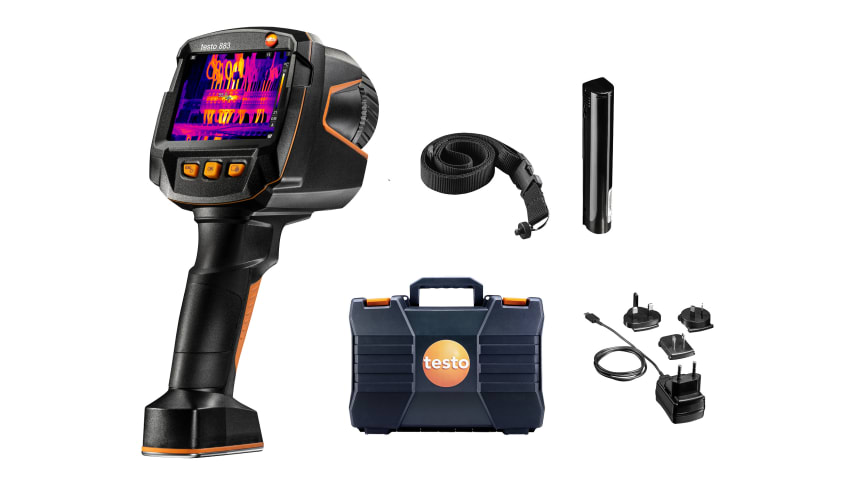

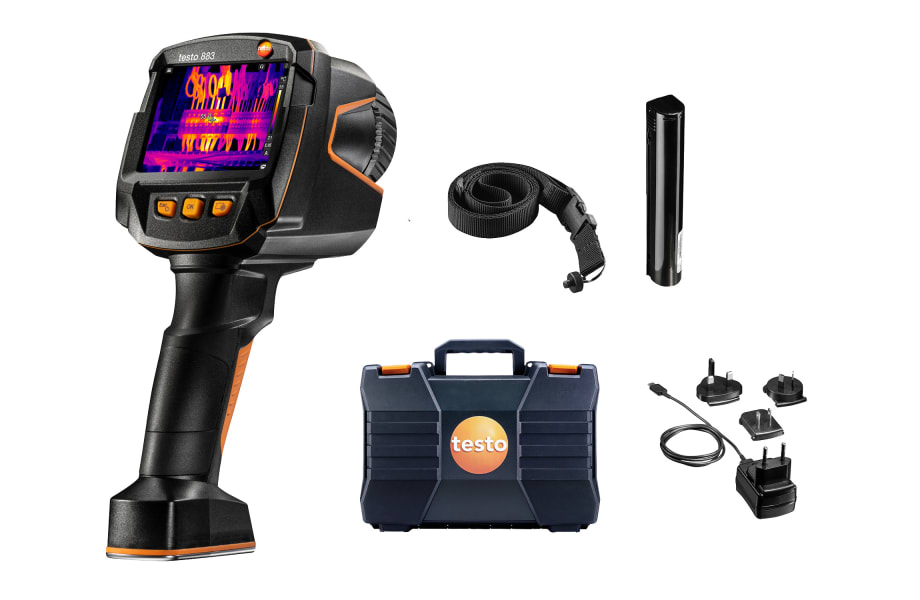

    • testo 883-1 thermal imager with standard lens 30° x 23°
    • Robust case
    • Professional software IRSoft (free download)
    • USB-C cable
    • USB mains unit
    • Li-ion rechargeable battery
    • Carrying strap for the thermal imager
    • Bluetooth® headset (depending on the country)
    • Short instructions
    • Calibration protocol

    Standards

    EU-/EG-guidelines
    RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006

    General technical data

    Product colour
    Black
    Display ligthing
    bright / normal / dark
    Display type
    capacitive touch display

    Infrared image output

    Field of view
    30° x 23° (Standard lens), 12° x 9° (Telephoto lens, optional)
    Focus
    manual
    Minimum focus distance
    < 0.1 m (Standard lens)
    Geometric resolution (IFOV)
    1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
    Image refresh rate
    27 Hz
    Infrared resolution
    320 x 240 pixel
    SuperResolution (IFOV)
    1.1 mrad (Standard lens), 0.4 mrad (Telephoto lens)
    SuperResolution (Pixel)
    640 x 480 pixels
    Thermal sensitivity
    ˂ 40 mK
    Spectral range
    7.5 to 14 µm
    * Inside the EU, outside 9 Hz

    Preventive maintenance

    Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

    • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
    • Avoid expensive damage, downtimes and fire risks on plants and machines
    Electrical maintenance
    • Test switching cabinets, electrical conditions, photovoltaic plants
    • Evaluate heat status in low, medium and high voltage plants
    Mechanical maintenance
    • Identify wear on machines
    • Test motors, bearings, shafts
      testo 8xx application

      Detecting structural defects and ensuring construction quality

      • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
      • Test air-tightness of windows and doors
      • Locate insulation errors and cold bridges in a building shell
      • Detect and visualize mould-risk areas
      testo 8xx application

      Professional energy consultation

      • Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
      • Easy recording and documentation of energy loss from buildings
      • Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
      • Localize untight spots in new buildings quickly and easily in combination with Blower Door
      testo 8xx application

      Preventing mould formation

      • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode
      testo 8xx application

      Easy checking of heating systems and installations

      • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
      • Localization of the course of heating loops in underfloor heating systems
      • Testo radiators for silting
      • Measure flow and return temperatures
      testo 8xx application

      Localize pipe ruptures

      • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
      • Precise localization of leakages in underfloor heating and other inaccessible pipe systems
      testo 8xx application

      Locating leaks in flat roofs

      • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
      testo 8xx application

      More reliability in quality assurance and production monitoring

      • A Testo thermal imager supports in process control and product quality asurance
      • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
      • Fast and easy monitoring of filling level in closed liquid tanks
      testo 8xx application
