    testo 883-2 - Thermal imager (320 x 240 pixels) with 42° lens and accessories

    0560 8836
  1. Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
  2. Thermal sensitivity <0.04 °C
  3. Full control: Manual focus, wide-angle lens and interchangeable telephoto lens (optional)
  4. Free analysis software for creating professional reports
  5. App for analysis and creating on-site measurement reports
  6. Designed for building energy consultants: The thermal imager testo 883-2 is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software, and wide-angle lens, you can recommend specific optimization measures and save time in the process.
    • not available

      Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

    Best image quality, professional image analysis, easy creation of professional reports and the wide-angle lens make the thermal imager testo 883-2 the perfect partner for building energy consultants.

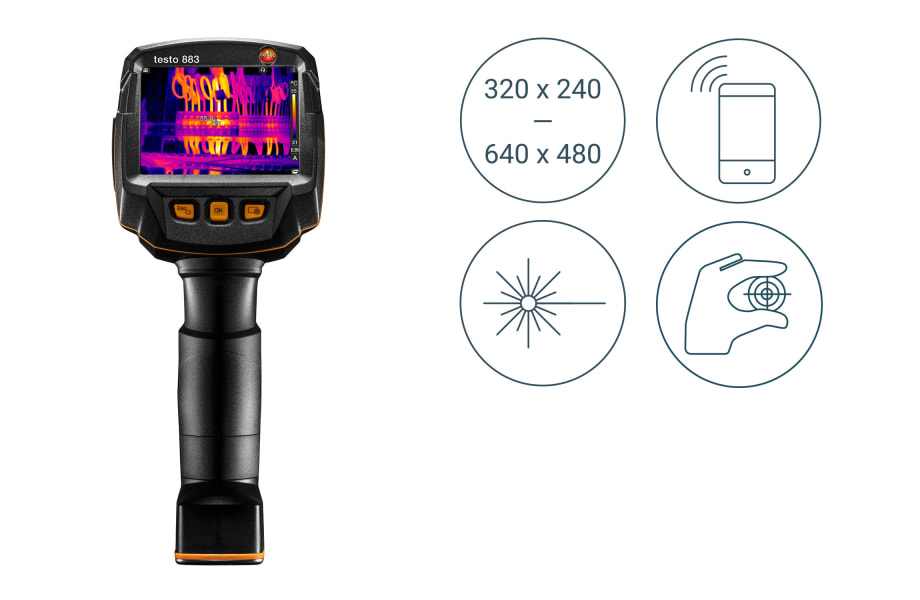

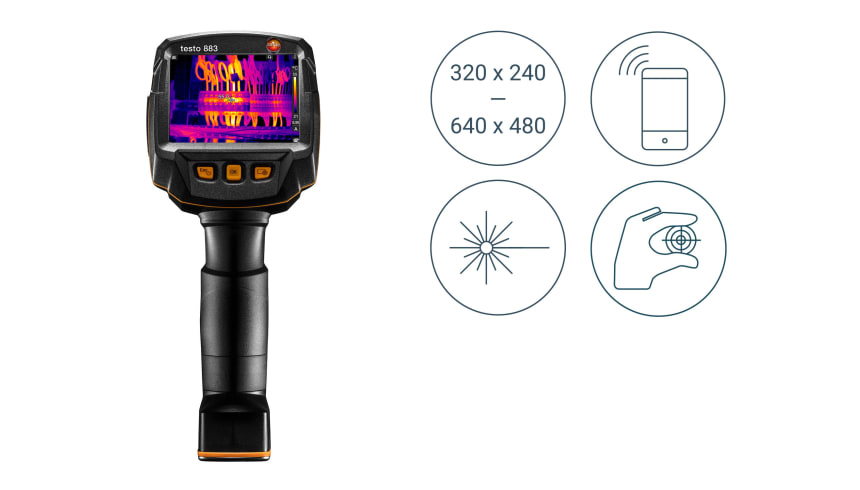

    All the important information about the thermal imager testo 883-2

    • IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
    • testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
    • testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
    • testo Thermography App: With the App, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
    • Wide-angle lens for wider field of view in confined spaces
    • Interchangeable telephoto lens for far distant objects and outdoor recording
    • Manual focus for sharp thermal images from a distance of 10 cm
    • Can be operated via touchscreen and joystick
    • Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth®

    Further benefits for building energy consultants
    • Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
    • Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
    • Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
    • Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
    • Flexible: Wide-angle, interchangeable telephoto lenses and manual focus for sharper images and more accurate results from different distances

    • Thermal imager testo 883-2 with wide-angle lens 42° x 32°
    • Robust case
    • Professional software IRSoft (free download)
    • USB-C cable
    • USB mains unit
    • Lithium-ion rechargeable battery
    • Carrying strap for the thermal imager
    • Bluetooth® headset (country dependent)
    • Short manual
    • Calibration protocol

    Standards

    EU-/EG-guidelines
    RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006

    General technical data

    Product colour
    Black
    Display ligthing
    bright / normal / dark
    Display type
    capacitive touch display

    Infrared image output

    Field of view
    42° x 32° (wideangle lens), 12° x 9° (telephoto lens, optional)
    Focus
    manual
    Minimum focus distance
    0.1 m (wideangle lens); 0.5 (telephoto lens)
    Geometric resolution (IFOV)
    2.3 mrad (wideangle lens), 0.7 mrad (telephoto lens)
    Image refresh rate
    27 Hz
    Infrared resolution
    320 x 240 pixel
    SuperResolution (IFOV)
    1.4 mrad (wideangle lens), 0.4 mrad (Telephoto lens)
    SuperResolution (Pixel)
    640 x 480 pixels
    Thermal sensitivity
    ˂ 40 mK
    Spectral range
    7.5 to 14 µm
    * Inside the EU, outside 9 Hz

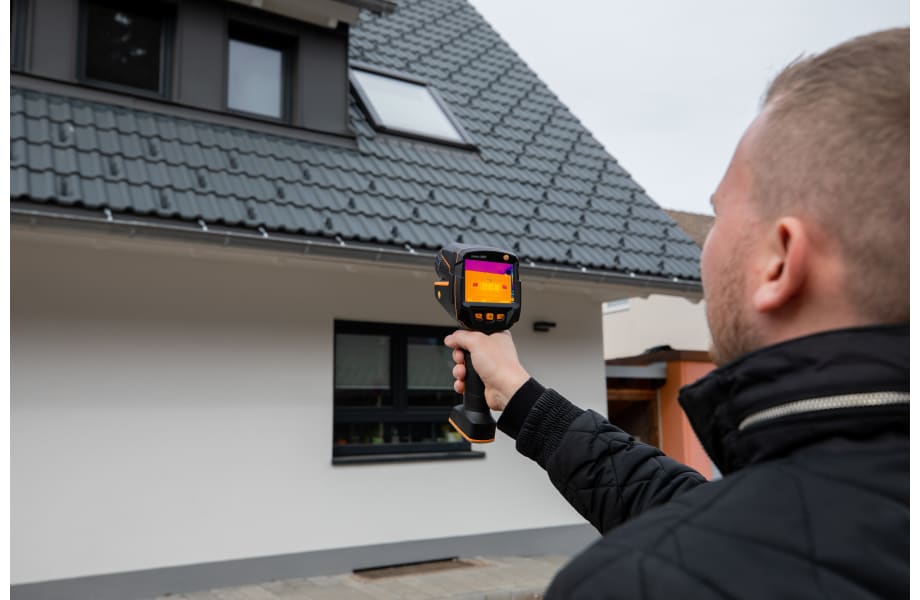

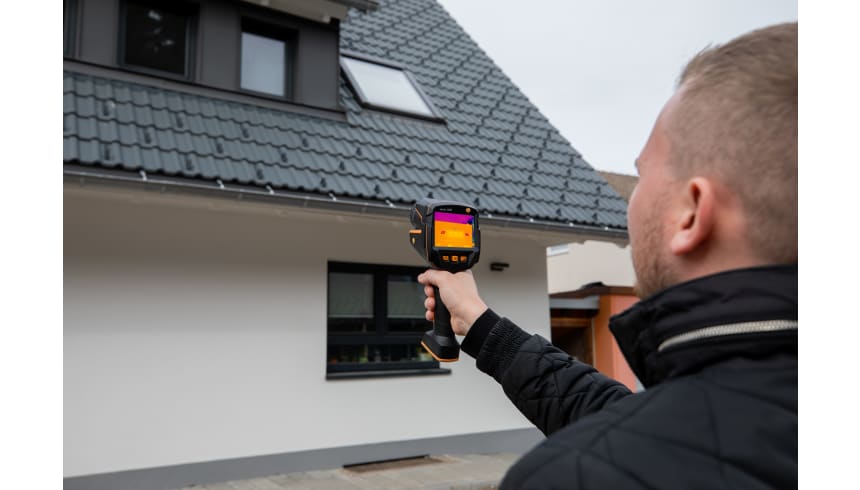

    Detecting structural defects and ensuring construction quality

    • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
    • Test air-tightness of windows and doors
    • Locate insulation errors and cold bridges in a building shell
    • Detect and visualize mould-risk areas
    testo 8xx application

    Professional energy consultation

    • Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
    • Easy recording and documentation of energy loss from buildings
    • Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
    • Localize untight spots in new buildings quickly and easily in combination with Blower Door
    testo 8xx application

    Preventing mould formation

    • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode
    testo 8xx application

    Easy checking of heating systems and installations

    • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
    • Localization of the course of heating loops in underfloor heating systems
    • Testo radiators for silting
    • Measure flow and return temperatures
    testo 8xx application

    Localize pipe ruptures

    • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
    • Precise localization of leakages in underfloor heating and other inaccessible pipe systems
    testo 8xx application

    Locating leaks in flat roofs

    • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
    testo 8xx application

    More reliability in quality assurance and production monitoring

    • A Testo thermal imager supports in process control and product quality asurance
    • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
    • Fast and easy monitoring of filling level in closed liquid tanks
    testo 8xx application
