Komplet testo 570s Smart Vacuum Kit s polnilnimi cevmi

Komplet testo 570s Smart Vacuum Kit s polnilnimi cevmi - Pametni digitalni razdelilnik z brezžičnimi vakuumskimi in temperaturnimi sondami s kleščami ter merilnikom klešč

0564 5704

€ 998,00 € 1.217,56

Komplet testo 570s Smart Vacuum Kit s polnilnimi cevmi - Pametni digitalni razdelilnik z brezžičnimi vakuumskimi in temperaturnimi sondami s kleščami ter merilnikom klešč

0564 5704

Dolgoročno merjenje z inteligentno analizo napak v aplikaciji testo Smart App

Najdaljša življenjska doba baterije na svetu do 360 ur z baterijo za polnjenje (USB-C) in baterijami

Primerno za uporabo s hladilnimi sredstvi A3 in A2L

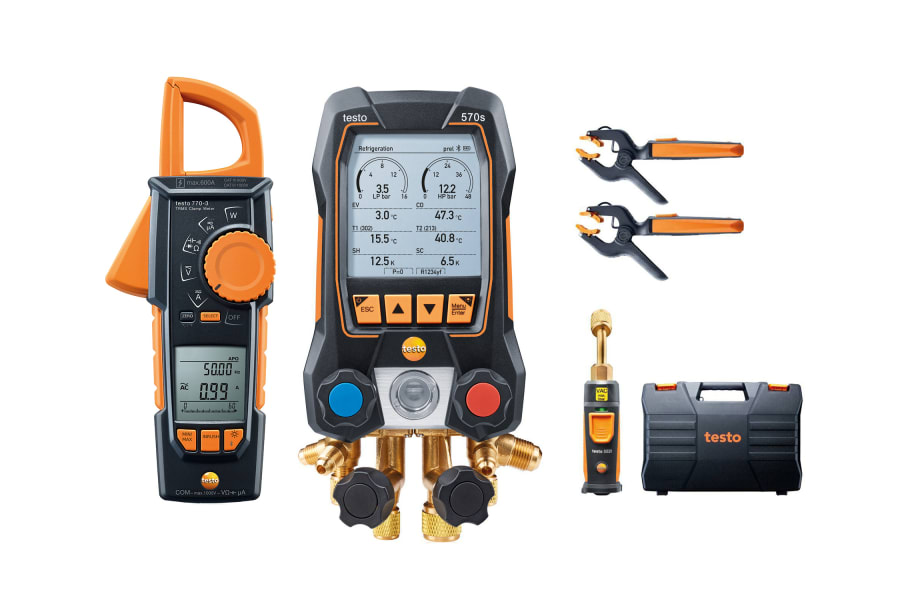

V kompletu: digitalni razdelilnik testo 570s, 2x brezžične temperaturne klešče testo 115i, 1x brezžična vakuumska sonda testo 552i, 1x merilec klešč testo 770-3 TRMS in kovček

Takoj začnite s merjenjem na hladilnih in klimatskih sistemih ter toplotnih črpalkah. Praktični komplet, ki vsebuje digitalni razdelilnik testo 570s z Bluetooth in 4-smernim ventilskim blokom, skupaj z brezžičnimi temperaturnimi in vakuumskimi sondami ter polnilnimi cevmi, je idealen za dolgoročne in standardne meritve. Inteligentna analiza napak v aplikaciji testo Smart App zagotavlja zanesljivo diagnostiko po dolgotrajni meritvi, kar odpravlja potrebo po dolgotrajnem iskanju. Z najdaljšo življenjsko dobo baterije na svetu, 360 ur, je testo 570s idealen za dolgoročne meritve, pa tudi za vse vrste kratkoročnih aplikacij tekom delovnega tedna. Poleg tega razdelilniki z merilno natančnostjo 0,25 % fs ponujajo največjo natančnost tudi pri nizkih vrednostih tlaka.

digitalni 4-potni razdelilnik testo 570s z litij-ionsko polnilno baterijo
2x brezžična termometra s kleščami testo 115i
1x brezžična vakuumska sonda testo 552i
1x merilne klešče testo 770-3 TRMS
Transportni kovček
aplikacija testo Smart App (brezplačen prenos)
Navodila za uporabo

testo 570s- Digitalni razdelilnik s 4-potnim blokom ventilov, Bluetooth in inteligentno analizo napak

: 0564 5701

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

testo 552i - Brezžična vakuumska sonda, ki jo upravljate preko aplikacije

: 0564 2552

testo 770-3 - clamp meter with Bluetooth

: 0590 7703 02

Transport case

: 0516 0012

testo 570s- Digitalni razdelilnik s 4-potnim blokom ventilov, Bluetooth in inteligentno analizo napak

0564 5701

Temperature

Measuring range	−50 to +150 °C
Accuracy	±0,5 °C
Resolution	0,1 °C
Probe connection	2 x Plug-in (NTC)

Pressure measurement

Measuring range	−1 to 60 bar
Accuracy	±0,25 % fs
Resolution	0,01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (low pressure)	65 bar
Overload rel. (high pressure)	65 bar

General technical data

Weight	1,3 kg
Dimensions	229 x 112,5 x 71 mm
Operating temperature	−20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument	10 min
Battery life	With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type	Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range	150 m
Storage temperature	−20 to +60 °C

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	−40 to +150 °C
Accuracy	±1,3 °C (−20 to +85 °C)
Resolution	0,1 °C

General technical data

Weight	127,4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	−20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	−20 to +60 °C

testo 552i - Brezžična vakuumska sonda, ki jo upravljate preko aplikacije

0564 2552

Absolute Pressure

Measuring range	0 to 26,66 mbar / 0 to 20000 micron
Accuracy	±(1 ±10 micron + 10 % of mv (100 to 1000 micron)
Resolution	100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) /
Overload	absolute: 6,0 bar / 87 psi (relative: 5,0 bar / 72 psi)

General technical data

Weight	142 g
Dimensions	150 x 32 x 31 mm (LxWxH)
Operating temperature	−10 to +50 °C
Protection class	IP54
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Auto-off	10 min*
Battery type	3 AAA micro batteries
Battery life	39 h
Connection	7/16“ UNF
Interface	Bluetooth® 4.2
Storage temperature	−20 to +50 °C
* when not connected via Bluetooth

testo 770-3 - clamp meter with Bluetooth

0590 7703 02

Temperature - TC Type K (NiCr-Ni)

Measuring range	−20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0,2 °C

DC voltage

Measuring range	1,0 to 1000,0 V
Resolution	max. 1 mV
Accuracy	± (0,8 % of mv + 3 Digit)

AC voltage

Measuring range	1,0 mV to 1000,0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

DC current

Measuring range	0,1 to 600,0 μA (measuring cables) 0,01 to 600,0 A (clamp)
Resolution	0,1 (clamp) 0,1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

AC current

Measuring range	0,1 to 600,0 μA (measuring cables) 0,01 to 600,0 A (clamp)
Resolution	0,01 A (clamp) 0,1 μA (measuring cables)
Accuracy	± (1,5 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

Resistance

Resolution	max. 0,01 Ohm
Measuring range	0,10 to 60,0 MOhm
Accuracy	± (1,5 % of mv + 3 Digit)

Capacitance

Resolution	max. 0,01 nF
Measuring range	0,001 μF to 60000,00 μF
Accuracy	± (1,5 % of mv + 5 Digit)

Frequency

Resolution	max. 0,1 Hz
Measuring range	0,00 Hz to −10 kHz
Accuracy	± (1 % of mv + 1 Digit)

Active Power

Measuring range	0,1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0,1 W

Reactive Power

Measuring range	0,1 to 600,0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0,1 var

Apparent Power

Measuring range	0,1 VA to 600,0 kVA
Accuracy	± 1 Digit
Resolution	0,1 VA

Direct current DC Voltage

Measuring range	0,1 W to 600,0 kW
Accuracy	± 1 Digit
Resolution	max. 0,1 W

Power Factor

Measuring range	−1,00 to +1,00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0,01

General technical data

Operating humidity	0 to 80,0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	−10 to +50 °C
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Product colour	Black
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 AAA micro batteries
Display size	2 lines
Display type	LCD (Liquid Crystal Display)
Interface	2 measuring jacks
Storage temperature	−15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6.000
Autom. measurement parameter detection	yes
μA current measuring range	yes
