    Robust high-temperature/humidity probe (up to +180 °C)

    0628 0021
  1. Probe for temperature and relative humidity – suitable for high temperatures
  2. Probe shaft diameter of 12 mm with the option of using a PTFE or stainless steel sintered cap
  3. Temperature measuring range: -20 to +180 °C
    4. The robust high-temperature/humidity probe (with a corresponding measuring instrument) is suitable for reliably determining the temperature and relative humidity even at high temperatures (up to +180 °C).
    Use the robust high-temperature and humidity probe for reliable measurement of temperature and relative humidity. As the probe can be used at temperatures up to +180 °C, it also enables measurements to be taken in industrial exhaust air or in air-conditioning cabinets.

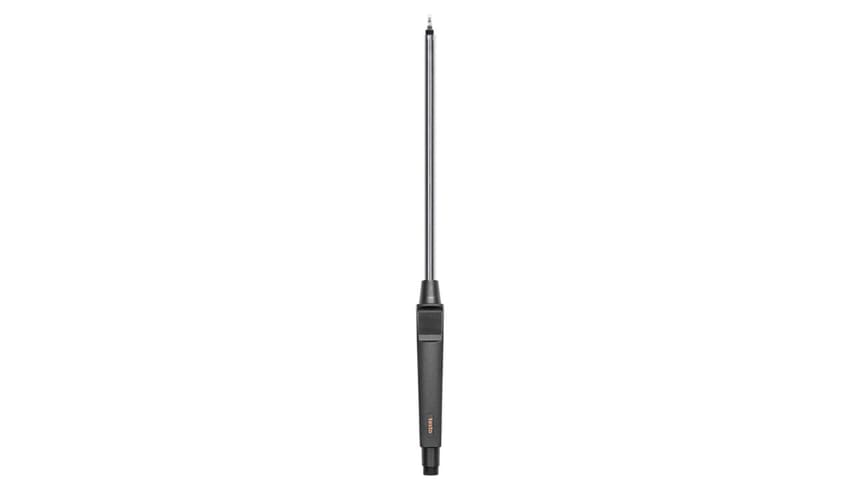

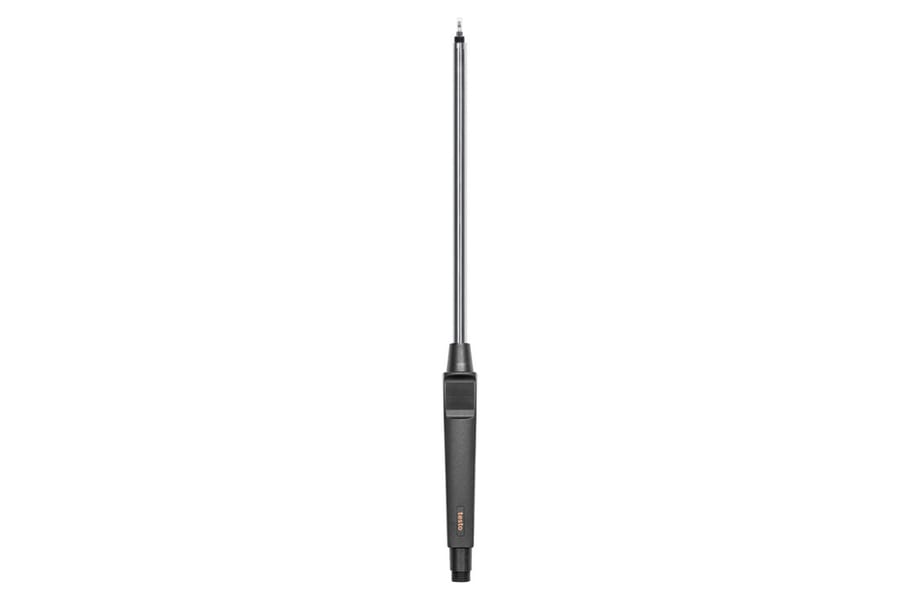

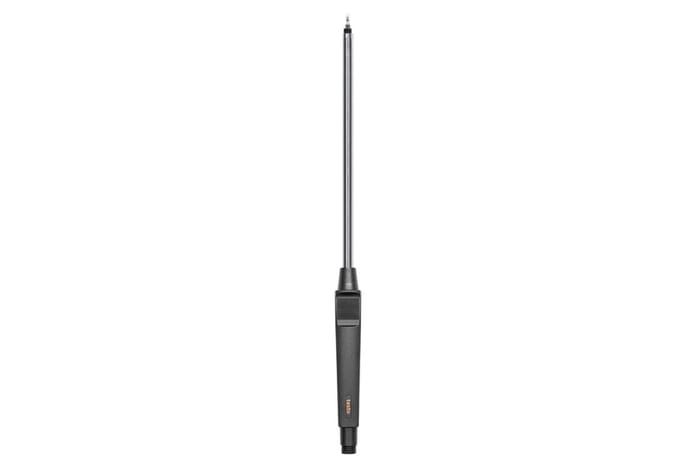

    Robust high-temperature/humidity probe (Ø 12 mm).
    Note: you need a plug-in head cable (0430 0143) for this probe.

    Temperature - NTC

    Measuring range
    −20 to +180 °C
    Accuracy
    ±0,4 °C (0,1 to +50 °C)
    ±0,5 °C (Remaining Range)
    Reaction time
    30 s

    Humidity - Capacitive

    Measuring range
    0 to +100 %RH
    Accuracy
    ±2 %RH (Remaining Range)
    long-term stability: ±1 %RH / year
    *The sensor accuracy corresponds to the system accuracy.
    ±1,0 %RH (10 to 90 %RH at +15 ... +30 °C)
    ±0,03 %RH/K (k=1)

    General technical data

    Diameter probe shaft
    12 mm
    Length probe shaft
    300 mm
