- testo 300 Longlife kit 4 with printer
testo 300 Longlife kit 4 with printer - flue gas analyzer (O2, CO up to 15,000 ppm, NO - can be retrofitted)
Izdelek št. 0564 3004 81
testo 300 Longlife kit 4 with printer - flue gas analyzer (O2, CO up to 15,000 ppm, NO - can be retrofitted)
Izdelek št. 0564 3004 81Vaše prednosti
Intuitiven, pameten, učinkovit: intuitivni merilni meniji, hiter odziv pametnega zaslona, občutljivega na dotik, dokumentacija na licu mesta, pošiljanje poročil po e-pošti
Vključno z O2, CO do 15,000 delčkov v minuti, (NO senzor - možna vnovična nastavitev)
Visokokakovostna tehnologija senzorja z delovno dobo do 6 let
V kompletu: testo 300 dolgotrajna naprava za analizo dimnih plinov, vključno z O2 in CO senzorjem, ki prepozna do 15.000 delčkov v minuti, napajalna enota, osnovna sonda za dimne pline, rezervni filtri proti umazaniji, testo Bluetooth®
Carry out installation and maintenance work on heating systems several times a day using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 Longlife flue gas analyzer is supplied with O2 and CO sensor up to 15,000 ppm (NO - can be retrofitted), basic flue gas probe, testo Bluetooth® printer, testo Bluetooth® Connector, case and practical accessories.
Registracija izdelka
Z registracijo svojega izdelka vam podaljšamo običajno garancijo proizvajalca za leto dni.
Opis

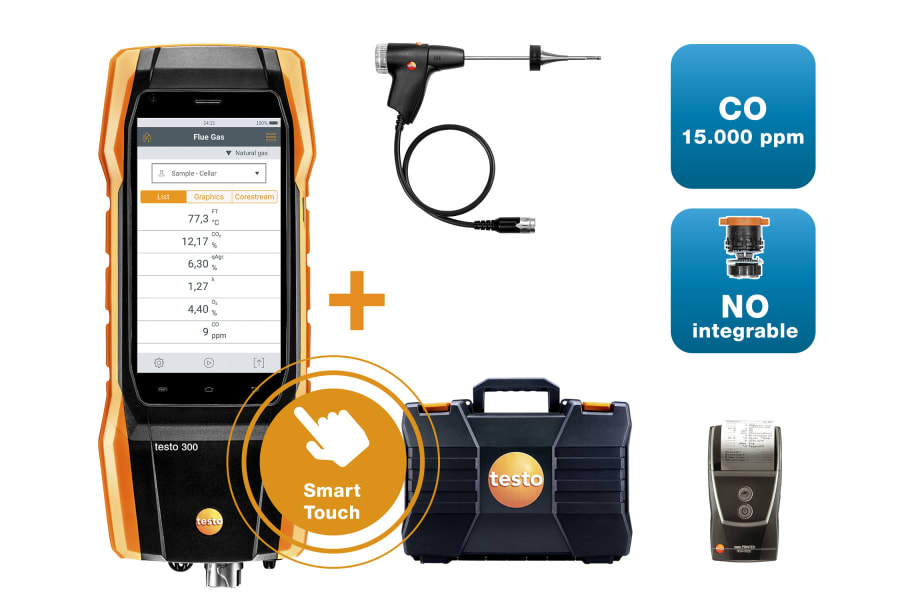

Obseg dobave
- testo 300 flue gas analyzer with O2 and CO sensor up to 15,000 ppm (0633 3004 82)
- USB mains unit, including cable (0554 1106)
- Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
- Spare dirt filters, compact probe; 10 off (0554 0040)
- testo Bluetooth® Connector (0554 3004)
- BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
- Spare thermal paper for printer, indelible ink (0554 0568)
- Free download EasyHeat PC software (0554 3332)
- Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)
Podrobnosti o sestavnih delih kompleta
Podrobnosti o sestavnih delih kompleta
Številka izdelka: 0633 3004 82
Podrobnosti o sestavnih delih kompleta
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
Številka izdelka: 0600 9740
Podrobnosti o sestavnih delih kompleta
Spare particle filter, compact probe; 10 off
Številka izdelka: 0554 0040
Tehnični podatki
Temperature - TC Type K (NiCr-Ni)
| Measuring range | −40 to +1200 °C |
|---|---|
| Accuracy | ±0,5 % of mv (Remaining Range) ±0,5 °C (0,0 to +100,0 °C) |
| Resolution | 0,1 °C (−40 to +999,9 °C) 1 °C (Remaining Range) |
Differential Pressure - Piezoresistive
| Measuring range | −100 to +200 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (+100,1 to +200 hPa) ±0,5 hPa (0 to +50,0 hPa) ±1 % of mv (+50,1 to +100,0 hPa) |
| Resolution | 0,01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Flue gas COlow (with H₂-compensation)
| Measuring range | 0 to 500 ppm |
|---|---|
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0,1 ppm |
CO determination (without H₂-compensation), automatic dilution
| Measuring range | 0 to 15000 ppm |
|---|---|
| Accuracy | ±200 ppm or ±20 % of mv |
| Resolution | 1 ppm |
Flue gas NO
| Measuring range | 0 to 3000 ppm |
|---|---|
| Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
| Resolution | 1 ppm |
Flue gas Nolow
| Measuring range | 0 to 300 ppm |
|---|---|
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39,9 ppm) |
| Resolution | 0,1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | −9,99 to +40 hPa |
|---|---|
| Accuracy | ±0,02 hPa (0,1 to +3,00 hPa) ±0,005 hPa (0 to 0,1 hPa) ±1,5 % of mv (+3,01 to +40 hPa) |
| Resolution | 0,001 hPa (0 to 0,1 hPa) 0,01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0,1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99,9 % |
|---|---|
| Resolution | 0,1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring range | −50 to +50 Pa |
|---|---|
| Accuracy | ±3 % of mv (Remaining Range) ±0,3 Pa (< 10 Pa) |
| Resolution | 0,1 Pa |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | −5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
| Memory | 1.000.000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | −20 to +50 °C |
| Charging temperature | 0 to +45 °C |
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1,5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| Storage temperature | −20 to +50 °C Rechargeable battery storage temperature: ±0 to +35 °C |
|---|---|
| Weight | approximately 400 g (including rechargeable battery pack, paper roll, mains unit) |
| Dimensions | 150 x 80 x 41 mm (LxWxH) |
| Operating temperature | 0 to +50 °C |
| EU-/EG-guidelines | RED: 2014/53/EU |
| Alarm function | via LED |
| Battery type | Lithium-Ion rechargeable battery pack, 3500 mAh, 3.7 V |
| Warranty conditions | https://www.testo.com/guarantee |
| Interface | USB; NFC |
| Battery charging time | 6 - 8,5 h |
| Battery life | > 6 h (20 °C / 68 °F) |
| Interface printer | Bluetooth® / IRDA |
| Print speed | 30 mm/s |
General technical data
| Dimensions | 120 x 75 x 60 mm |
|---|---|
| Product-/housing material | paper |
| Product colour | white |
| Weight | 50 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 3880 g |
|---|---|
| Dimensions | 520 x 400 x 130 mm (LxWxH) |
| Product-/housing material | Plastic |
| Product colour | Black |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
