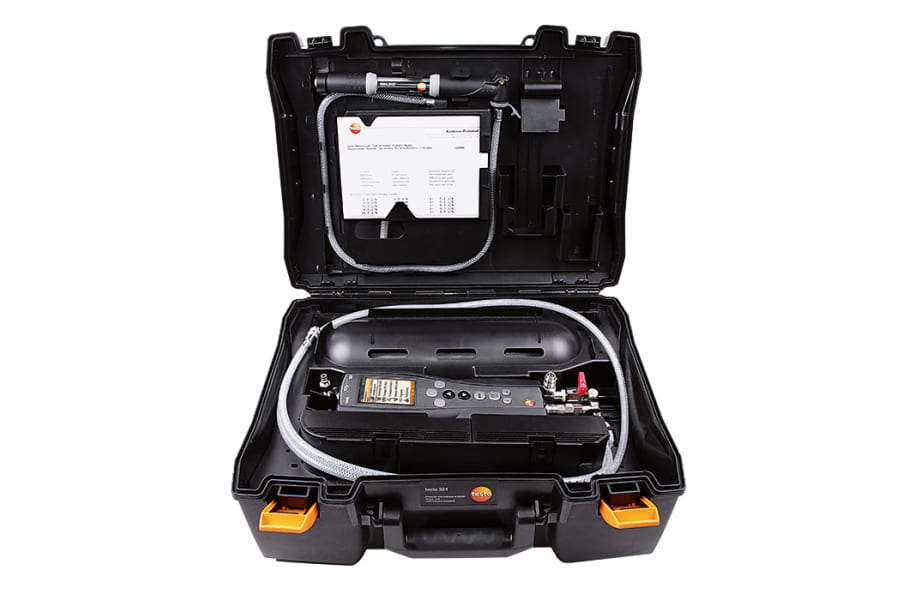

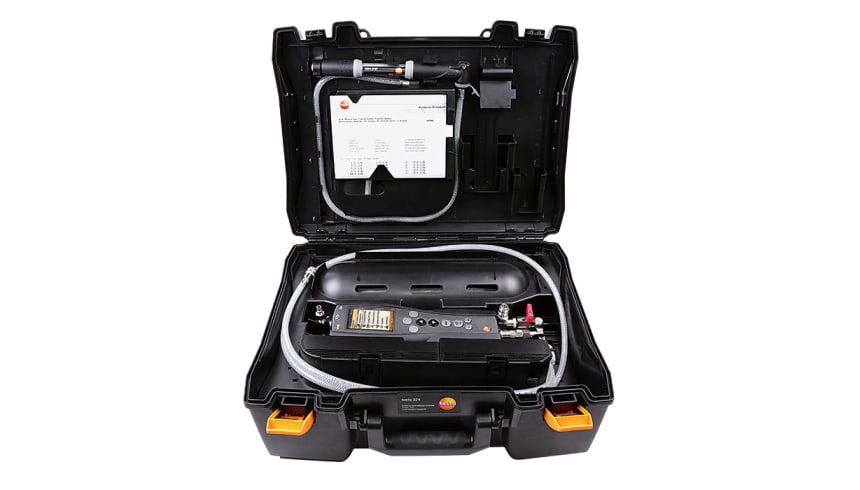

    testo 324 gas and water set - Pressure and leakage measuring instrument

    0563 3240 77
  1. All the important measurements in one instrument: tightness test, load test and serviceability test
  2. DVGW-tested pressure and leakage measuring instrument
  3. Automatic determination of pipe volume in gas pipes
  4. Step-by-step guide through regulatory-compliant measurement menus: check water and gas pipes really easily
    5. The complete package for testing water and gas pipes in compliance with directives: in addition to the testo 324 pressure and leakage measuring instrument with Bluetooth® interface, including system case with feeding unit, the set also contains a high-pressure probe, a high-pressure connection, a Y-distributor and other important accessories.
    • not available

      Registracija izdelka

      Z registracijo svojega izdelka vam podaljšamo običajno garancijo proizvajalca za leto dni.

      Registrirajte izdelek zdaj

    Water and gas pipes can develop leaks over the years or after building alterations. The pipes have to be tested regularly and competently in order to prevent expensive water damage or dangerous gas accidents. The testo 324 gas and water set has everything you need to get started and allows you to carry out all the important tests prescribed by law with just one instrument.

    Checking water and gas pipes - the applications

    • Load testing and tightness testing on gas pipes according to TRGI 2008
    • Establishing the serviceability of gas pipes according to TRGI 2008
    • Load testing and tightness testing on drinking water pipes according to ZVSHK EN 806-4
    • Strength (pressure test), tightness and recurring tests on liquid gas pipes according to TRF 2021
    • Pressure testing on waste water pipes according to DIN EN 1610
    • Differential pressure measurement


    testo 324 gas and water set – the advantages

    • Practical: Carry out tests on water and gas pipes really easily: the measurement menu takes you through the measurement step by step, so that you save time
    • Simple: The single-hose connection makes it extremely easy to operate, while the high-resolution colour graphic display also makes it convenient to work with
    • Efficient: Measuring location and customer management: the measurement data can be stored and documented quickly and easily in previously created customer folders, along with assignment to the measuring location (memory for up to 500,000 readings)
    • Precise: Maximum precision is offered by the built-in sensors – a flow sensor, an absolute pressure sensor and two differential pressure sensors are all integrated into the testo 324 leakage measuring instrument. Optionally, up to two temperature probes or high-pressure probes of up to 25 bar can be connected to the measuring instrument
    • Efficient: The pressure pump integrated into the leakage measuring instrument enables pressure build-up up to 300 mbar and filling of the feeding unit. You also have the option of generating higher pressures with the manual test pump
    • Safe: Automatic serviceability test: the system case with feeding unit feeds in the gas using the gas bladder. Since the gas bladder is filled with the system's own gas, there is no possibility of a hazardous gas-air mixture developing during the serviceability test
    • Intelligent: Integrated instrument diagnosis: error diagnosis, instrument information, tightness self-test
    • Economic: Energy management: automatic instrument shut-down (Auto-Off) and switch-off of the display illumination can be set in battery operation
    • Durable: 2-year warranty
    • Free flue gas app for operating the measuring instrument and documenting the readings for Android devices is available to download


    Advantages of the set and other accessories

    In addition to the testo 324 leakage measuring instrument, you also get practical accessories in the gas and water set, such as the Y-distributor for parallel measurement of two pipe sections, high-pressure probe, test stops, high-pressure stage stops, etc.

    Would you like to be able to document your measurement data on site? The testo fast printer or the testo BLUETOOTH®/IRDA printer with its Bluetooth® radio transmission option are also available to order and means this will not be a problem. We recommend our optional PC software EasyHeat for the convenient presentation of measurement processes and to manage your customer data.

    - DVGW-tested testo 324 pressure and leakage measuring instrument with Bluetooth® interface, including rechargeable battery and calibration protocol
    - Mains unit for testo 324 leakage measuring instrument
    - System case including feeding unit, connection hose and connection block (instrument, pump and hose connection including overpressure valve and stopcock)
    - Manual test pump for generating the test pressure
    - Adapter for gas boiler measurement connection
    - Y-distributor for the measurement of two pipe sections at the same time
    - High-pressure probe up to 25 bar
    - High-pressure connection
    - Conical test stops ½" + ¾"
    - High-pressure stage stops ⅜ + ¾", ½ + 1 ", ¾ + 1 ¼ "
