    Fast-reaction paddle surface probe (TC type K) - for measurement in places that are difficult to access

    0602 0193

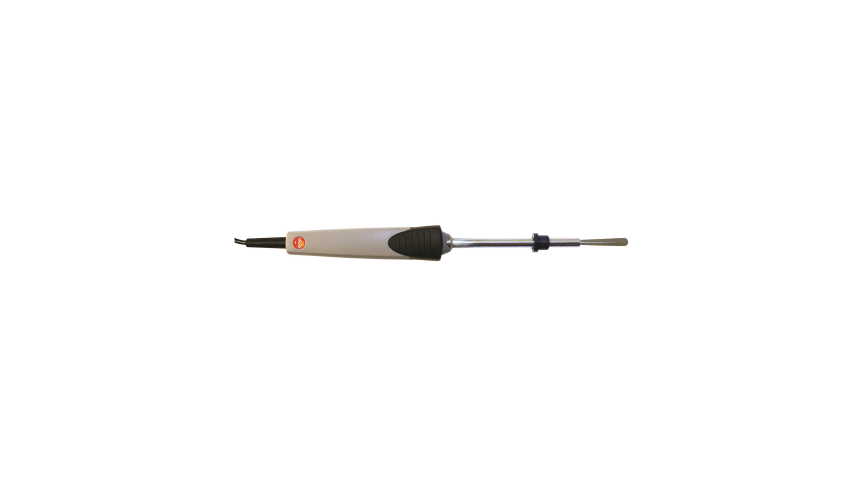

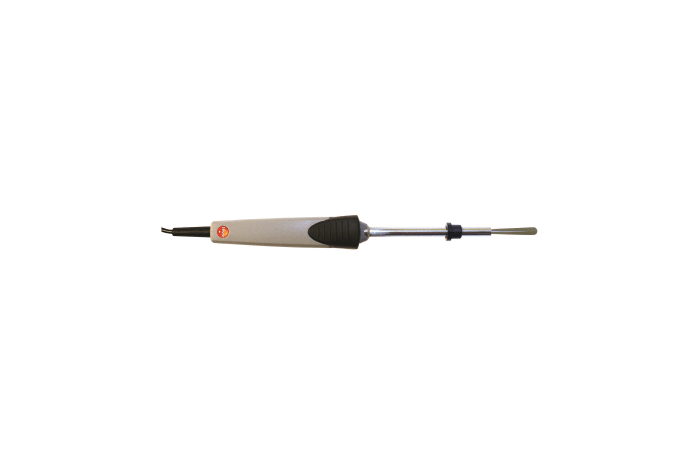

    Fast-reaction paddle surface probe
    Reaktionsschneller Paddel-Oberflächenfühler
  1. Reliable measurement – even in narrow openings and cracks
  2. Particularly fast reaction
  3. Thermocouple type K
    4. With the appropriate measuring instrument, the fast-reaction paddle surface probe enables reliable temperature measurements – even in places that are difficult to access, for example in narrow openings and cracks, thanks to flat, flexible tip.

    1 x fast-reaction paddle surface probe (TC type K) with fixed cable.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    0 to +300 °C
    Accuracy
    Class 2 *
    Reaction time
    5 s
    1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C.

    General technical data

    Weight
    160 g
    Dimensions
    length: 280 mm
    Length probe shaft tip
    40 mm
    Diameter probe shaft
    8 mm
    Diameter probe shaft tip
    7 mm
    Cable length
    1.3 m
    Fixed cable
    yes
    Length probe shaft
    145 mm
    Product colour
    grey
    Interface
    plug thermocouple
