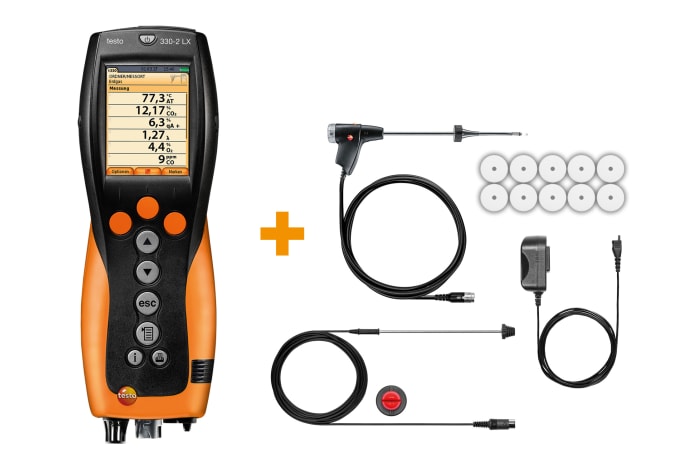

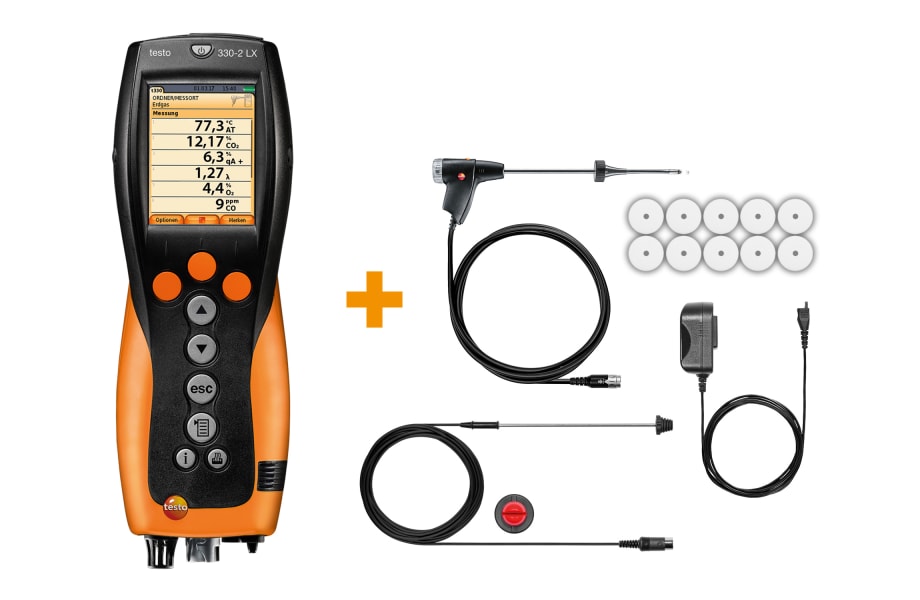

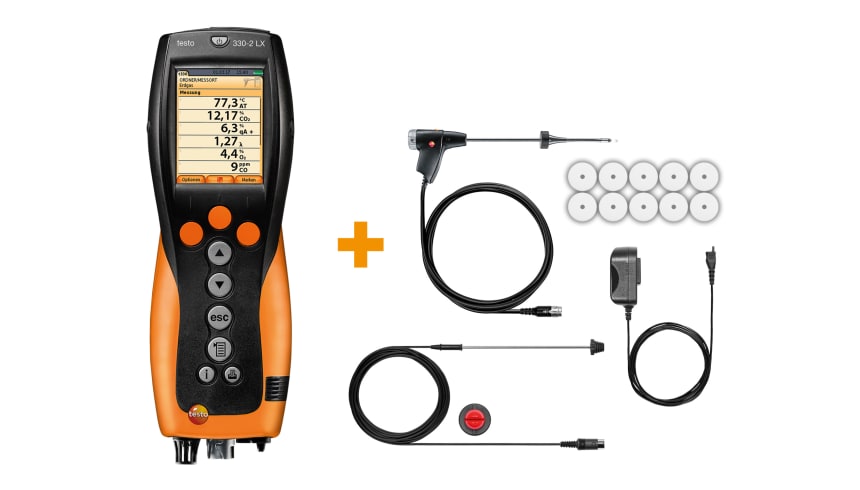

testo 330-2 LX anniversary set in detail
testo 330-2 LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:- High-quality long-life measuring cells: sensors for O2 and CO are included in the scope of delivery – the CO cell is H2-compensated
- 5-year warranty without a maintenance contract on O2 and CO sensor
- The sensors have a service life of up to 6 years. This means at least one sensor replacement is saved in the course of a normal operating life
- Free testo flue gas App for iOS and Android devices (available in the AppStore and Play Store). System requirements: iOS 7.1 or newer, Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
- With its automatic fresh air dilution, the testo 330-2 LX offers a high level of reliability when setting solid fuel and oil systems and protects the sensors up to 30,000 ppm CO content
- Integrated draught and gas zeroing without probe removal: the probe can remain in the flue during zeroing
- Logger function for easy long-term recording of the measurement profile, large memory for up to 500,000 readings
- Pressure measurement up to 300 hPa
- Integrated magnets for easy fixing during the measuring process
- Condensate trap: easy-to-empty collection vessel in the instrument
- User-defined fuels
- IrDa/Bluetooth® interface for data transfer to smartphone/laptop/printer
- ZIV driver for standard industry software
- Integrated customer data memory
Modular flue gas probe, tested and certified by the German Technical Safety Standards Authority (TÜV):
- On the TÜV-tested and certified modular flue gas probe with 300 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
- The probe shaft is really easy to replace, thanks to the quick-change click system on the handle
- The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured
Combustion air temperature probe:
- The combustion air temperature probe can be positioned flexibly, as it has a probe shaft length of 190 mm and a cable length of 2.2 m
