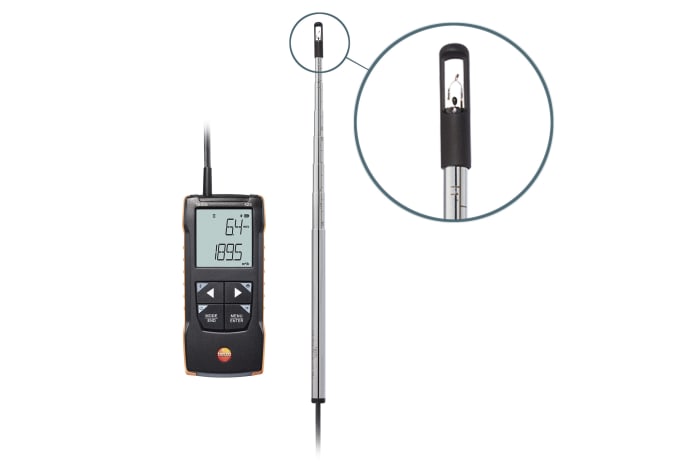

    testo 425 - Digital hot wire anemometer with App connection

    0563 0425
  1. Simple, fast and precise flow and temperature measurement plus volume flow calculation in the ventilation duct
  2. More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 820 mm)
  3. Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
  4. Timed and point mean value calculation
  5. The compact hot wire anemometer testo 425 with telescopic probe is ideal for simple, fast and precise determination of flow velocity and volume flow in ventilation ducts of air conditioning and ventilation systems. The connection to the testo Smart App enables configuration, display (also as second screen) and storage as well as documentation of the measurement directly in the App.
    • not available

      testo 425 - Flow velocity measurement in ventilation ducts

      To the video

    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    Optimally adjusted air conditioning and ventilation systems are a decisive factor for modern buildings. Accordingly, it is important to use the appropriate measurement technology to ensure that the flow, temperature and volume flow in the ventilation duct are correct. The testo 425 thermal anemometer is your fast, easy and precise companion. The cable-connected telescopic probe can be extended up to 820 mm, making it easier to work overhead or in large diameter ducts. All relevant calculations, such as volume flow or time and point averages, are performed automatically by the particularly robust and compact measuring instrument. Incidentally: Configuration of the measuring instrument, display and storage of measured values as well as documentation are all particularly convenient with the testo Smart App. This also turns your smartphone into a second display.

    • testo 425 - Thermal hot wire anemometer with App connection and fixed telescope (max. 820 mm)
    • Transport bag
    • Calibration protocol
    • 3 x AA batteries

    Temperature - NTC

    Measuring range
    -20 to +70 °C
    Accuracy
    ±0.5 °C
    Resolution
    0.1 °C

    Velocity -Thermal anemometer

    Measuring range
    0.01 to 30 m/s
    Accuracy
    ±(0.5 m/s + 5.0 % of mv) (20.01 to +30 m/s)
    ±(0.03 m/s + 4.0 % of mv) (0.01 to +20 m/s)
    Resolution
    0.01 m/s

    General technical data

    Weight
    268 g
    Dimensions
    135 x 60 x 28 mm
    Operating temperature
    Probe: -20 to +70 °C
    -20 to +50 °C
    Product-/housing material
    ABS + PC / TPE
    Cable length
    1.5 m
    Diameter probe shaft
    7.5 mm
    Protection class
    IP20
    Length probe
    180 mm
    Battery life
    35 h
    Battery type
    3x AA
    Storage temperature
    -20 to +50 °C
