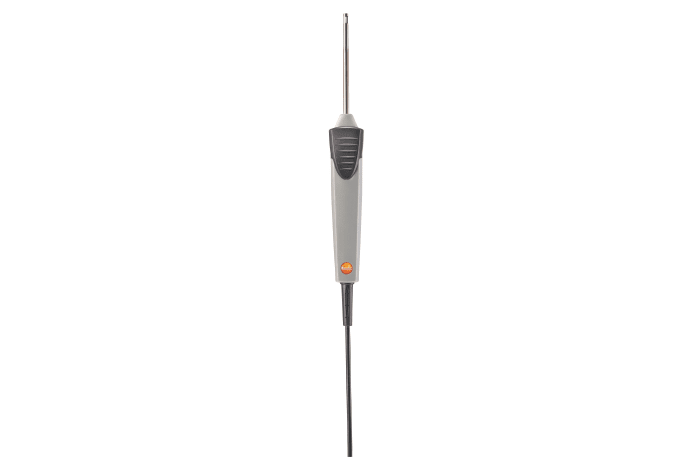

    Efficient, rugged air probe, Pt100

    0609 1773
    Efficient, rugged air probe, Pt100

    Temperature - Pt100

    Measuring range
    -58.0° to 752.0 °F / -50 to +400 °C
    Accuracy
    Class A (-58° to +572 °F) / Class A (-50 to +300 °C)
    Class B (Remaining Range) ¹⁾
    Reaction time
    70 sec
    1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

    General technical data

    Length probe shaft tip
    1.969 in. / 50 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.157 in. / 4 mm
    Cable length
    3.937 ft. / 1.2 m
    Fixed cable
    yes
    Length probe shaft
    4.488 in. / 114 mm
