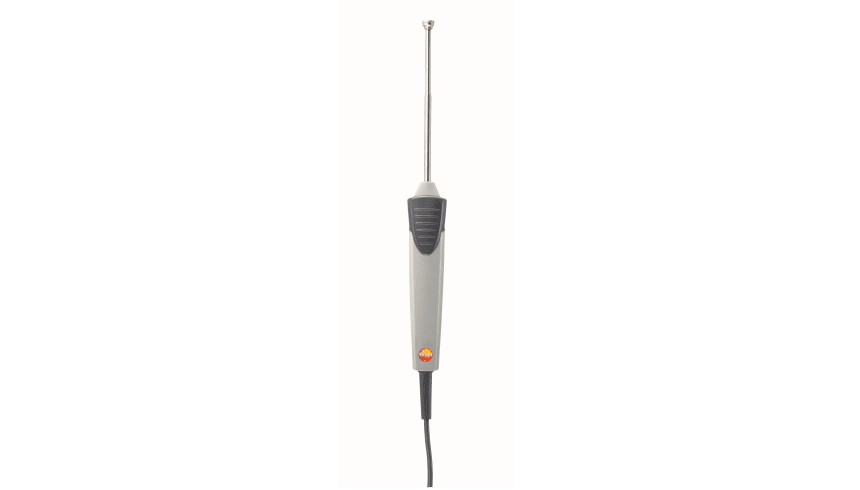

    Rugged, waterproof surface temperature probe, Pt100

    0609 1973
  1. Pt100 sensor for highly accurate measurement results
  2. Waterproof
  3. EN 13485 and HACCP-compliant
  4. Measuring range: -50 to +400 °C
    5. Rugged, waterproof surface temperature probe, Pt100
    The robust, waterproof surface probe (Pt100) can be used to accurately determine the temperature on surfaces. The probe has a wide measuring tip, making it particularly practical for surface measurement.

    Thanks to its high precision, the probe is suitable for use in laboratories. In conjunction with a corresponding measuring instrument (e.g. testo 735), it is also compliant with EN 13485 and HACCP. The probe is therefore also ideal for applications in the food sector.

    Robust waterproof surface probe (Pt100) with fixed cable.

    General technical data

    Weight
    3.81 oz. / 108 g
    Dimensions
    57 in. / 1450 mm
    Length probe shaft tip
    2.165 in. / 55 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.354 in. / 9 mm
    Cable length
    4.265 ft. / 1.3 m
    Fixed cable
    yes
    Protection class
    IP65
    Housing
    ABS / TPE / PUR
    Length probe shaft
    4.724 in. / 120 mm
    Product colour
    Black; grey; silver

    Temperature - Pt100

    Measuring range
    -58.0° to 752.0 °F / -50 to +400 °C
    Accuracy
    Class B ¹⁾
    Reaction time
    40 sec
    1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)
