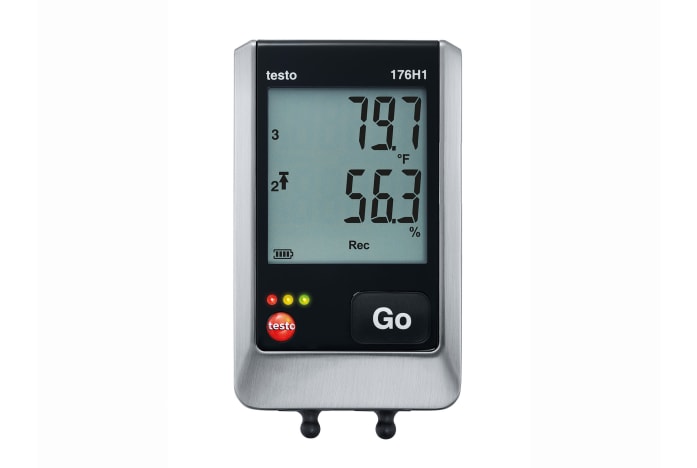

    testo 176H1 - Four-channel humidity and temperature data logger

    0572 1765
    $ 730.15
    1
  1. Professional software with Excel export function for programming the logger and data analysis
  2. Record up to two humidity and temperature values simultaneously with optionally connectable probes
  3. Temperature measuring range from -20 °C to +70 °C
  4. Easy-to-change battery
  5. Automatic measuring data backup when the battery runs out or is changed
  6. Displays violations of limit values
    7. The testo 176H1 humidity and temperature measurement logger has a large display that makes it ideal for the monitoring of temperature and humidty in enviro chamber and storage rooms. The 176H1 is a RH and temperature data logger with external NTC humidity and temperature sensor connections. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
    • not available

      Professional software with Excel export function for programming the logger and data analysis.

    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    The testo 176H1 RH and temperature data logger is an ideal data logger for the monitoring of temperatures and humidity.
    • Data logger with external NTC sensor connections
    • Data transfer possible using the USB port, or SD card (optional)
    • Easy to read large display that shows current reading
    • IP65 protection class
    • Capable of CFR 21 Part 11 Compliancy
    • Free data logger software available for download
    • Data is secured within the logger, and can be password protected using ComSoft

    testo 176H1 humidity and temperature measurement logger with external NTC sensor connections, batteries, certificate of conformity

    Temperature - NTC

    Measuring range
    -4° to 158 °F / -20 to +70 °C
    Accuracy
    ±0.7 °F (Remaining Range) ±1 Digit / ±0.4 °C (Remaining Range) ±1 Digit
    ±0.4 °F (-4° to 158 °F) ±1 Digit / ±0.2 °C (-20 to +70 °C) ±1 Digit
    Resolution
    0.1 °F / 0.1 °C

    Humidity - Capacitive

    Measuring range
    0 to 100 %rH*
    Accuracy
    dependent on probe selected
    Resolution
    0.1 %rH
    *Not for condensing atmospheres.

    General technical data

    Weight
    7.76 oz. / 220 g
    Dimensions
    4 x 2 x 1 in. / 103 x 63 x 33 mm
    Operating temperature
    -4° to 158 °F / -20 to +70 °C
    Housing
    Plastic
    Protection class
    IP65
    Channels
    4 external
    Connectable probes
    2 x NTC temperature probe or 2 x humidity probe
    Product colour
    Black
    Standards
    EU-guideline 2014/30/EU; 2011/65/EU
    Measuring rate
    1 s to 24 h; 2 s to 24 h (online measurement)
    Battery type
    1 x Lithium (TL-5903)
    Battery life
    8 years at 15 min. meas. rate, +25 °C
    Interface
    mini usb, SD card slot
    Memory
    2,000,000 measuring values
    Storage temperature
    -40° to 185 °F / -40 to +85 °C

    Air Probes

  7. Air Probes
    Efficient, robust NTC air probe
     Efficient, robust NTC air probe
      :
      0613 1712

      • Humidity / Temperature Probe

    • Humidity / Temperature Probe
      Humidity / temperature probe 12mm
      Humidity / Temperature Probe 12mm
        :
        0572 6172
      • Humidity / Temperature Probe
        humidity temeprature probe
        Humidity / Temperature Probe 4 mm
          :
          0572 6174

          • Immersion / Penetration Probe

        • Immersion / Penetration Probe
          Temperature probe
          Penetration probe NTC with ribbon cable,
          cable length 2 m/6.5 ft., IP 54
            :
            0572 1001
          • Immersion / Penetration Probe
            0610 1725
            Accurate imm./pen. probe, 19.7 ft. cable, IP 67
              :
              0610 1725
            • Immersion / Penetration Probe
              Waterproof NTC immersion/penetration probe
              Waterproof NTC immersion/penetration probe
                :
                0613 1212
              • Immersion / Penetration Probe
                Stainless steel NTC food probe (IP65) with PUR cable
                Food probe (IP65) stainless steel, PUR cable can be used at up to +176°F, IP54 plug-in connection
                  :
                  0613 2211
                • Immersion / Penetration Probe
                  Robust food penetration probe with special handle, IP 65, reinforced cable (PUR) and reinforced protection against buckling
                    :
                    0613 2411
                  • Immersion / Penetration Probe
                    0613-3211
                    Frozen food probe, corkscrew design
                      :
                      0613 3211
                    • Immersion / Penetration Probe
                      Stainless steel NTC food probe
                      Food probe, stainless steel (IP67), with Teflon cable resistant to temperatures of up to +392°F (short-term to +482°F)
                        :
                        0613 3311
                      • Immersion / Penetration Probe
                        Accurate immersion/penetration probe, cable: 1.5 m long
                        Accurate immersion/penetration probe, cable: 4.9 ft. long, IP 67
                          :
                          0628 0006
                        • Immersion / Penetration Probe
                          0628 7503
                          Temperature Probe
                            :
                            0628 7503
                          • Immersion / Penetration Probe
                            Stub probe, IP 54
                            Stub probe, IP 54
                              :
                              0628 7510

                              • Surface probes

                            • Surface probes
                              Waterproof NTC surface probe for flat surfaces
                               Waterproof surface probe for flat surfaces
                                :
                                0613 1912
                              • Surface probes
                                Pipe wrap probe with Velcro
                                Testo NTC Velcro Pipe Probe will allow you to properly measure Evaporator and Condensor temperatures in real time using your Testo Digital Manifold. Using the velcro pipe probes will also allow the manifold to calculate Superheat and Subcool values, ensuring that they are at a correct, optimized level, and the refrigeration system is running at maximum efficiency.
                                  :
                                  0613 4611
                                  $ 136.00
                                  1
                                • Surface probes
                                  0628 7507
                                  Wall surface temperature probe, e.g. to prove damage in building material
                                    :
                                    0628 7507
                                  • Surface probes
                                    Probe for surface measurement
                                    Temperature probe for surface measurements (NTC) - Measuring range: -50 to +80°C
                                      :
                                      0628 7516

                                      • Monitoring and documentation of building climate

                                      Temperature and relative humidity are crucial factors when it comes to assessing air quality and comfort levels in indoor areas, e.g. in workplaces. Both values can be monitored and documented over the long term using data loggers.
                                      They are also very well suited for checking ventilation systems or for assessing any building moisture which occurs.
                                      The use of special software means measurement configurations can be carried out individually and recorded measurement data can be both analysed and archived.

                                      testo 174-h

                                      Monitoring and documentation of storage temperature and humidity

                                      Correct compliance with storage temperature and humidity is an important prerequisite for the quality assurance of many products, e.g. in the area of food and pharmaceutical products.
                                      As a general rule, data loggers are used to do this. They automatically check and document the profile of the ambient conditions and thus make a crucial contribution to verifiable preservation of product quality.

                                      Viewing breaches of limit values directly on the display means you can respond quickly to temperature and humidity deviations. In addition, with the help of the configuration and read-out software, customer-specific measurement configurations can be carried out and recorded measurement data can be both analysed and archived.

                                      testo 174-h
