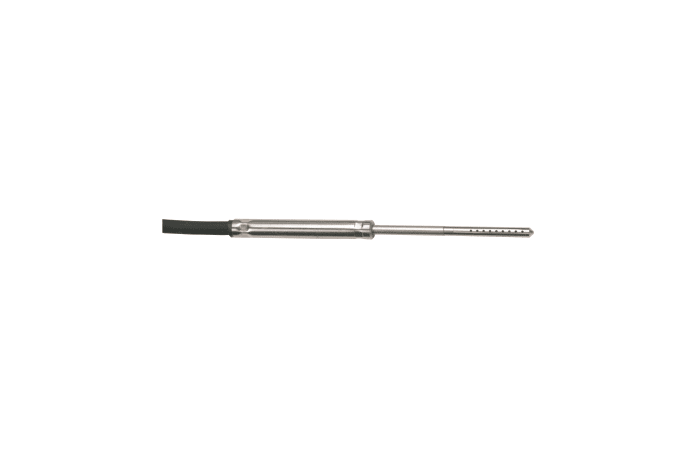

    Humidity / Temperature Probe 4 mm

    0572 6174
  1. Measures air temperature and humidity quickly and reliably
  2. Probe with an exceptionally small diameter of 4 mm
  3. Measuring range: humidity 0 to 100% relative humidity; temperature 0 to +40 °C
    4. Humidity / Temperature Probe 4 mm

    The thin humidity/temperature probe is suitable for measuring temperature and relative humidity in storerooms and work rooms. The exceptionally small diameter of 4 mm also makes it possible to measure in small holes and narrow passageways.

    The thin humidity/temperature probe can be installed for long-term measurements. The probe can be installed using a PG gland or clamp, for example (not included in delivery).

    The humidity sensor for measuring relative humidity is long-term stable, condensation-resistant and traceable to international humidity standards, such as ILAC, PTB and NIST. Thus, even after years of use you can still count on measurement results that are reliable and correct.

    1 x thin humidity/temperature probe with 7 foot cable.

    Temperature - NTC

    Measuring range
    32.0° to 104.0 °F / 0 to +40 °C
    Accuracy
    *Please also take into account the device uncertainty.
    ±0.4 °F / ±0.2 °C

    Humidity - Capacitive

    Measuring range
    0 to +100 %rH
    Accuracy
    ±2 %rH at +77 °F (2 to +98 %rH) / ±2 %RH at +25 °C (2 to +98 %RH)
    long-term stability: ±1 %RH / year
    *The sensor accuracy corresponds to the system accuracy.
    ±0.08 %rF/K (k=1)

    General technical data

    Length probe shaft tip
    2.559 in. / 65 mm
    Diameter probe shaft tip
    0.157 in. / 4 mm
