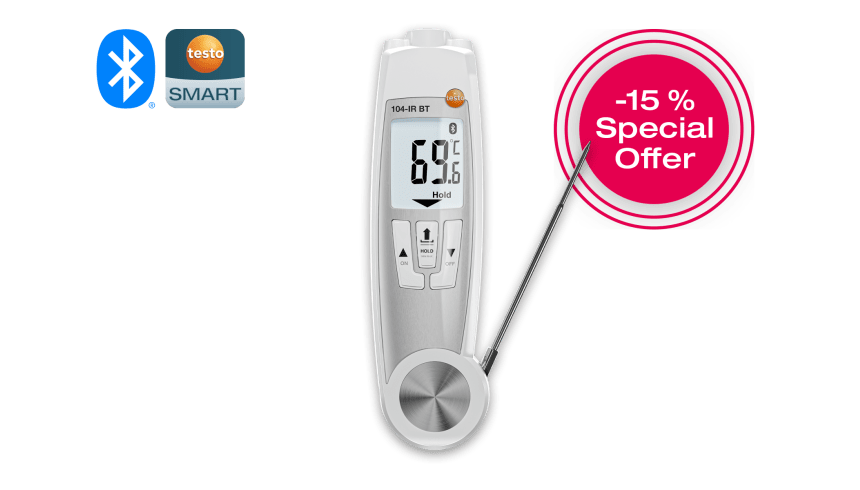

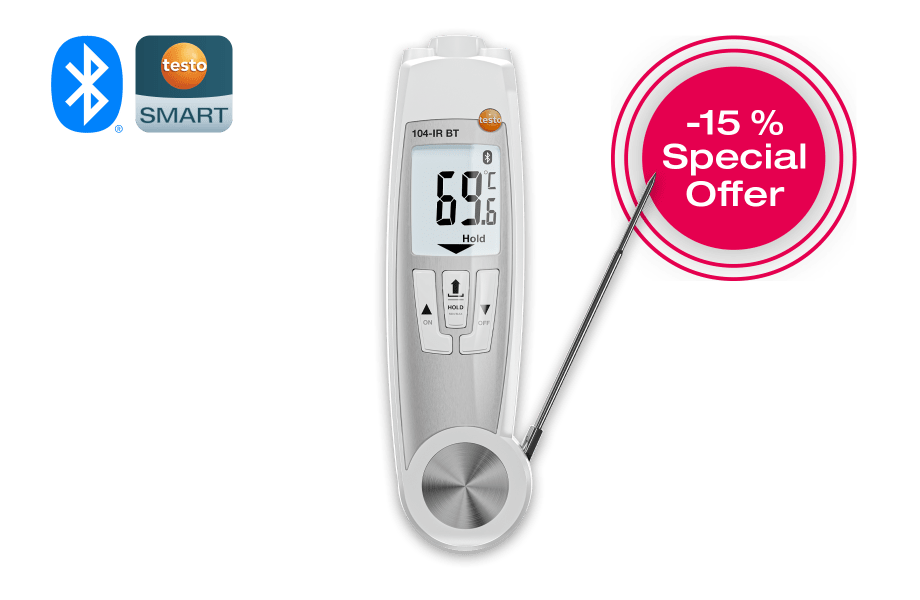

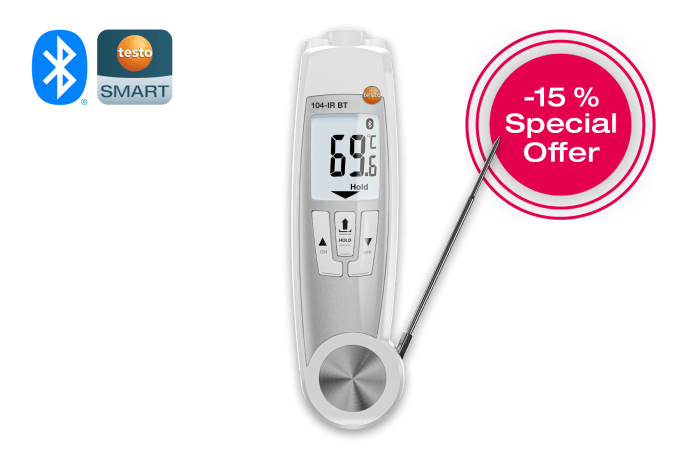

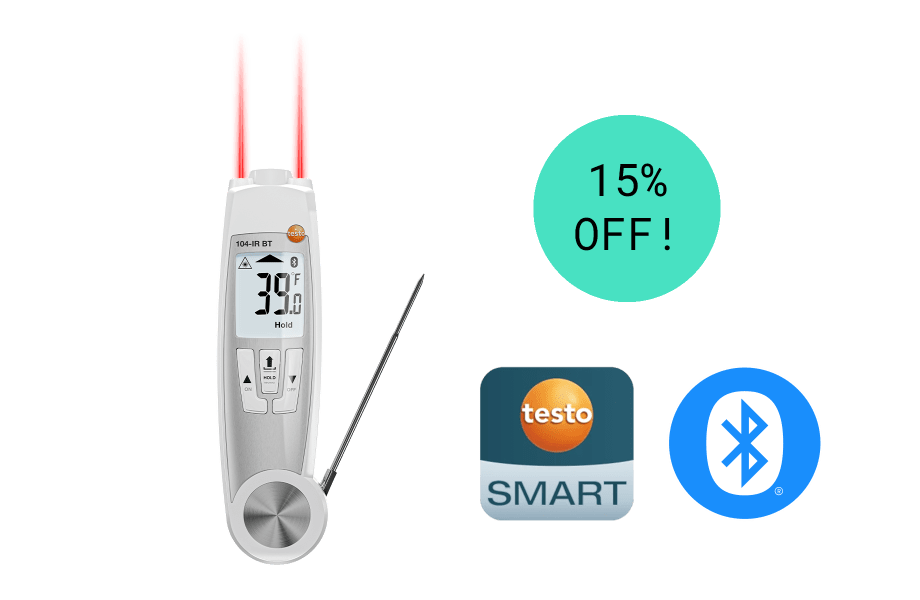

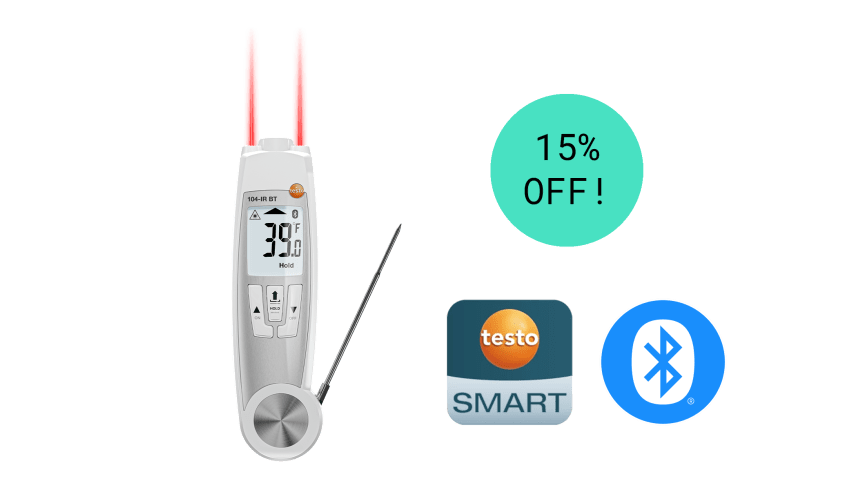

    testo 104-IR BT - Infrared/penetration thermometer with app connection

    0560 1045 61
    $ 210.00
    1
  1. A measuring instrument for determining surface and core temperature with intuitive operation including seamless documentation using the testo Smart App
  2. Measurements possible with or without app. The app measurement program supports you with your measurements, It also supports you with (critical) control points (CP/CCP)
  3. Error-free documentation using the testo Smart App
  4. Tracking of measurement data for regulatory requirements and internal quality assurance
  5. The testo 104-IR BT penetration thermometer with integrated infrared sensor is a versatile measuring instrument for quick and reliable temperature checks in busy daily practices and is particularly suitable for checks as part of HACCP processes. The testo Smart App connection makes digital documentation and temperature limit monitoring (CP/CCP) easier than ever.
    • not available

      A measuring instrument for determining surface and core temperature with intuitive operation including seamless documentation via the testo Smart App

    The testo 104-IR BT enables non-contact measurement of surface temperatures and also offers the option of measuring the core temperature if upper or lower limit values are violated. All measurement values are automatically transmitted to the testo Smart App via Bluetooth  -  reliably and securely.

    Operation of the testo 104-IR BT is simple and intuitive:
    The compact instrument's penetration probe is safely stowed away in the housing . The instrument is activated as soon as the penetration probe is folded out. The infrared measurement starts immediately at the touch of a button. The measurement results are very easy to read on the large display, the few buttons are self-explanatory and can be operated easily without much training.

    Another practical advantage: The penetration/infrared thermometer is waterproof (IP65).

    Thanks to its functionality and user-friendliness, the testo 104-IR BT enables efficient and precise temperature measurement without time-consuming processes or compromises.

    With this instrument, you have full control over all temperature measurements in the food sector and can ensure the quality of your products:
    • Wide range of applications with or without app connection
    • Precise control point measurements (CP/CCP) with error-free digital documentation

    The waterproof infrared/penetration thermometer with Bluetooth testo 104-IR BT including folding penetration probe, batteries, quick guide and calibration protocol.


    Temperature - NTC

    Measuring range
    -58 to +482 °F / -50 to +250 °C
    Accuracy
    ±1 % of mv (+212 to +482 °F) / ±1 % of mv (+100 to +250 °C)
    ±1.8 °F (-58 to -22.2 °F) / ±1.0 °C (-50 to -30.1 °C)
    Resolution
    32.2 °F / 0.1 °C
    Reaction time
    t99 = 10 sec (measured in moving liquid)
    Measuring rate
    0.5 sec

    Temperature - Infrared

    Measuring range
    -22 to +482 °F / -30 to +250 °C
    Accuracy
    ±2.5 (-30.0 to 20.1 )
    ±3.6 °F (-4.0 to 31.8 °F) / ±2.0 °C (-20.0 to -0.1 °C)
    ±2.7 °F or ±1.5 % of the measurement value (+0.0 to +482.0 °F) / ±1.5 °C or ±1.5 % of the measurement value (+0.0 to +250.0 °C)
    Resolution
    32.2 °F / 0.1 °C
    Measuring rate
    0.5 sec
    Class 2 / DIN EN 60825-1:2007

    General technical data

    Weight
    7 oz. (incl. batteries) / 207 g (incl. batteries)
    Operating temperature
    -4 to +122 °F / -20 to +50 °C
    Housing
    ABS / TPE / PC, diecast zinc, stainless steel
    Protection class
    IP65
    Mobile app
    Can be used with or without testo Smart App
    Spectral range
    8 ... 14 μm
    Laser
    2 point laser
    Optics
    10:1 + opening diameter of the sensor (12 mm)
    Wavelength
    650nm
    Power
    <1mW
    Dimensions (probe folded out)
    281 x 48 x 21
    Dimensions (probe not folded out)
    178 x 48 x 21
    Measurement value
    Temperature °C / °F / °R
    Standards
    EN 13485; HACCP International; NSF
    Battery type
    2 AAA batteries
    Storage temperature
    -22 to +122 °F (without batteries up to +70 °C) / -30 to +50 °C (without batteries up to +70 °C)
