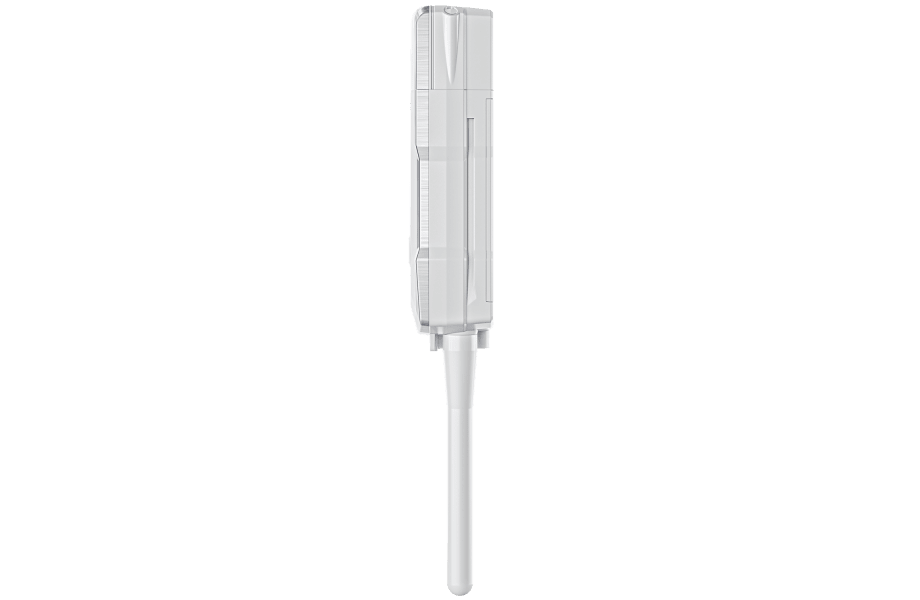

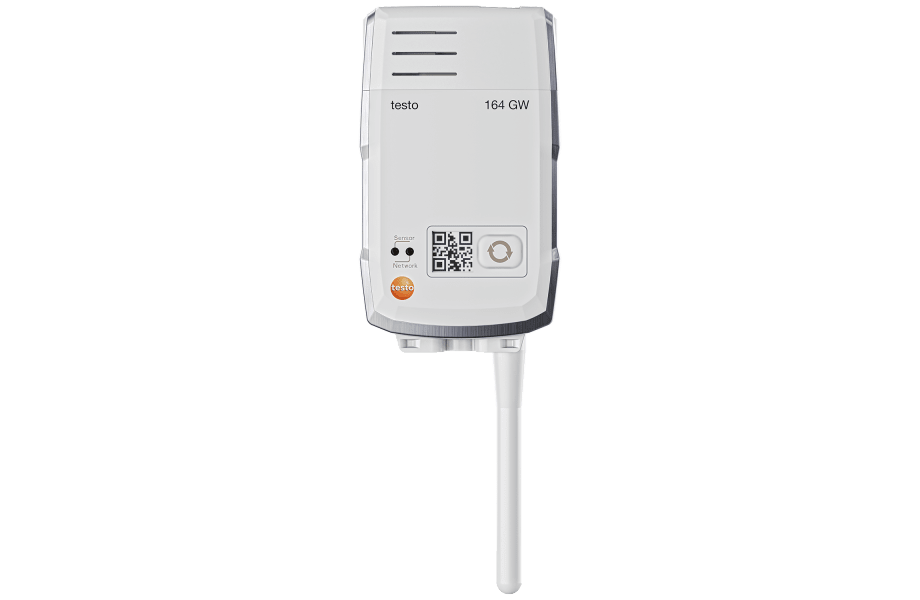

    testo 164 GW - Gateway for mini online data loggers with Ethernet

    0572 1649 02
  1. Limit value violation alarms by push notification, e-mail or (optionally) SMS
  2. Secure and automated data transfer between testo 164 mini online data logger and testo Cloud
  3. Connection to the testo Smart App:
    Simple commissioning, push alarms and dashboard
  4. Automatic measurement value documentation in testo Saveris (Cloud)
  5. Data transfer by Ethernet

    6. The testo 164 Gateway is the component required to transfer the measurement values from the testo 164 mini online data loggers to the cloud. The testo 164 Gateways are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measured values can be viewed and analyzed there.

    The Testo Data Monitoring license is required to use the system.

    The gateway receives the measurement data from the testo 164 mini wireless data loggers via the proprietary wireless connection. The measurement values are transmitted to the testo Cloud by Ethernet.

    If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS.

    You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC.

    • testo 164 Gateway Ethernet
    • Wall bracket
    • Short instructions
    • White packaging

    General technical data

    Weight
    8.8 oz. / 250 g (with batteries)
    Dimensions
    3 x 5 x 1 in. / 69 x 119 x 29 mm
    Operating temperature
    32° to 122 °F / 0 to +50 °C
    Protection class
    IP42
    Connection
    Power supply
    External power supply 4xAA backup battery
    Battery life
    Shutdown after 10 minutes
    Storage temperature
    -22° to 140 °F (without batteries) / -30 to +60 °C (without batteries)

    Accessories

  6. Accessories
    Magnetic adapter for testo Saveris 2 wall bracket
    Magnetic adapter for wall bracket
      :
      0554 2001
      $ 35.00
      1
