    testo 805 Kit - Infrared thermometer with protective case

    0563 8051
  1. Infrared thermometer for non-contact surface temperature measurements
  2. TopSafe protective case included in scope of delivery: protects from water and dirt in accordance with IP 65
  3. Scan mode for long-term measurement
  4. Pocket size measuring instrument: compact for easy handling
    5. A handy infrared thermometer from Testo for non-contact measurement of surface temperatures, the testo 805 is ideal for use in the food sector, with food controls, for example. Whether you are checking incoming goods, or a refrigerated cabinet in a supermarket, the temperature of your products can be recorded at the touch of a button.
    The testo 805 mini infrared thermometer is perfect anywhere needing a quick surface temperature check: for example, you can use it for food controls in supermarkets to record the temperature of incoming goods, or to scan entire refrigerated sections. However, it is not only in the food sector (industry and retail), but also in building services that the Testo infrared thermometer performs reliably.

    Top-performing, pocket size infrared thermometer

    Its small size (80 mm long) makes the infrared thermometer particularly practical, fitting into any pocket and always on hand. Its 1:1 optics system means it is suitable for close-up temperature measurements. At the touch of a button, the Testo infrared thermometer measures the surface temperature of the object being measured without coming into contact with it. If you need to measure the temperature of entire pallets of goods or refrigerated sections you can use scan mode for continuous measurement.

    The scope of delivery of the testo 805 infrared thermometer includes the TopSafe protective case. This protects the measuring instrument from dirt and water in accordance with protection class IP 65. This protective case is of great benefit, e.g. in the food sector (e.g. food controls), where a humid environment and spray water can be expected.

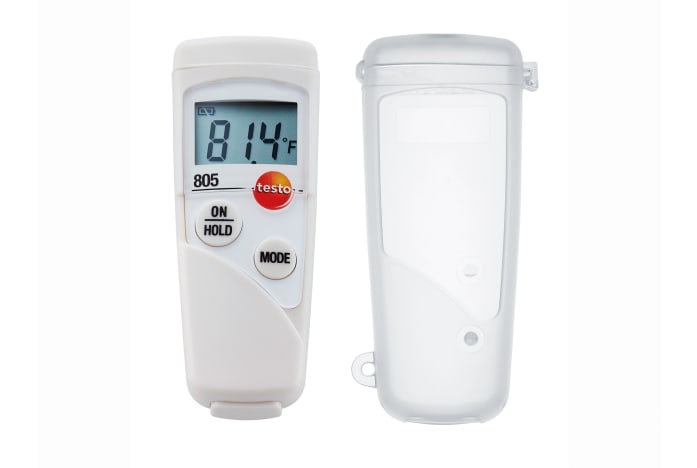

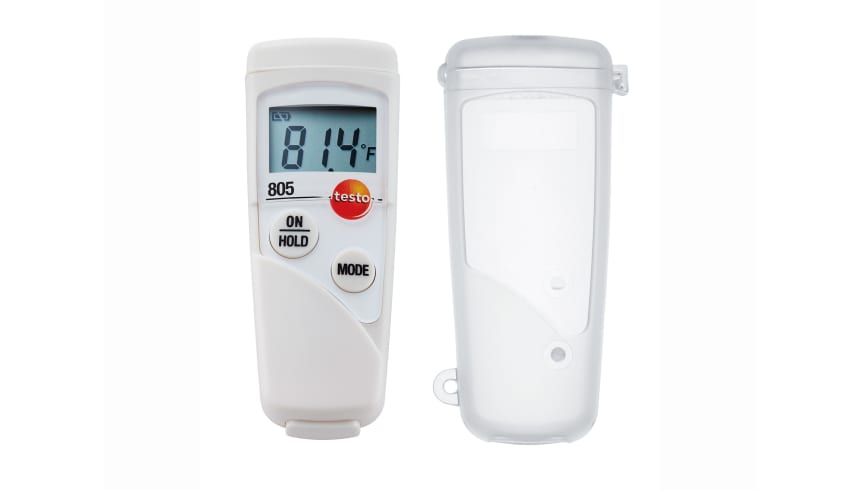

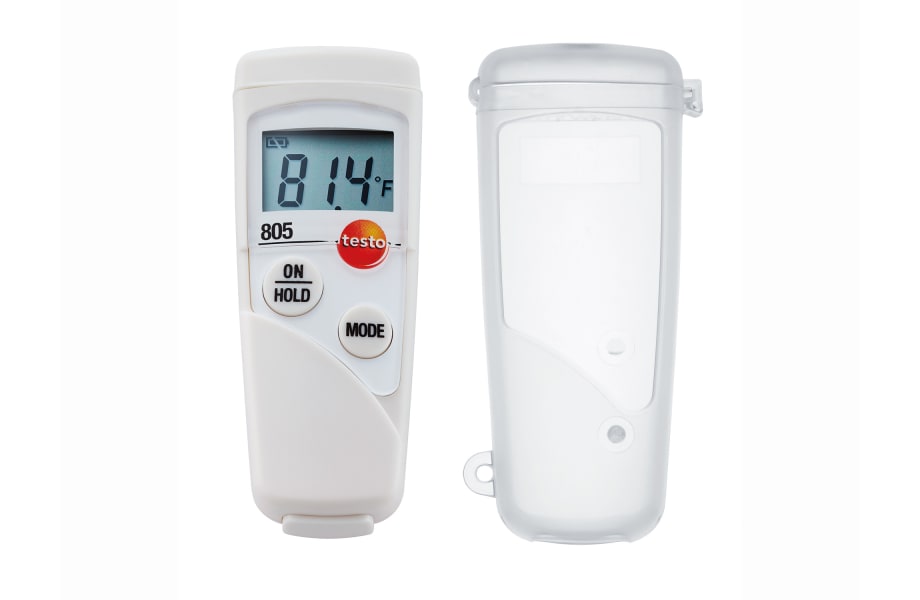

    Testo 805 infrared thermometer, including TopSafe protective case and batteries.



    General technical data

    Weight
    1 oz. / 28 g
    Reaction time
    < 1 sec
    Dimensions
    3 x 1 x 1 in. / 80 x 31 x 19 mm
    Operating temperature
    32.0° to 122.0 °F / 0 to +50 °C
    Housing
    ABS
    Battery type
    1 x lithium type: CR 2032
    Battery life
    40 h (typical)
    Storage temperature
    -4.0° to 149.0 °F / -20 to +65 °C

    Temperature - Infrared

    Measuring range
    -13.0° to 482.0 °F / -25 to +250 °C
    Accuracy
    ±1.8 °F (28.4° to 104.0 °F) / ±1 °C (-2 to +40 °C)
    ±5.4 °F (-13.0° to -5.8 °F) / ±3 °C (-25 to -21 °C)
    ±2.7 °F (104.2° to 302.0 °F) / ±1.5 °C (+40.1 to +150 °C)
    ±3.6 °F (-4.0° to 28.2 °F) / ±2 °C (-20 to -2.1 °C)
    ±2.0 % of mv (302.2° to 482.0 °F) / ±2 % of mv (+150.1 to +250 °C)
    Resolution
    0.1 °F (14.2° to 391.8 °F) / 0.1 °C (-9.9 to +199.9 °C)
    1 °F / 1 °C (Remaining Range)
