- testo 300 Longlife kit 3 with printer

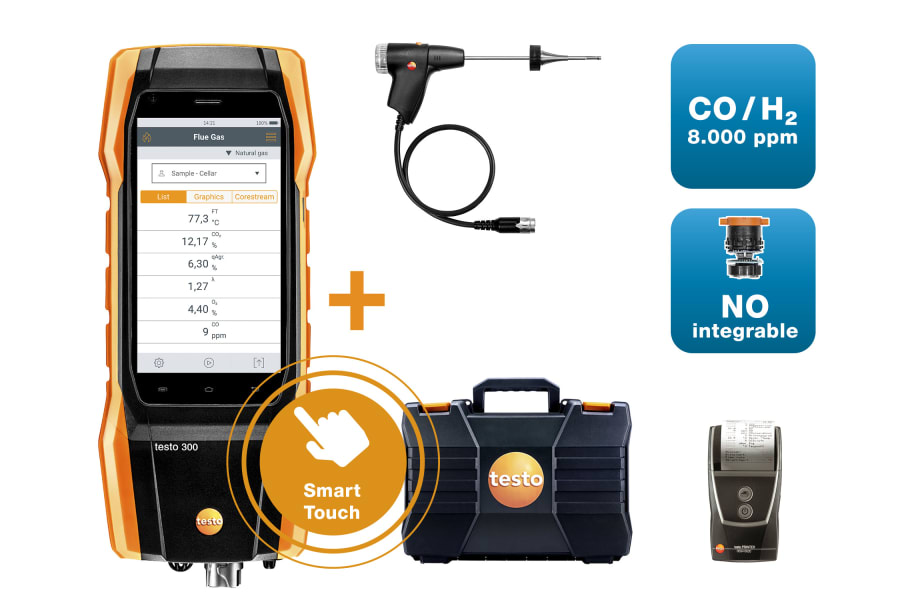

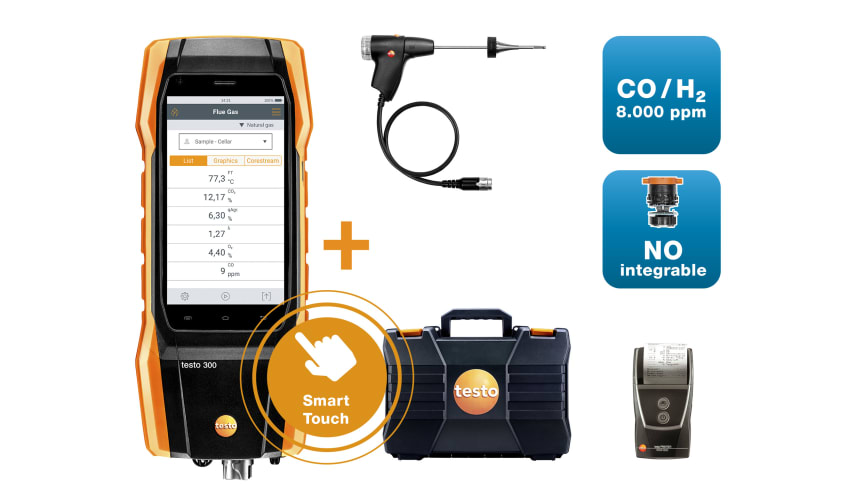

testo 300 Longlife kit 3 with printer - flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm, NO - can be retrofitted)
0564 3004 73testo 300 Longlife kit 3 with printer - flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm, NO - can be retrofitted)
0564 3004 73Intuitiven, pameten, učinkovit: intuitivni merilni meniji, hiter odziv pametnega zaslona, občutljivega na dotik, dokumentacija na licu mesta, pošiljanje poročil po e-pošti
Vključno z O2, CO H2 senzorjem, ki prepozna do 8,000 delčkov v minuti, (NO senzor - možna vnovična nastavitev)
Visokokakovostna tehnologija senzorja z delovno dobo do 6 let
V kompletu: testo 300 dolgotrajna naprava za analizo dimnih plinov, vključno z O2 in CO H2 senzorjem, ki prepozna do 8.000 delčkov v minuti, napajalna enota, modularna sonda za dimne pline, rezervni filtri proti umazaniji, testo Bluetooth®
Carry out installation and maintenance work on heating systems several times a day using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 Longlife flue gas analyzer is supplied with O2 and CO H2-compensated sensor up to 8,000 ppm (NO - can be retrofitted), TÜV-tested modular flue gas probe, testo Bluetooth® printer, testo Bluetooth® Connector, case and practical accessories.
- testo 300 Longlife flue gas analyzer with O2 and CO H2-compensated sensor up to 8,000 ppm, NO - can be retrofitted (0633 3004 73)
- USB mains unit, including cable (0554 1106)
- Modular flue gas probe, 180 mm; Ø 8 mm; Tmax 500°C; TÜV-tested; 2.2 m hose (0600 9760)
- Spare dirt filters for modular flue gas probe; 10 off (0554 3385)
- BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
- testo Bluetooth® Connector (0554 3004)
- Spare thermal paper for printer, indelible ink (0554 0568)
- Free download EasyHeat PC software (0554 3332)
- Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Spare dirt filters - for probe handle (10 off)
BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps
Spare thermal paper for printer, permanent
Free download: testo EasyHeat PC software
Instrument case (height: 130 mm) - for instrument, probes and accessories
testo Bluetooth Priključek
Temperature - TC Type K (NiCr-Ni)
| Measuring range | −40 to +1200 °C |
|---|---|
| Accuracy | ±0,5 % of mv (Remaining Range) ±0,5 °C (0,0 to +100,0 °C) |
| Resolution | 0,1 °C (−40 to +999,9 °C) 1 °C (Remaining Range) |
Differential Pressure - Piezoresistive
| Measuring range | −100 to +200 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (+100,1 to +200 hPa) ±0,5 hPa (0 to +50,0 hPa) ±1 % of mv (+50,1 to +100,0 hPa) |
| Resolution | 0,01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Flue gas CO (with H₂-compensation)
| Measuring range | 0 to 8000 ppm |
|---|---|
| Accuracy | ±10 ppm or ±10 % of mv (0 to 200 ppm) ±10 % of mv (2001 to 8000 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) |
| Resolution | 1 ppm |
Flue gas COlow (with H₂-compensation)
| Measuring range | 0 to 500 ppm |
|---|---|
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0,1 ppm |
Flue gas NO
| Measuring range | 0 to 3000 ppm |
|---|---|
| Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
| Resolution | 1 ppm |
Flue gas Nolow
| Measuring range | 0 to 300 ppm |
|---|---|
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39,9 ppm) |
| Resolution | 0,1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | −9,99 to +40 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (3,01 to +40 hPa) ±0,02 hPa (+0,1 to +3,00 hPa) ±0,005 hPa (+0 to +0,1 hPa) |
| Resolution | 0,001 hPa (0 to 0,1 hPa) 0,01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0,1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99,9 % |
|---|---|
| Resolution | 0,1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | −5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
| Memory | 1.000.000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | −20 to +50 °C |
| Charging temperature | 0 to +45 °C |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring Range | -50 to +50 Pa |
|---|---|
| Accuracy | ±3 % of mv (Remaining Range) ±0,3 Pa (< 10 Pa) |
| Resolution | 0,1 Pa |
General technical data
| Diameter probe shaft | 8 mm |
|---|---|
| Cable length | 2,2 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 524 g |
General technical data
| Weight | 12 g |
|---|---|
| Dimensions | height: 2,9 mm, ø: 29,7 mm |
| Product colour | white |
General technical data
| Dimensions | 120 x 75 x 60 mm |
|---|---|
| Product-/housing material | paper |
| Product colour | white |
| Weight | 50 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 3880 g |
|---|---|
| Dimensions | 520 x 400 x 130 mm (LxWxH) |
| Product-/housing material | Plastic |
| Product colour | Black |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
:
0632 1272
0632 1272
€ 368,00 € 448,96
Flue gas probes
Flue gas probes
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
:
0600 9760
0600 9760
€ 255,00 € 311,10
Flue gas probes
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
:
0600 9761
0600 9761
€ 262,00 € 319,64
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9762
0600 9762
€ 254,00 € 309,88
Flue gas probes
Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9763
0600 9763
€ 263,00 € 320,86
Flue gas probes
Our flexible flue gas probe helps you to carry out flue gas measurements even on difficult-to-access measurement apertures. Since the probe shaft is made of very flexible plastic, you can easily bend it, allowing it to be inserted into exhaust flues which are obstructed (e.g. by sloping ceilings).
:
0600 9770
0600 9770
€ 332,00 € 405,04
Flue gas probes
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
:
0600 9740
0600 9740
€ 165,00 € 201,30
Flue gas probes
Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C
:
0600 9741
0600 9741
€ 180,00 € 219,60
Further probes
Further probes
Dual wall clearance probe for O2 supply air measurement
:
0632 1260
0632 1260
€ 149,00 € 181,78
Further probes
Solid fuel kit - including probe shaft and adapter
:
0600 9765
0600 9765
€ 425,00 € 518,50
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
:
0615 5505
0615 5505
€ 54,00 € 65,88
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
:
0615 5605
0615 5605
€ 195,00 € 237,90
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
:
0615 1212
0615 1212
€ 79,00 € 96,38
Temperature probes
Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
:
0600 9799
0600 9799
€ 78,00 € 95,16
Sets
Sets
testo 300 Longlife kit 3 with printer: Flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm, NO - can be retrofitted)
:
0564 3004 73
0564 3004 73
€ 2.008,00 € 2.449,76
Sets
testo 300 dolgotrajni komplet 3: Naprava za analizo dimnih plinov (O2, CO H2do 8,000 ppm, NO - možna vnovična nastavitev)
:
0564 3004 72
0564 3004 72
€ 1.722,00 € 2.100,84
Accessories
Accessories
BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps
:
0554 0621
0554 0621
€ 273,00 € 333,06
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
:
0554 0307
0554 0307
€ 123,00 € 150,06
Accessories
Free download: testo EasyHeat PC software
:
0554 3332
0554 3332
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
:
0516 3300
0516 3300
€ 85,00 € 103,70
Accessories
Instrument case with double base (height: 180 mm) - for instrument, probes and accessories
:
0516 3301
0516 3301
€ 133,00 € 162,26
Accessories
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
:
0554 1203
0554 1203
€ 48,90 € 59,66
Accessories
Pressure set for testing gas line testo 330-1/-2 LL version 2010
:
0554 1213
0554 1213
€ 99,00 € 120,78
Accessories
Instrument bag with carrying strap
:
0516 3001
0516 3001
€ 69,00 € 84,18
Measurement cells
Measurement cells
CO sensor (without H2 compensation) with 4-year warranty
:
0393 0051
0393 0051
Measurement cells
CO sensor, (H2-compensated) with 4-year warranty
:
0393 0101
0393 0101
Measurement cells
NO sensor
:
0393 0151
0393 0151
Merjenje dimnih plinov na ogrevalnih sistemih
Popolno orodje za merjenja, ki vključujejo ogrevalne sisteme:
- visokokakovostni dolgotrajni senzorji z delovno dobo do 6 let, upravljanje preko zaslona občutljivega na dotik, jasno strukturirani merilni meniji, izdelava dokumentacije na licu mesta, pošiljanje poročil po e-pošti, veliki HD zaslon, robustno ohišje
Nadaljnja področja uporabe:
- merjenje tlaka pretoka plina*, preizkušanje plinovoda*, diferenčno merjenje temperature (Temperatura pretoka in povratnega toka v ogrevalnih sistemih)*, merjenje CO v okolici*, merjenje dimovoda na ogrevalnih sistemih*
* Imejte v mislih: Za ta merjenja so potrebni dodatna sonda ali pripomočki, ki se morajo naročiti posebej.
