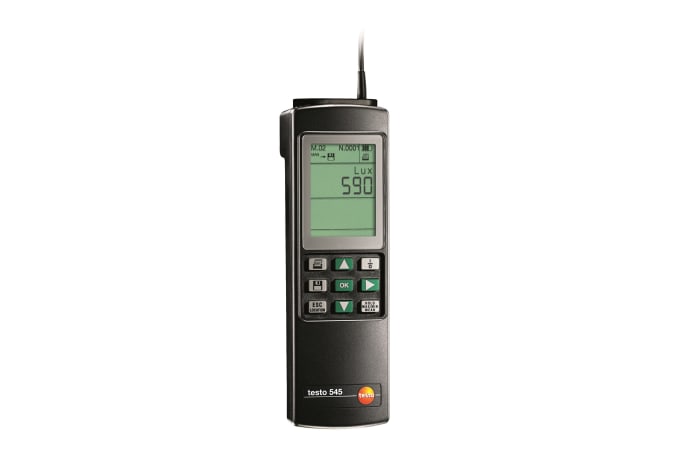

    testo 545 - Light meter

    0560 0545
  1. Precise light intensity readings in lux
  2. Large memory of up to 3,000 readings
  3. Selective / time-based averaging
  4. Measuring site management with optional software: up to 99 measuring sites available
    5. Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product
    The testo 545 lux meter for natural and artificial light comes with a permanently attached light sensor, which allows you to measure the light intensity in the workplace, and at offices, schools, and hospitals quickly and reliably. The optional software can be used to compile a light profile from the light intensity readings.

    At-a-glance look at the benefits of the testo 545 light meter

    The testo 545 lux meter can be used for selective and long term light intensity measurements. It has a built-in data logger which can save up to 3,000 readings, and can be used to perform  selective and time-based averaging. The optional testo turbo printer allows you to print out on site.
    The optional PC software allows you to set up to 99 measuring sites, allocate the readings to the relevant measuring sites, and connect individually saved readings to form a curve. The light profile obtained from such data provides you with a picture of the uniformity of the lighting.

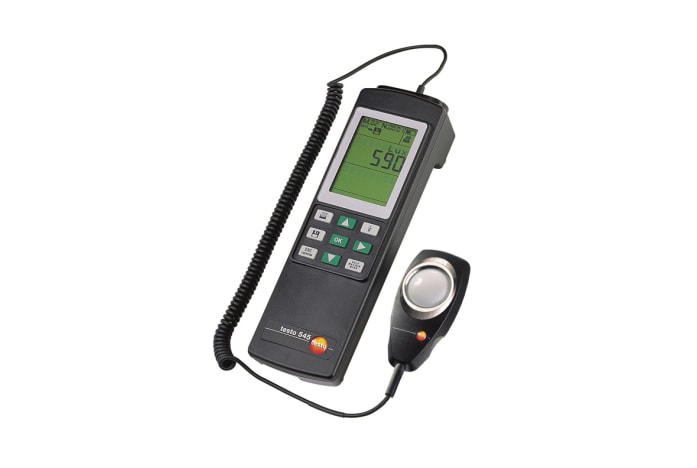

    testo 545 light meter with permanently attached light sensor, calibration certificate, and batteries

    General technical data

    Weight
    18 oz. / 500 g
    Dimensions
    9 x 3 x 2 in. / 220 x 68 x 50 mm
    Operating temperature
    32.0° to 122.0 °F / 0 to +50 °C
    Housing
    ABS
    Battery type
    9V block battery
    Battery life
    50 h
    Connection
    Fixed cable, coiled
    Display type
    LCD
    Display size
    2 lines
    Data transfer
    RS232 cable connects instrument to PC (6 ft / 1.8 m) for data transfer
    Memory
    3,000 measuring values
    Storage temperature
    -4.0° to 158.0 °F / -20 to +70 °C

    Light

    Measuring range
    0 to 100000 Lux
    Accuracy
    F2 = 5 % cos like rating
    Class C according to DIN 5032-7
    Accuracy to DIN 13032-1:
    F1 = 6 % V (Lambda) adaptation
    Resolution
    1 Lux (0 to 32000 Lux)
    10 Lux (0 to 100000 Lux)
