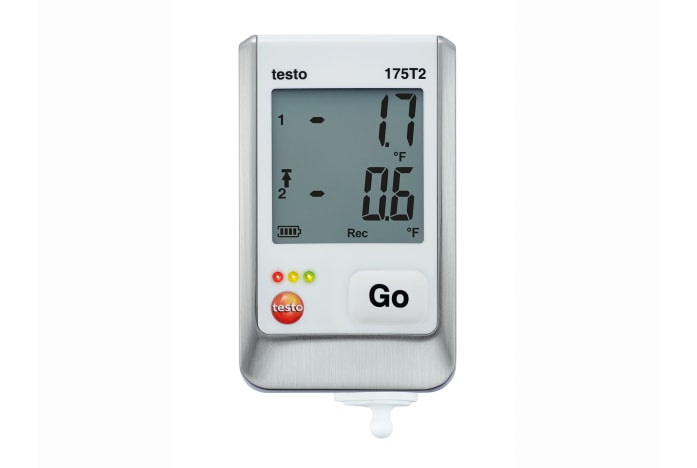

    testo 175T2 - Temperature data logger

    Product no. 0572 1752
    $ 323.85
    1
    Find dealer
    Prices plus shipping costs
    Ships in approximately: 12 working days
    +1-484-705-0777
    Make a request
    Your advantages
  1. Professional software with Excel export function for programming the logger and data analysis
  2. Temperature measuring range from -40 °C to +120 °C
  3. Wall mount
  4. Automatic measuring data backup when the battery runs out or is changed
  5. Transfer of measuring data via SD card
  6. Displays violations of limit values
    7. The testo 175T2 temperature data logger features a large display and alarm indication that makes it ideal for continuous monitoring of temperatures. The temperature measurement logger has both an internal NTC thermistor, as well as capability for an external NTC probe connection, which allows for simultaneous measurements of ambient and product temperatures. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
    • not available
      Professional software with Excel export function for programming the logger and data analysis.

      Professional software with Excel export function for programming the logger and data analysis.

    Description

    The testo 175T2 is an ideal data logger for the continuous monitoring of ambient and product temperatures. With its customizable alarm, the 175T2 will alert when user defined thresholds have been exceeded.
    • High accuracy internal NTC thermistor sensor for reliable data
    • External NTC probe port compatible with a variety of different probe types
    • Data transfer possible using the USB port, or SD card (optional)
    • Easy to read large display that shows current reading and exceeded measurement limits
    • IP65 proection class
    • Capable of CFR 21 Part 11 Compliancy
    • Free data logger software available for download
    • Data is secured within the logger, and can be password protected using ComSoft
    • Includes lockable wall mount to prevent theft or tampering
    Please note: The testo 175T2 temperature measurement logger requires an interface to use the free data logger software. One interface can be used for multiple instruments.

    Delivery Scope

    testo 175T2 temperature data logger, batteries, wall mount, lock, and certificate of conformity

    Technical data

    Temperature - NTC

    Measuring range
    -31° to 131 °F internal / -35 to +55 °C internal
    -40 to +248 °F external / -40 to +120 °C external
    Accuracy
    internal: ±0.9 °F (-31° to 131 °F) ±1 Digit / internal: ±0.5 °C (-35 to +55 °C) ±1 Digit
    external: ±0.5 °F (-40° to 248 °F) ±1 Digit / external: ±0.3 °C (-40 to +120 °C) ±1 Digit
    Resolution
    0.1 °F / 0.1 °C

    General technical data

    Weight
    4.59 oz. / 130 g
    Dimensions
    4 x 2 x 1 in. / 89 x 53 x 27 mm
    Operating temperature
    -31° to 131 °F / -35 to +55 °C
    Housing
    Plastic
    Protection class
    IP65
    Channels
    1 internal; 1 external
    Product colour
    white
    Standards
    EU-guideline 2014/30/EU; 2011/65/EU; DIN EN 12830
    Measuring rate
    10 s - 24 h
    Battery type
    3 x AIMn type AAA or Energizer
    Battery life
    3 years (15 min. meas. rate, +25 °C)
    Interface
    mini usb, SD card slot
    Memory
    1,000,000 measuring values
    Storage temperature
    -31° to 131 °F / -35 to +55 °C

    Probe

    Air Probes

  7. Air Probes
    Efficient, robust NTC air probe
     Efficient, robust NTC air probe
      Product no.:
      0613 1712
      $ 129.00
      1

      • Food Probe

    • Food Probe
      Stainless steel NTC food probe (IP65) with PUR cable
      Food probe (IP65) stainless steel, PUR cable can be used at up to +176°F, IP54 plug-in connection
        Product no.:
        0613 2211
        $ 196.00
        1
      • Food Probe
        Robust food penetration probe with special handle, IP 65, reinforced cable (PUR) and reinforced protection against buckling
          Product no.:
          0613 2411
          $ 191.00
          1
        • Food Probe
          0613-3211
          Frozen food probe, corkscrew design
            Product no.:
            0613 3211
            $ 299.00
            1

            • Immersion / Penetration Probe

          • Immersion / Penetration Probe
            Waterproof NTC immersion/penetration probe
            Waterproof NTC immersion/penetration probe
              Product no.:
              0613 1212
              $ 129.00
              1
            • Immersion / Penetration Probe
              No picture available
              testostor 175-1, mini temperature data logger, incl. magnetic start function, robust industrial penetration probe 1.5 m, handles, protection case PP (IP53), battery
                Product no.:
                0635 0134

                • NTC temperature probes

              • NTC temperature probes
                Temperature probe
                Penetration probe NTC with ribbon cable,
                cable length 2 m/6.5 ft., IP 54
                  Product no.:
                  0572 1001
                  $ 115.00
                  1
                • NTC temperature probes
                  0610 1725
                  Accurate imm./pen. probe, 19.7 ft. cable, IP 67
                    Product no.:
                    0610 1725
                    $ 141.00
                    1
                  • NTC temperature probes
                    Accurate immersion/penetration probe, cable: 1.5 m long
                    Accurate immersion/penetration probe, cable: 4.9 ft. long, IP 67
                      Product no.:
                      0628 0006
                      $ 109.00
                      1

                      • Surface probes

                    • Surface probes
                      Waterproof NTC surface probe for flat surfaces
                       Waterproof surface probe for flat surfaces
                        Product no.:
                        0613 1912
                        $ 145.00
                        1
                      • Surface probes
                        Pipe wrap probe with Velcro
                        Testo NTC Velcro Pipe Probe will allow you to properly measure Evaporator and Condensor temperatures in real time using your Testo Digital Manifold. Using the velcro pipe probes will also allow the manifold to calculate Superheat and Subcool values, ensuring that they are at a correct, optimized level, and the refrigeration system is running at maximum efficiency.
                          Product no.:
                          0613 4611
                          $ 127.50
                          1

                          • Accessories

                          Accessories

                        • Accessories
                          Connection cable
                          USB connection cable
                            Product no.:
                            0449 0047
                            $ 50.00
                            1
                          • Accessories
                            Batteries
                            Battery for testo 175 - Application range below -10 °C, Energizer L92 microcells AAA (please order 3 batteries per logger)
                              Product no.:
                              0515 0042
                              $ 22.10
                              1
                            • Accessories
                              Wall holder
                              Wall holder
                                Product no.:
                                0554 1702
                                $ 43.00
                                1

                                • Applications

                                Monitoring and documentation of the temperature in cold storage rooms

                                Many foodstuffs or medicines have to be stored within a certain cold temperature range. This may be in individual refrigerated storage rooms, but also in specialised cold storage warehouses or high bay cold store warehouses. The temperature has to be documented in all of these refrigerated facilities, as strict regulations apply to quality management both in the food processing and medicine industries.
                                Data loggers are usually placed at the 'Critical Control Points' (CCPs) of a cold storage room to enable any fluctuations in temperature to be detected and appropriate action to be taken. Critical places include doors or passages into other temperature zones within a warehouse.

                                Monitoring the temperature in frozen food storage areas

                                There are many facilities where (deep) frozen foods need to be stored. These range from individual freezer rooms at small food manufacturers (e.g. butchers), restaurants and supermarkets, freezer rooms in the food processing industry, right through to specialised cold storage warehouses/high bay freezer warehouses. In all of these facilities, the temperature has to be documented continuously. In Europe, only temperature recording devices that comply with EN 12830 are allowed to be used.

                                Data loggers are typically used to measure the air temperature in these kinds of storage facilities. The measuring instrument is positioned within the freezer room at the critical places where possible, such as by doors or refrigeration units, where it records temperature data at specified intervals (typically: every 15 minutes).
                                With the aid of special software, the recorded data can consequently be analysed and stored.

                                Monitoring and documentation of storage temperatures

                                The proper observance of storage temperatures is an important prerequisite for the quality control of many products; e.g. in the area of foodstuffs and pharmaceutical products.
                                Data loggers are usually used for this purpose. They monitor and document the course of ambient temperature automatically, thereby contributing significantly to verifying that product quality is being maintained.
                                The direct display of violations of limit values allows fluctuations in temperature to be responded to fast. With the aid of the configuration and read out software, custom measurement configurations can also be made and recorded measurement data can be both analysed and stored.

                                Monitoring and documentation of transit temperatures

                                The smooth recording and documentation of measurement data plays a significant role for all products that are sensitive to temperature fluctuations, or which need to be stored in a predesignated area.

                                The wrong temperature conditions during transportation can result in major losses in quality right through to a complete loss of value for the monitored products.

                                With the aid of a data logger, goods in transit can be monitored to make sure specified temperature zones are being observed; this can then be read out, analysed and stored using special software.
