    Thermocouple with T/C adapter, flexible, 60 in. long, fibre ... - Thermocouple, flexible, 60 in. long, fibre glass

    0602 0645

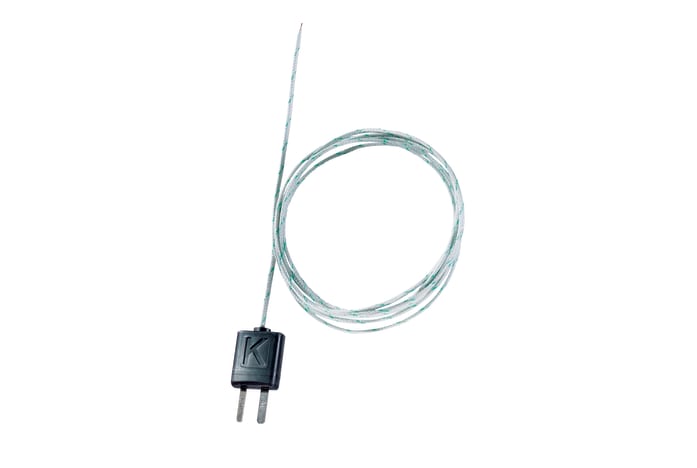

    Thermocouple with TC adapter, flexible, length 1500 mm
    $ 52.00
    1
  1. Thermoelectric couple type K with TC plug
  2. Heatproof to +400°C due to the glass fibre insulation
  3. Length 1500 mm (flexible)
  4. Thermocouple with T/C adapter, flexible, 60 in. long, fibre glass, T/C Type K

    The thermoelectric couple is ideal for fast and easy measurement of the air temperature. The flexible thermocouple wire can for instance be laid through drill holes, gaps or door seals.

    Use the flexible thermoelectric couple with glass fibre insulation, for example to measure climate cabinets, hardening or drying ovens.

    Flexible thermoelectric couple (TC type K temperature sensor) with glass fibre insulation (cable length 1500 mm).

    Temperature - Type K TC

    Measuring range
    -58.0° to 752.0 °F / -50 to +400 °C
    Accuracy
    Class 2 ¹⁾
    Reaction time
    5 sec
    1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

    General technical data

    Weight
    0,1 oz. / 30 g
    Product colour
    silver; Black
    Diameter probe shaft
    0.059 in. / 1.5 mm
    Housing
    glass fibre
    Length probe shaft
    59.055 in. / 1,500 mm
