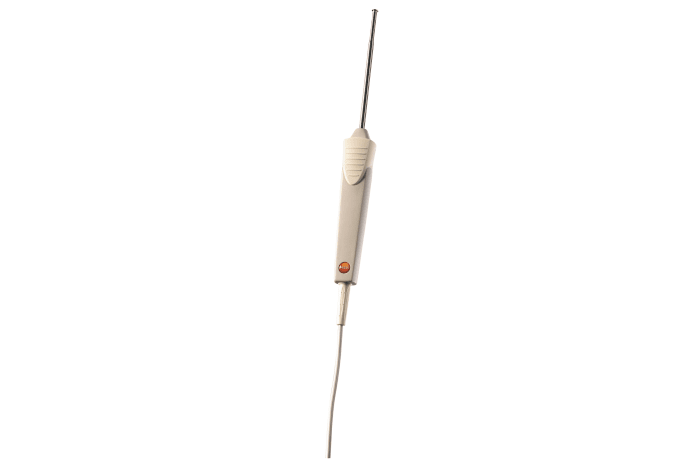

    Waterproof surface probe with widened measurement tip for fl... - with wider measuring tip

    0603 1993
  1. Waterproof
  2. Thermocouple type T
  3. Measuring range: -50 to +350°C
  4. Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type T

    1 x waterproof surface probe (TC type T) with fixed cable (cable length 1.2 m).

    General technical data

    Weight
    3.95 oz. / 112 g
    Dimensions
    51 in. / 1300 mm
    Length probe shaft tip
    1.969 in. / 50 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.236 in. / 6 mm
    Cable length
    3.773 ft. / 1.15 m
    Fixed cable
    yes
    Protection class
    IP65
    Housing
    ABS / TPE / PUR
    Length probe shaft
    4.528 in. / 115 mm
    Product colour
    white; silver

    Temperature - TC Type T (Cu-CuNi)

    Measuring range
    -58.0° to 662.0 °F / -50 to +350 °C
    Accuracy
    ±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)
    Class 1 (Remaining Range) ¹⁾
    Reaction time
    30 sec
    1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).
