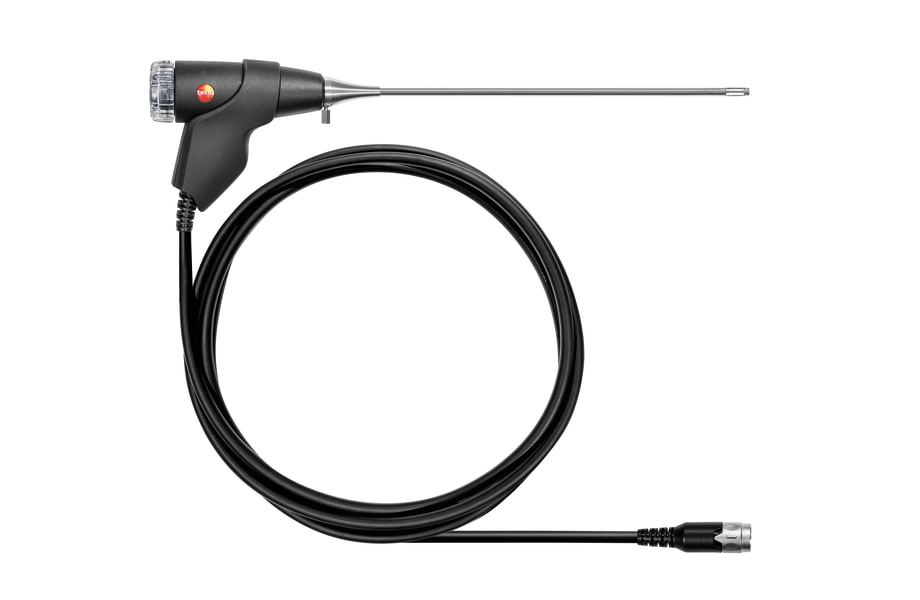

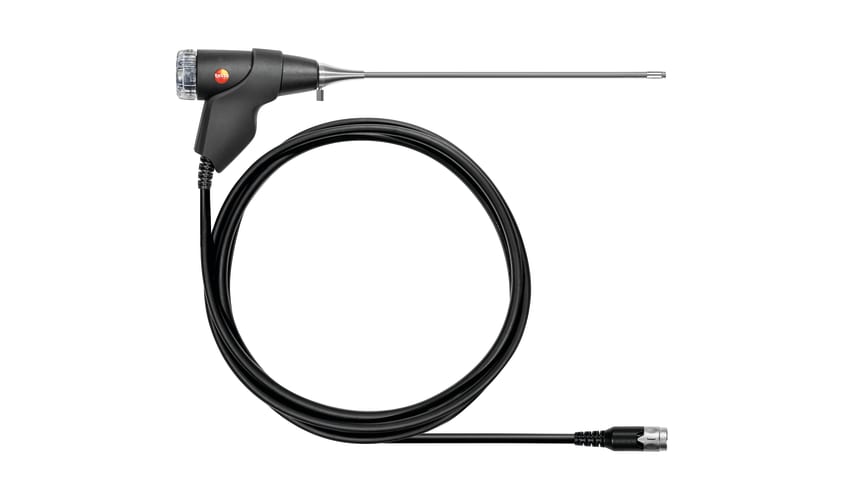

    2. 12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose

    12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose - 300 mm, Ø 6 mm, Tmax 500 °C

    0600 9741
    $ 248.20
    1
  1. Easy probe shaft replacement via quick-change click system
  2. Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
  3. Integrated dirt filter protects instrument and sensors
  4. Integrated thermocouple probe for temperature measurements up to 932 °F
    5. This 12" modular flue gas probe has a 1/4" diameter, Tmax = 932 °F, and 4.9' hose.
    This TÜV-tested modular flue gas probe with a 12" long probe shaft features a quick-change click system on the handle, which enables easy replacement of the probe shaft.  The thermocouple is NiCr-Ni, which is integrated in the probe shaft, enabling temperature measurements up to 932 °F.  The flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.  In addition, a dirt filter protects the instrument and its sensors from contamination.

    12" modular flue gas probe, including dirt filter, cone for attachment, NiCr-Ni thermocouple with Tmax = 932 °F, and 4.9' hose

    General technical data

    Diameter probe shaft
    0.236 in. / 6 mm
    Cable length
    4.921 ft. / 1.5 m
    Length probe shaft
    11.811 in. / 300 mm
    Product colour
    Black
    Temperature maximum
    932 °F / 500 °C
    Diameter
    0.2 in. / 6 mm
    Weight
    12.84 oz. / 364 g
    Test Fußnote

    Accessories

  5. Accessories
    Spare particle filter
    Replacement particle filter (10/pkg)
      :
      0554 0040
      $ 43.35
      1
    • Accessories
      Probe stop
        :
        0554 9010
      • Accessories
        No picture available
        6 mm probe stop, PTFE, with spring clamp and handle, Tmax 200 °C
          :
          0554 3327
          $ 69.00
          1
