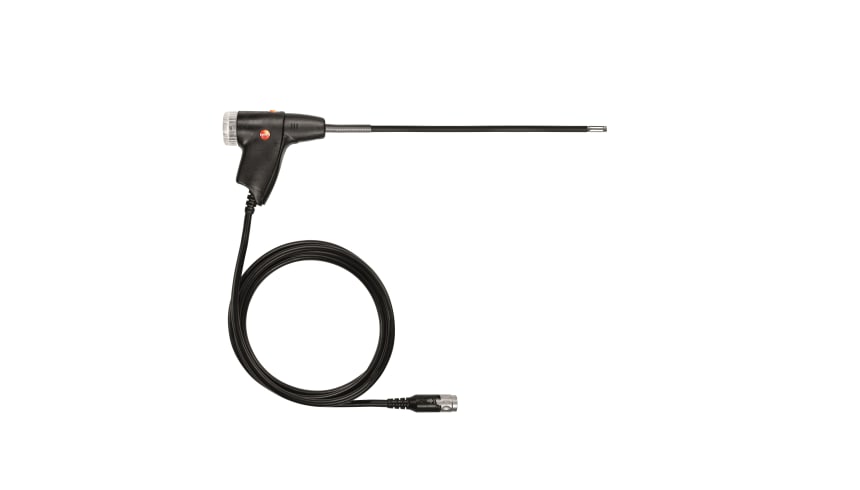

Flexible flue gas probe

0600 9770

Flexible flue gas probe

0600 9770

For flue gas measurements on heating system burners

With extremely flexible plastic probe shaft

Used for measurements at difficult-to-access measurement sites

Connectable to flue gas analyzer by bayonet fitting

Our flexible flue gas probe helps you to carry out flue gas measurements even on difficult-to-access measurement areas. Since the probe shaft is made of very flexible plastic, you can easily bend it, allowing it to be inserted into exhaust flues which are obstructed (e.g. by sloping ceilings)

In measurements on heating system burners, obstructed measurement areas can occur (e.g. due to sloping roofs, cramped basement rooms). In these cases, straight flue gas probes can only be inserted into the flue with great difficulty. With flexible flue gas probes made of metal, there is a danger that the probe shaft is over-bent, and can break.

Our flexible flue gas probe offers the ideal solution to this problem: The probe shaft is made of flexible plastic, and can thus be bent very easily without breaking. This allows you to carry out flue gas measurements without any problems, at any measurement site.

Flexible flue gas probe, connectable to the flue gas analyzer by bayonet fitting.

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)

:
0564 3002 83

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit (w/ O₂ and CO 0-4,000) with Bluetooth^® connector.

:
0564 3002 82

Next-Gen testo 300 Pro - Commercial Combustion Analyzer Kit (w/ O2 and CO 0-4,000, NO Sensor can be retrofitted) with Hard case and testo Bluetooth® Connector

:
0564 3004 92

Next-Gen testo 300 Pro - Commercial Combustion Analyzer Kit (w/ O2 and CO 0-4,000, NO Sensor can be retrofitted) with Printer, testo Bluetooth Connector, and Hard case

:
0564 3004 93

Next-Gen testo 300 Pro - Commercial / Industrial Combustion Analyzer Kit (w/ O2, CO H2 Compensated 0-30,000, and NO Sensor), with Printer, testo Bluetooth® Connector and Hard Case

:
0564 3004 96

testo 300 LongLife - Combustion analyzer (O₂, CO up to 4,000 ppm, NO)

:
0633 3004 74

testo 300 LongLife Combustion Analyzer - Commercial Combustion Analyzer with Printer (w/ O2, CO 0-4,000, and NO Sensors)

:
0564 3004 94

testo 300 Longlife - Combustion analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

:
0633 3004 83

testo 300 Pro - Combustion analyzer (O₂, CO up to 4,000 ppm, NO - can be retrofitted)

:
0633 3004 72

testo 300 Pro - Combustion Analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO)

:
0633 3004 85

testo 300 - Combustion analyzer (O₂, CO up to 4,000 ppm)

:
0633 3002 70

General technical data

Diameter probe shaft	0.354 in. / 9 mm
Cable length	7.218 ft. / 2.2 m
Length probe shaft	12.992 in. / 330 mm
Product colour	Black
Temperature maximum	356 °F / 180 °C
Weight	16.01 oz. / 454 g
briefly +200 ° C
