    Flue gas probe, modular, 2.3 ft. immersion depth, incl. prob...

    Product no. 0600 9767

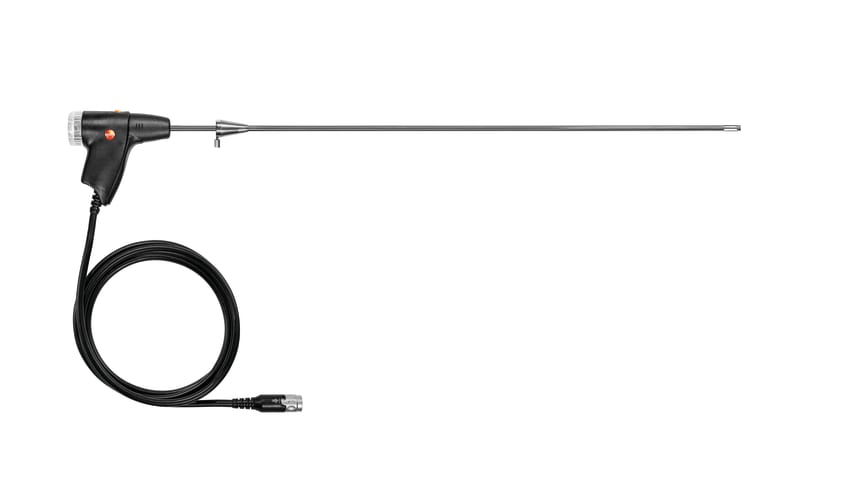

    Modular flue gas probe, 700 mm, 500 °C
    $ 917.00
    1
    Find dealer
    Ships in approximately: 17 working days
    Your advantages
  1. Easy probe shaft replacement via quick-change click system
  2. NO2/SO2 special hose (length: 2.2 m)
  3. Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
  4. Integrated thermocouple probe for temperature measurements up to 500 °C
  5. Flue gas probe, modular, 2.3 ft. immersion depth, incl. probe stop, thermocouple NiCr-Ni (TI) Tmax 932°F and hose 7 ft.

    Description

    On the modular flue gas probe with 700 mm long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500 °C. The probe is also supplied with a cone for attachment.

    Delivery Scope

    Modular flue gas probe 700 mm including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 500 °C and NO2/SO2 special hose 2.2 m.

    Technical data

    General technical data

    Weight
    22.15 oz. / 628 g
    Length probe shaft
    27.559 in. / 700 mm
    Housing
    Metal housing
    Cable length
    7.218 ft. / 2.2 m
    Diameter probe shaft
    0.315 in. / 8 mm
    Temperature maximum
    932 °F / 500 °C
    Product colour
    Black; silver

    Accessories

    Accessories

  6. Accessories
    Hose extension
    Hose extension, 9 ft. (max two extensions, plus standard hose = 25 ft. in length)
      Product no.:
      0554 1202
      $ 305.00
      1
    • Accessories
      Spare sintered filters
      Spare sintered filter (2 ea.)
        Product no.:
        0554 3372
        $ 165.00
        1
      • Accessories
        Spare particle filter
        Particle filters - pack of 10
          Product no.:
          0554 3385
          $ 33.15
          1
